EUROCOM Notebook User Manual page 119

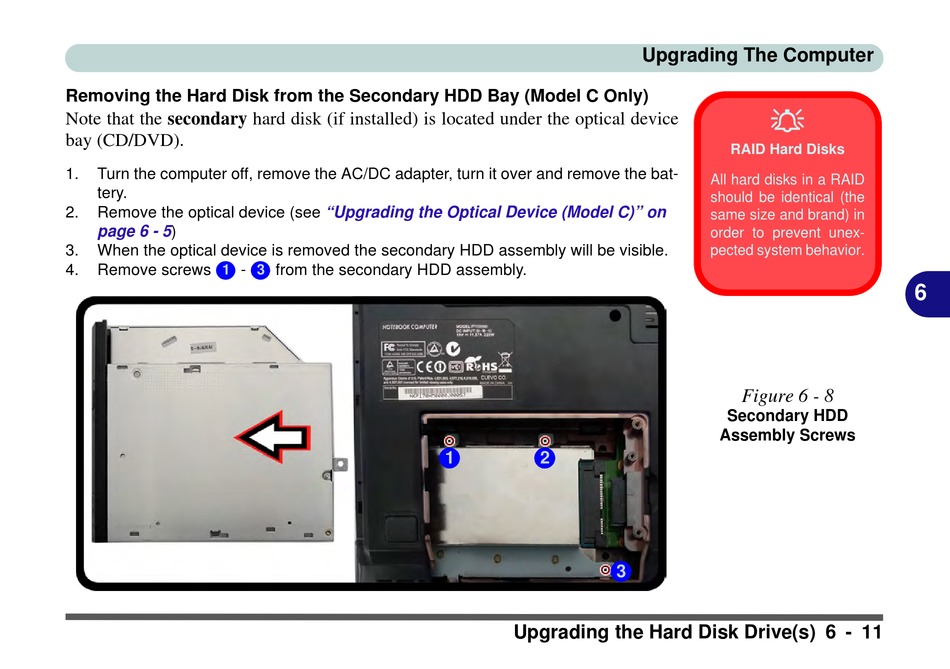

Removing the Hard Disk from the Secondary HDD Bay (Model C Only)
Note that the secondary hard disk (if installed) is located under the optical device
bay (CD/DVD).
1. Turn the computer off, remove the AC/DC adapter, turn it over and remove the bat-
tery.
2. Remove the optical device (see
page 6 - 5)
3. When the optical device is removed the secondary HDD assembly will be visible.
4. Remove screws 1 -
"Upgrading the Optical Device (Model C)" on
3 from the secondary HDD assembly.
1 2
3
Upgrading the Hard Disk Drive(s) 6 - 11
Upgrading The Computer

RAID Hard Disks
All hard disks in a RAID
should be identical (the
same size and brand) in
order to prevent unex-
pected system behavior.
Figure 6 - 8
Secondary HDD
Assembly Screws
6
