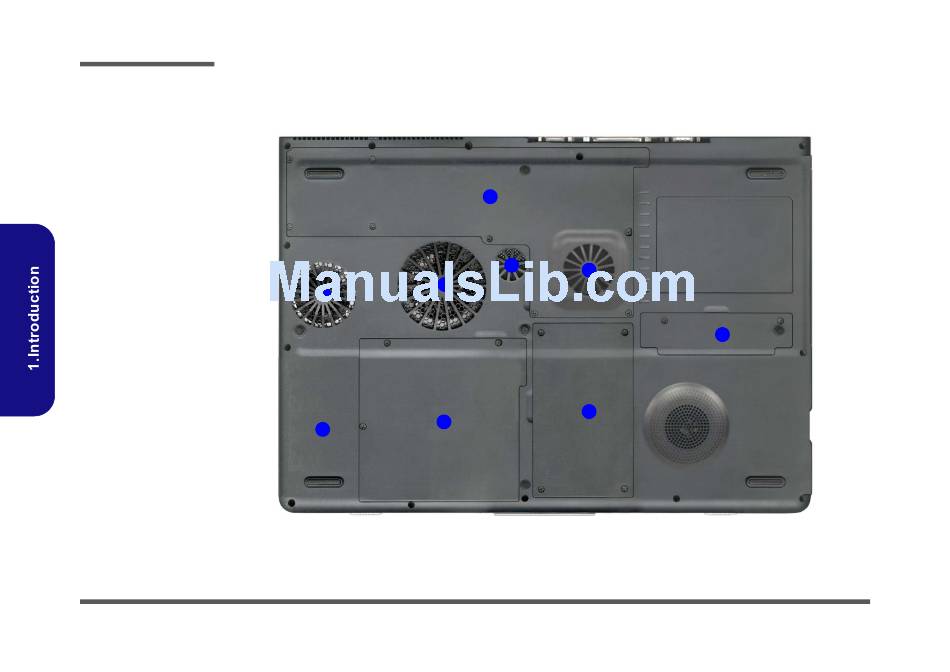

External Locator - Bottom View

Figure 6
Bottom View
1. Vent/Fan Intake
2. Battery Cover
3. Hard Disk Cover
4. Bluetooth Module
Cover
5. CPU & Memory
Socket Cover
6. Model B only -
Optional Module
Cover (Sub Woofer
or TV Tuner)
Note : The RAM and
optional Wireless
LAN module are lo-
cated under the CPU
Heatsink Cover.
1 - 8 External Locator - Bottom View
5
1
1
2
6
1
1
3
4
