Disassembly

Removing the TouchPad

1. Turn off the computer and remove the battery
(page 2 -
and center cover
2. Remove screws
3. Disconnect cable
4. Separate the touchpad

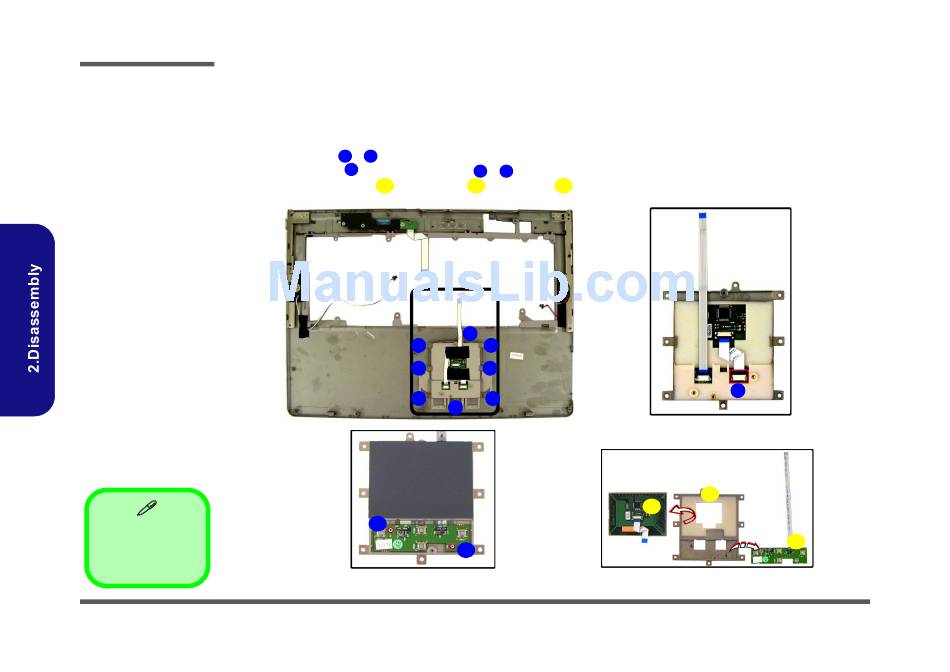

Figure 15
TouchPad Removal
a. Remove the screws.
b. Lift the TouchPad as-
sembly of the top case
and disconnect the ca-
ble.
c. Remove the screws.
d. Separate the TouchPad
module, Click Board and
holder.
12. TouchPad Module
13. Click Board
14. Holder
• 10 Screws
2 - 22 Removing the TouchPad
12), Bluetooth module (page 2 -
(page 2 - 18), LCD assembly
- from the touchpad and click board assembly, and lift the assembly off the top case.
