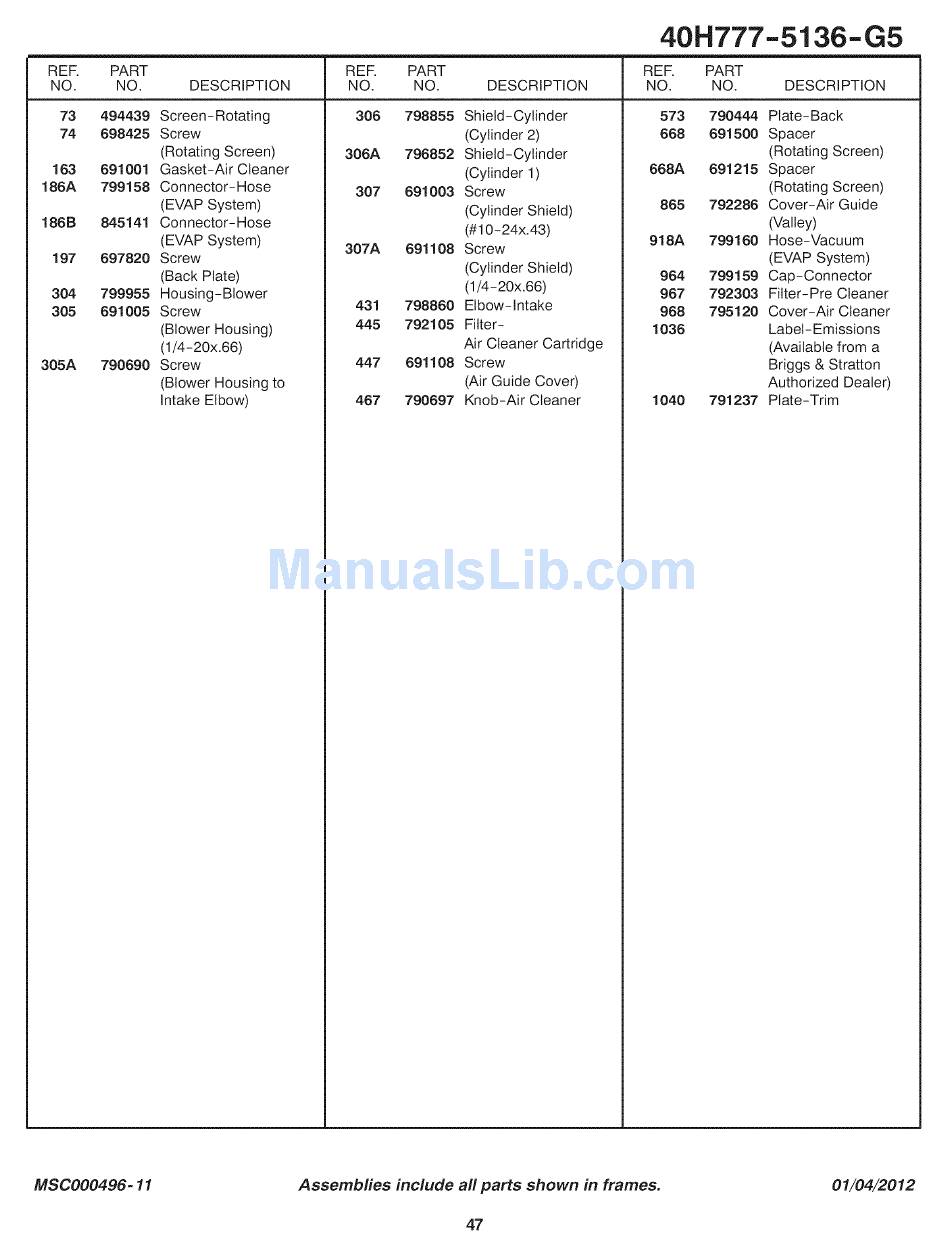

40H777-5136-G5
RER
NO.
DESCRIPTION
DESCRIPTION
DESCRIPTION
PART
NO.
73
494439
Screen-Rotating
74
698425
Screw
(Rotating Screen)
163
691001
Gasket-Air
Cleaner
186A
799158
Connector-Hose
(EVAP System)
186B
845141
Connector-Hose
(EVAP System)
197
697820
Screw
(Back Plate)
304
799955
Housing-Blower
305
691005
Screw
(Blower Housing)
(1/4-20x.66)
305A
790690
Screw
(Blower Housing to
intake Elbow)
REF.
PART
NO.
NO.
306
798855
306A
796852
307
691003
307A
691108
Shield-Cylinder
(Cylinder 2)
Shield-Cylinder
(Cylinder 1)
Screw
(Cylinder Shield)
(#10-24x.43)
Screw
RER
NO.
573
668
668A
865
918A
PART
NO.
790444
691500
691215
792286
799160
(Cylinder Shield)
(1/4-20x.66)
431
798860
Elbow-Intake
445
792105
Filter-
Air Cleaner Cartridge
447
691108 Screw
(Air Guide Cover)
467
790697
Knob-Air Cleaner
964
967
968
1036
1040
799159
792303
795120
791237
Plate-Back
Spacer
(Rotating Screen)
Spacer
(Rotating Screen)
Cover-Air
Guide
(Valley)
Hose-Vacuum
(EVAP System)
Cap-Connector
Fitter-Pre
Cleaner
Cover-Air
Cleaner
Label-Emissions
(Available from a
Briggs & Stratton
Authorized Dealer)
Plate-Trim
MSC000496-11
Assembfies
include all parts shown in frames.
