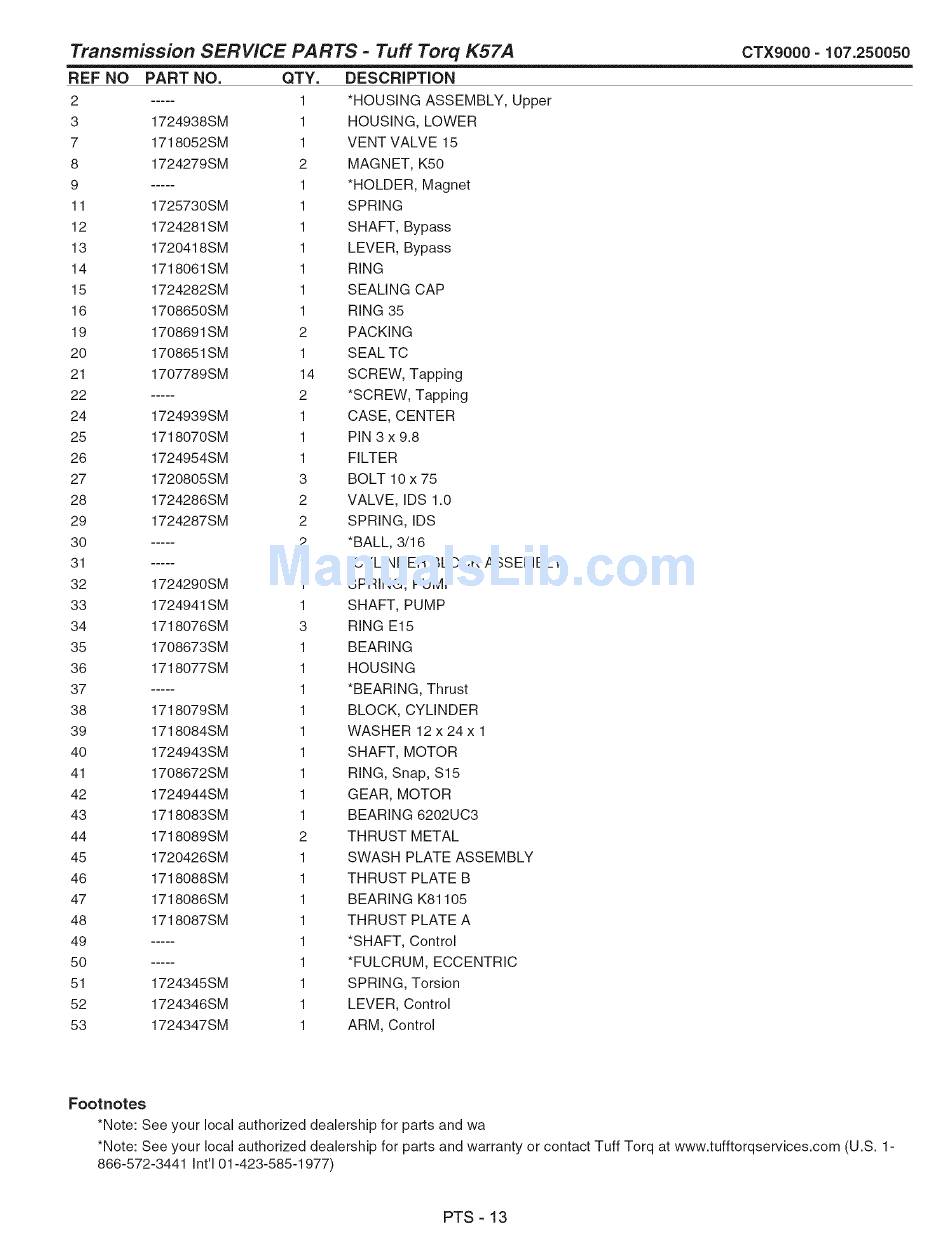

Transmission
SERVICE
PARTS
- Tuff Torq K57A
REF NO
PART
NO.
QTY.
DESCRiPTiON
2
.....
1
*HOUSING ASSEMBLY,
Upper
3
1724938SM
1
HOUSING, LOWER
7
1718052SM
1
VENT VALVE 15
8
1724279SM
2
MAGNET, K50
9
.....
1
*HOLDER, Magnet
11
1725730SM
1
SPRING
12
1724281SM
1
SHAFT, Bypass
13
1720418SM
1
LEVER, Bypass
14
1718061SM
1
RING
15
1724282SM
1
SEALING CAP
16
1708650SM
1
RING 35
19
1708691SM
2
PACKING
20
1708651SM
1
SEAL TC
21
1707789SM
14
SCREW, Tapping
22
.....
2
*SCREW, Tapping
24
1724939SM
1
CASE, CENTER
25
1718070SM
1
PIN 3 x 9.8
26
1724954SM
1
FILTER
27
1720805SM
3
BOLT 10 x 75
28
1724286SM
2
VALVE, IDS 1.0
29
1724287SM
2
SPRING, IDS
30
.....
2
*BALL, 3/16
31
.....
1
*CYLINDER BLOCK ASSEMBLY
32
1724290SM
1
SPRING, PUMP
33
1724941SM
1
SHAFT, PUMP
34
1718076SM
3
RING E15
35
1708673SM
1
BEARING
36
1718077SM
1
HOUSING
37
.....
1
*BEARING, Thrust
38
1718079SM
1
BLOCK, CYLINDER
39
1718084SM
1
WASHER 12 x 24 x 1
40
1724943SM
1
SHAFT, MOTOR
41
1708672SM
1
RING, Snap, S15
42
1724944SM
1
GEAR, MOTOR
43
1718083SM
1
BEARING 6202UC3
44
1718089SM
2
THRUST METAL
45
1720426SM
1
SWASH PLATE ASSEMBLY
46
1718088SM
1
THRUST PLATE B
47
1718086SM
1
BEARING K81105
48
1718087SM
1
THRUST PLATE A
49
.....
1
*SHAFT, Control
50
.....
1
*FULCRUM, ECCENTRIC
51
1724345SM
1
SPRING, Torsion
52
1724346SM
1
LEVER, Control
53
1724347SM
1
ARM, Control
CTX9000-107.250050
Footnotes
*Note: See your local authorized dealership for parts and wa
*Note: See your local authorized dealership for parts and warranty or contact Tuff Torq at www.tufftorqservices.com
(U.S. 1-
866-572-3441
Int'l 01-423-585-1977)
PTS - 13
