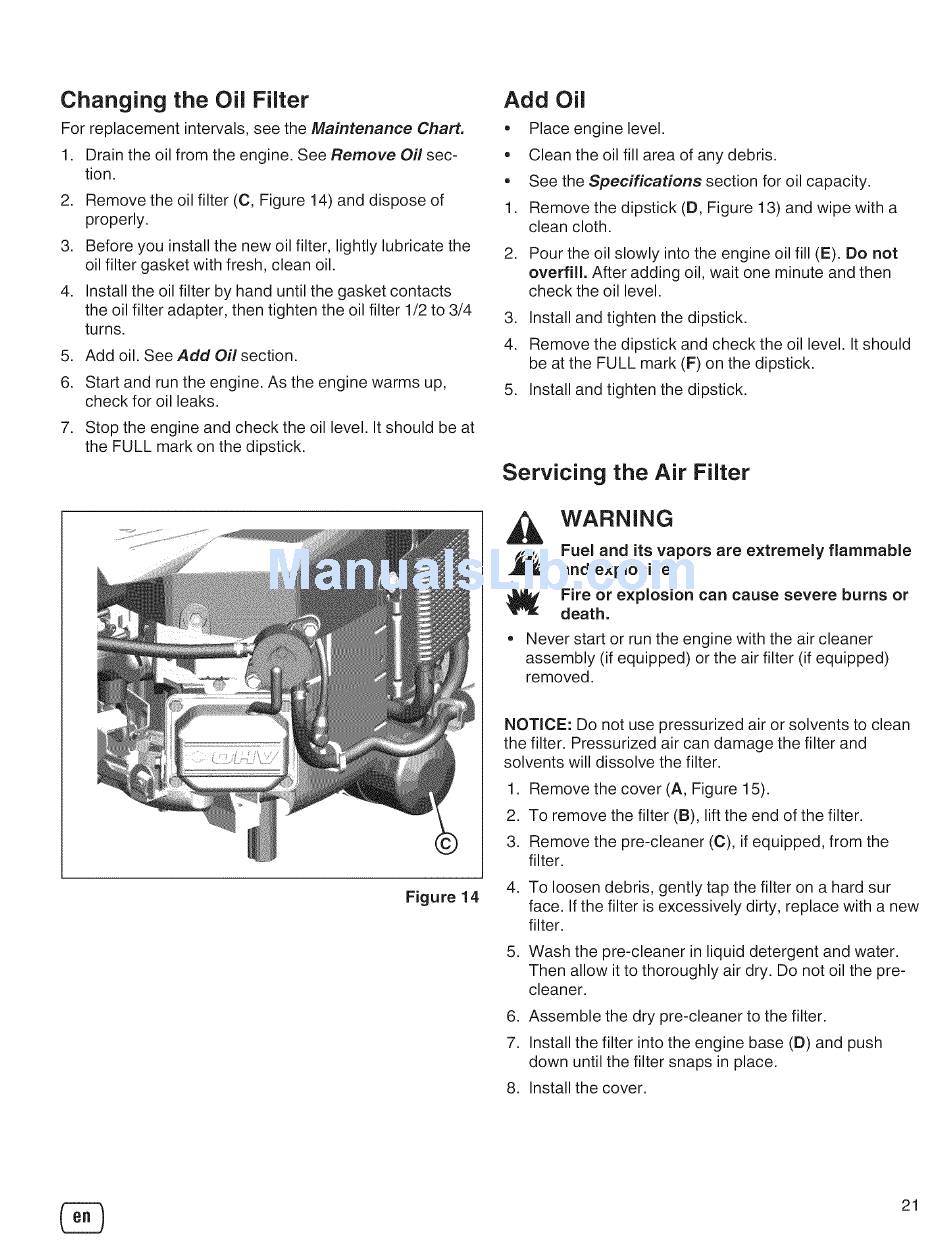

Craftsman CTX 9000 Operator's Manual page 21

22 gross hp briggs & stratton with 46" mower
Hide thumbs

Advertisement

Changing
the Oil Filter
For replacement intervals, see the Maintenance
Chart.
1. Drain the oil from the engine. See Remove
Oil sec-
tion.
2. Remove the oil filter (C, Figure 14) and dispose of
properly.
3. Before you install the new oil filter, lightly lubricate the
oil filter gasket with fresh, clean oil.
4. Install the oil filter by hand until the gasket contacts
the oil filter adapter, then tighten the oil filter 1/2 to 3/4
turns.
5. Add oil. See Add Oilsection.
6. Start and run the engine. As the engine warms up,
check for oil leaks.
7. Stop the engine and check the oil level. It should be at
the FULL mark on the dipstick.
Add Oil
Place engine level.
Clean the oil fill area of any debris.
See the Specifications
section for oil capacity.
1. Remove the dipstick (D, Figure 13) and wipe with a
clean cloth.
2. Pour the oil slowly into the engine oil fill (E). Do not
overfill.
After adding oil, wait one minute and then
check the oil level.
3. Install and tighten the dipstick.
4. Remove the dipstick and check the oil level. It should
be at the FULL mark (F) on the dipstick.
5. Install and tighten the dipstick.
Servicing
the Air Filter
WARNING
Fuel and its vapors are extremely
flammable
and explosive.
Fire or explosion
can cause severe burns or
death.
° Never start or run the engine with the air cleaner
assembly (if equipped) or the air filter (if equipped)
removed.
Figure 14
NOTICE: Do not use pressurized air or solvents to clean
the filter. Pressurized air can damage the filter and
solvents will dissolve the filter.
1. Remove the cover (A, Figure 15).
2. To remove the filter (B), lift the end of the filter.
3. Remove the pre-cleaner (C), if equipped, from the
filter.
4. To loosen debris, gently tap the filter on a hard sur
face. If the filter is excessively dirty, replace with a new
filter.
5. Wash the pre-cleaner in liquid detergent and water.
Then allow it to thoroughly air dry. Do not oil the pre-
cleaner.
6. Assemble the dry pre-cleaner to the filter.
7. Install the filter into the engine base (D) and push
down until the filter snaps in place.
8. Install the cover.
21
