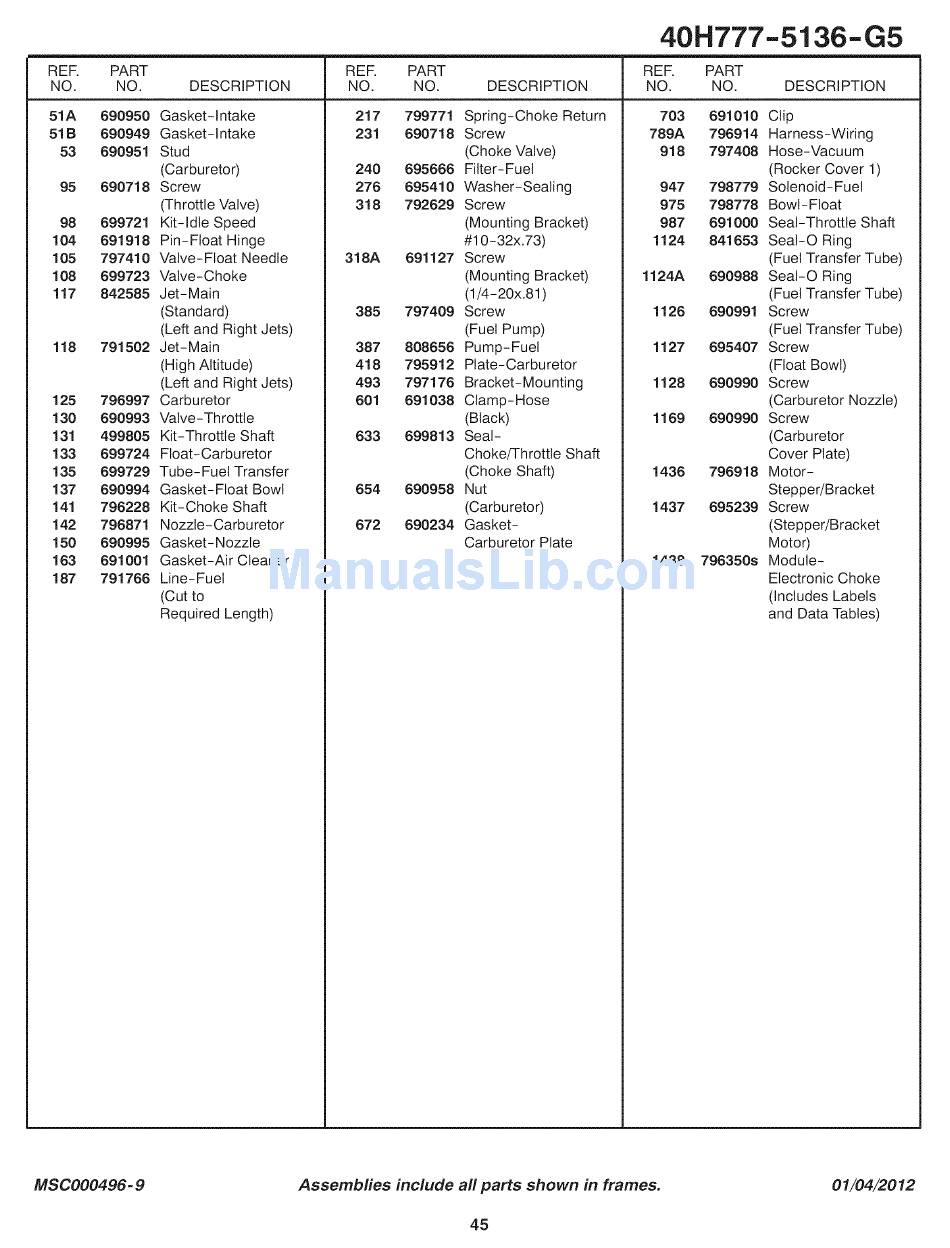

Craftsman CTX 9000 Operator's Manual page 79

22 gross hp briggs & stratton with 46" mower
Hide thumbs

Advertisement

40H777-5136-G5
REF.
PART
REF.
PART
REF.
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
51A
690950
Gasket-intake
51B
690949
Gasket-Intake
53
690951
Stud
(Carburetor)
95
690718
Screw
(Throttle Valve)
98
699721
Kit-idle
Speed
104
691918
Pin-Float
Hinge
105
797410
Valve-Float
Needle
108
699723
Valve-Choke
117
842585
Jet-Main
(Standard)
(Left and Right Jets)
118
791502
Jet-Main
(High Altitude)
(Left and Right Jets)
125
796997
Carburetor
130
690993
Valve-Throttle
131
499805
Kit-Throttle
Shaft
133
699724
Float-Carburetor
135
699729
Tube-Fuel
Transfer
137
690994
Gasket-Float
Bowl
141
796228
Kit-Choke
Shaft
142
796871
Nozzle-Carburetor
150
690995
Gasket-Nozzle
163
691001
Gasket-Air
Cleaner
187
791766
Line-Fuel
(Cut to
Required Length)
217
799771
Spring-Choke
Return
231
690718
Screw
(Choke Valve)
240
695666
Filter-Fuel
276
695410
Washer-Sealing
318
792629
Screw
(Mounting Bracket)
#10-32x.73)
318A
691127 Screw
(Mounting Bracket)
(1/4-20x.81)
385
797409
Screw
(Fuel Pump)
387
808656
Pump-Fuel
418
795912
Plate-Carburetor
493
797176
Bracket-Mounting
601
691038
Clamp-Hose
(Black)
633
699813
Seal-
Choke/Throttle
Shaft
(Choke Shaft)
654
690958
Nut
(Carburetor)
672
690234
Gasket-
Carburetor Plate
703
691010
Clip
789A
796914
Harness-Wiring
918
797408
Hose-Vacuum
(Rocker Cover 1)
947
798779
Solenoid-Fuel
975
798778
Bowl-Float
987
691000
Seal-Throttle
Shaft
1124
841653
SeaI-O Ring
(Fuel Transfer Tube)
1124A
690988
SeaI-O Ring
(Fuel Transfer Tube)
1126
690991
Screw
(Fuel Transfer Tube)
1127
695407
Screw
(Float Bowl)
1128
690990
Screw
(Carburetor Nozzle)
1169
690990
Screw
(Carburetor
Cover Plate)
1436
796918
Motor-
Stepper/Bracket
1437
695239
Screw
(Stepper/Bracket
Motor)
1438
796350s
Module-
Electronic Choke
(Includes Labels
and Data Tables)
MSC000496-9
Assemblies
include aft parts shown in frames.
01/04/2012
