System Status Icon

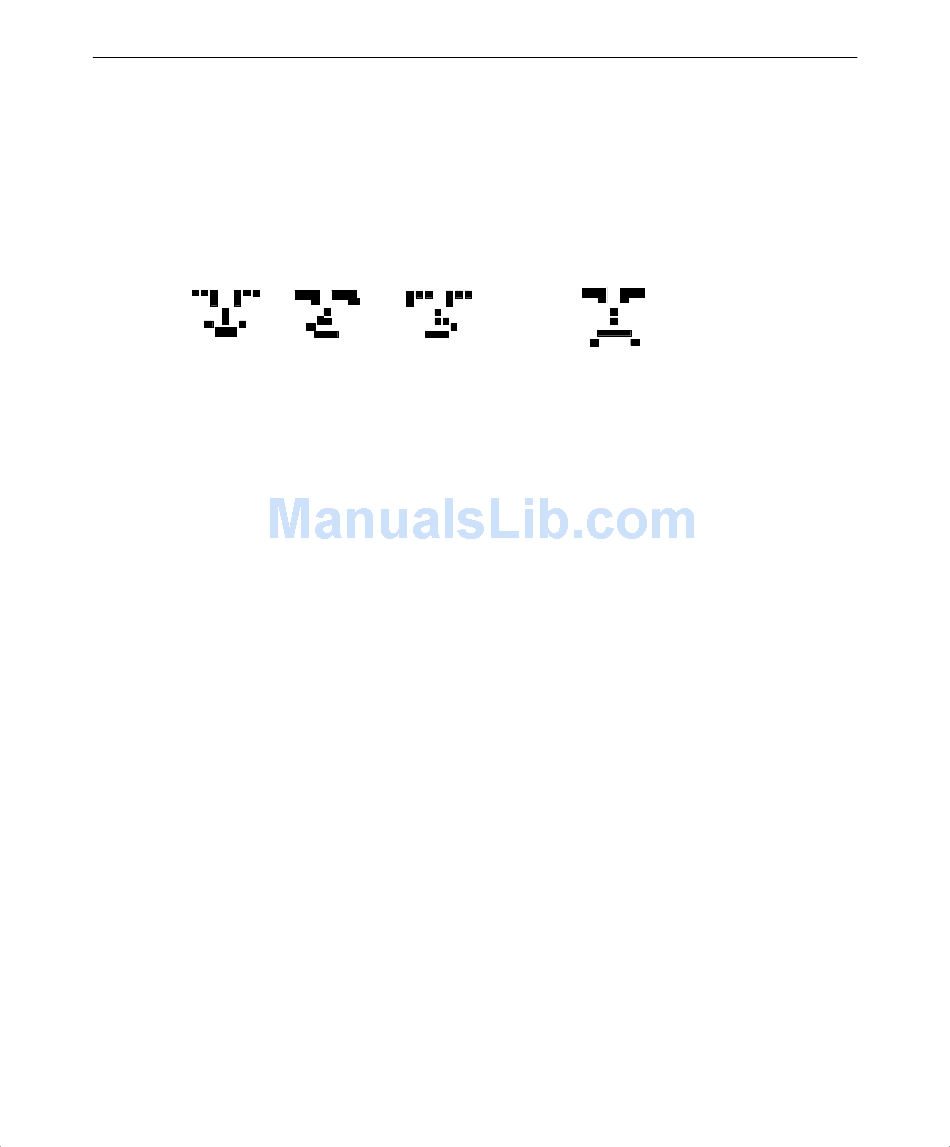

An animated System Status icon appears in the ICP approximately 30 seconds after a static
display and indicates system status. It displays a "happy face" and looks left and right when
all systems operate normally. If an abnormality occurs within the system, the icon changes
to a "sad face" requesting your attention.
Systems
Normal

Hardware Menu

The Hardware menu displays the following options:
u

Component Status

u
Configuration Info
u
POST Results
u
Internal Temp
Component Status
This option gives a list and current status of the power supplies and fans installed in the
InterRAID-8e cabinet. The following is an example display:
PWR SPLY 1...OK
PWR SPLY 2...OK
PWR SPLY 3...MISSING
FAN 1........FAILED
FAN 2........OK
FAN SPEED....93%
BUS CONFIG...SINGLE
If an error occurs during startup, the alarm sounds a continuous tone. You can display the
Component Status menu to verify a suspected failed component. Component status is
indicated by OK, Missing, or Failed. If you receive a hardware error, display the ICP Main
menu and choose Hardware menu, then select Component Status and use the up or down
arrow keys to view a complete list of the components.
Systems
Abnormal
