22
NOTE If any of the listed parts are missing or damaged, call the Customer Response Center at
1-800-633-7248.

Installing the MegaRAID Controller

If the InterRAID-8e option includes a MegaRAID controller in the shipping carton, follow
the instructions in this section to install the controller into the system. Otherwise, go to
"Installing the Cabinet into a Rack." The following table shows information about the rack-
mount systems that allow the InterRAID-8e option.
System
TDZ-612 RAX
RenderRAX
InterServe 6x5R
InterServe 8400,
InterServe 650/660
StudioZ RAX
InterServe 8000
NOTE The systems with "Not applicable" for primary controller slot use a fixed disk drive as the boot
drive. All installed MegaRAID controllers are treated as secondary.

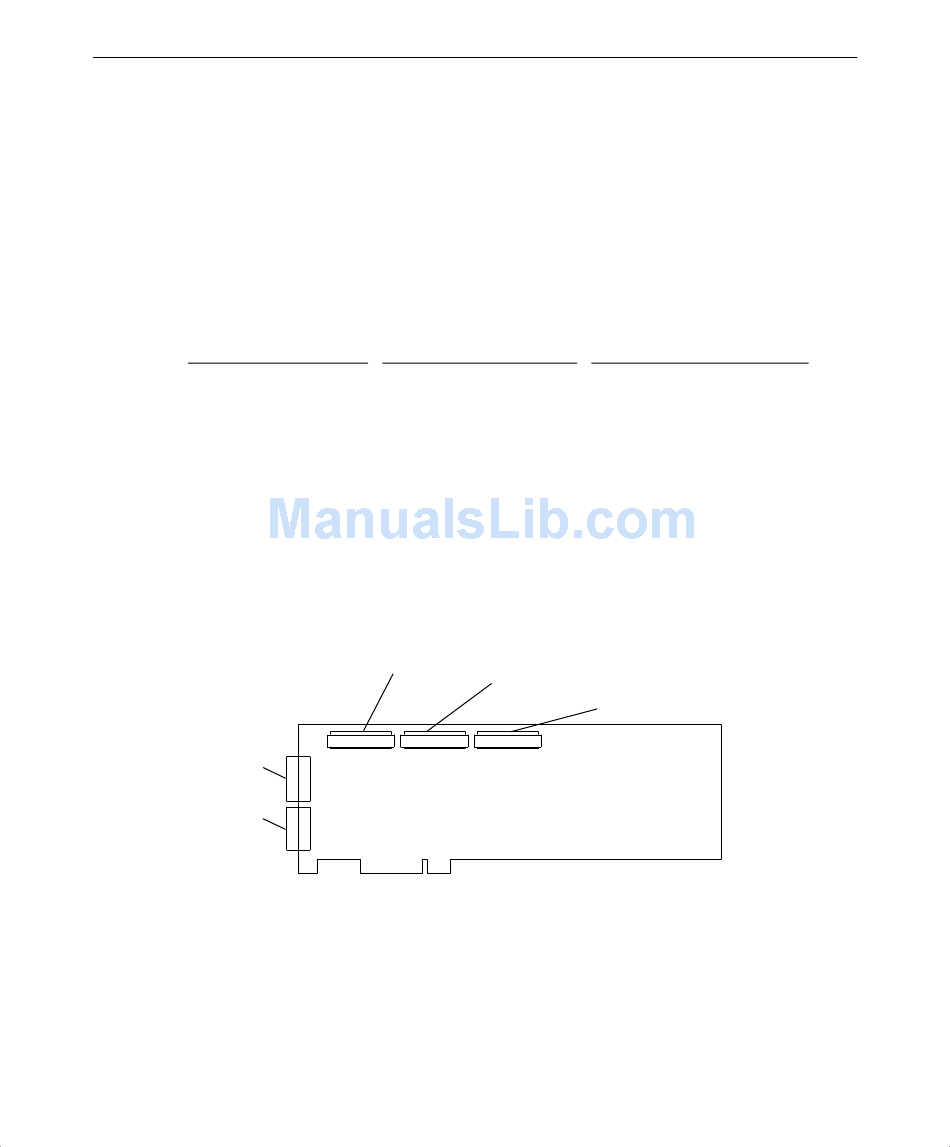

The following figure shows the MegaRAID controller and Channels 0, 1, and 2.
Channel 0
(External)
Channel 1
(External)
NOTE For those systems using an internal channel for the internal RAID section, you cannot use the
external channel with the same number. For example, the InterServe 8000 uses Channel 0
and Channel 1 for the internal RAID section. Therefore, external Channel 0 and Channel 1 is
not available for connection.
Primary Controller Slot
Not applicable
Not applicable
Not applicable
PCI Slot 4
Not applicable
PCI slot 4
Channel 0
Channel 1
Secondary Controller Slots
Any available PCI
Any available PCI
Any available PCI
PCI Slots 5 through 8
PCI Slots 4 though 7
PCI slots 5 through 8
Channel 2
