94
u
An Optimal RAID 0 logical drive can be converted to an Optimal RAID 1, RAID 3, or
RAID 5 logical drive by adding one or more physical drives.
u
An Optimal RAID 1 logical drive can be converted to an Optimal RAID 0, RAID 3, or
RAID 5 logical drive.
NOTE You can also convert between RAID 3 and RAID 5 by adding additional physical drives to the
logical drive.
To add a drive:
1. From MegaRAID Power Console, place the cursor on the logical drive where the
physical drive (in Ready state) is to be added, and click the right mouse button.
2. Select Advanced Menu from the Logical Drive x menu.

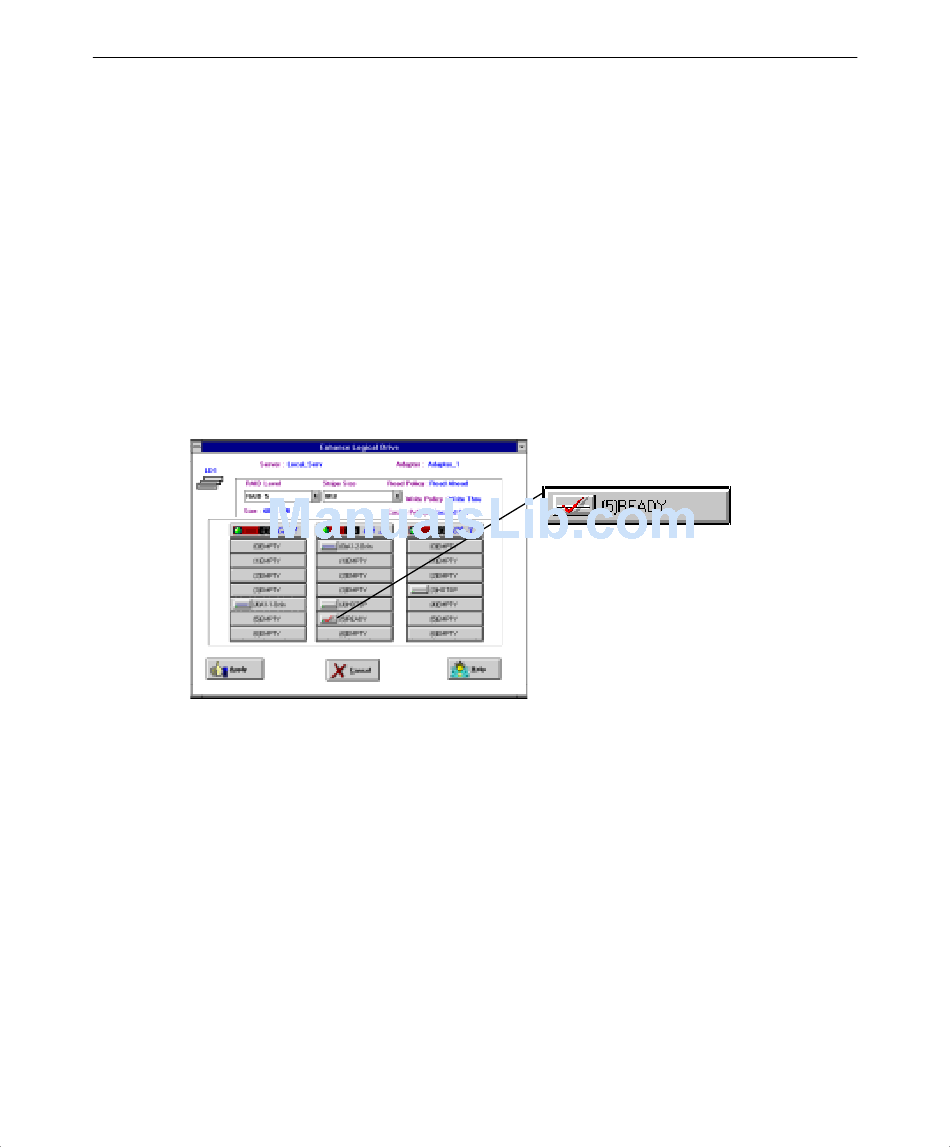

3. Select Add Drive. The following dialog displays:
4. Select the physical drive (in Ready state) to be added using the left button. A check
appears on the drive.
5. Select Apply. The Reconstructing Dialog displays. You can click on the Info button to
display detailed information about the reconstruction operation being performed.
6. Review the changes that have been made and select OK when finished.

Configuring a Hotspare

Hotspares are physical drives that are powered up with the RAID drives and usually are
placed in a standby, or hotspare, state. The drive to be made a hotspare must have the same
or greater capacity than the other drives in the RAID array.
NOTE A 4 GB drive will not function correctly as a hotspare for a 9 GB drive. Different sizes are
allowed in a pack, but all drives in a stripe should be the same size.
