InterServe 80 Systems

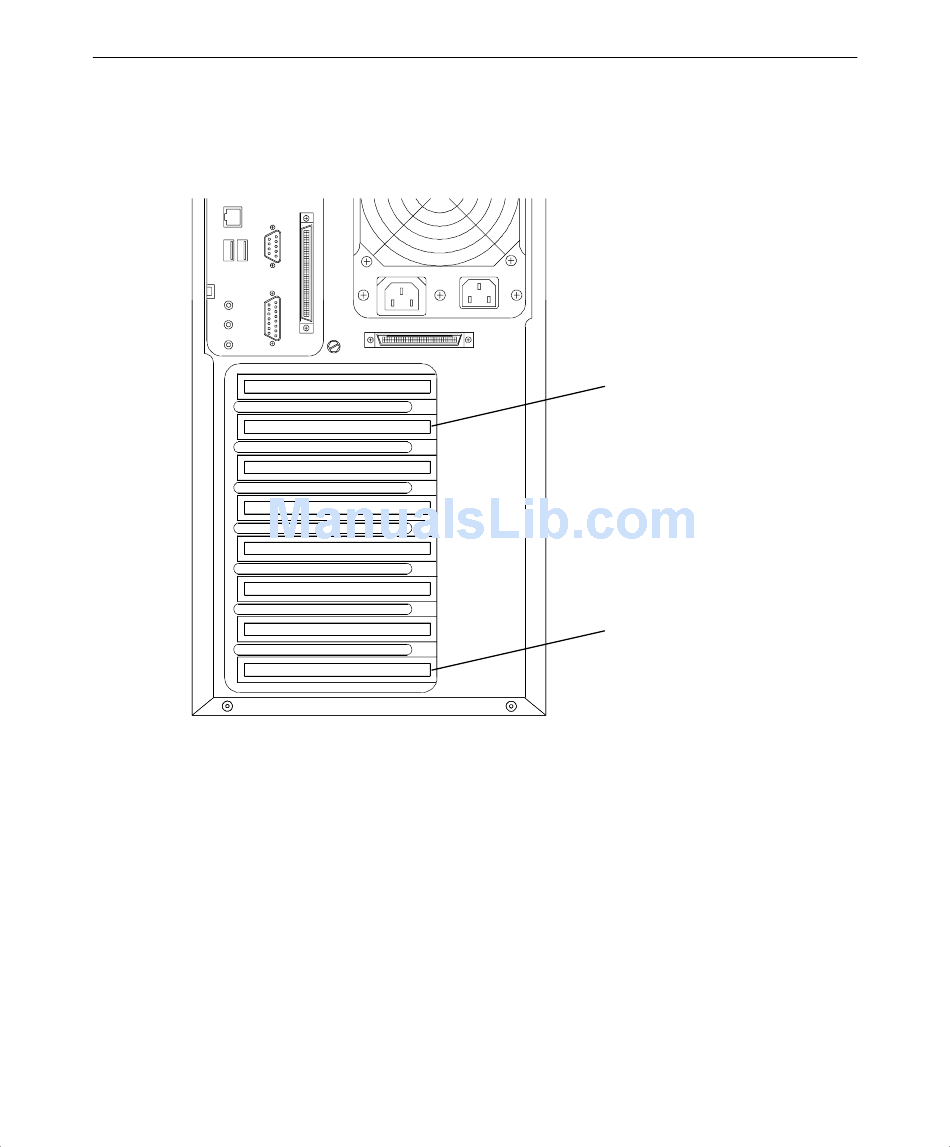

The following shows the I/O panel on the back of the InterServe 80 systems.
To install the Two-channel MegaRAID controller:
1. Ensure the system is powered off.
2. Remove the top cover and left side panel from the system.
3. Remove the screw and blanking plate from an available PCI slot.
4. Install the MegaRAID controller. Press firmly and evenly over the PCI connector to
ensure the board seats completely into the slot.
5. Close the base unit.
6. Set up the disk array cabinet as described in "Setting up the Cabinet."
PCI Slot 1
PCI Slot 7
