CAUTION Pack the RAID disk drives in the Intergraph multi-pack drive box for transportation. If the
drives are not packed into this box, they could be damaged during shipment.
If you do not have an Intergraph multi-pack box, call the Intergraph Order Desk at
1-800-543-1054.

Repackage Disk Drives and Cabinet

Use the original Intergraph packaging in which your equipment was shipped. The disk drive
box fits inside the shipping carton.
CAUTION Pack all equipment in the original boxes for transportation to avoid damage during shipment.
To repack the equipment:
1. Power down the disk array cabinet and wait for the RAID disk drives to completely stop
spinning. The disk drives could be damaged if removed while still spinning.
2. Remove all of the RAID disk drives from the cabinet. Handle the disk drives carefully
and by the edges only.
3. Place each disk drive into an antistatic bag and seal the bag.
4. Place one RAID disk drive into each compartment in the foam. If packing less than four
drives, place them in the foam to distribute the weight evenly. See the following figure.

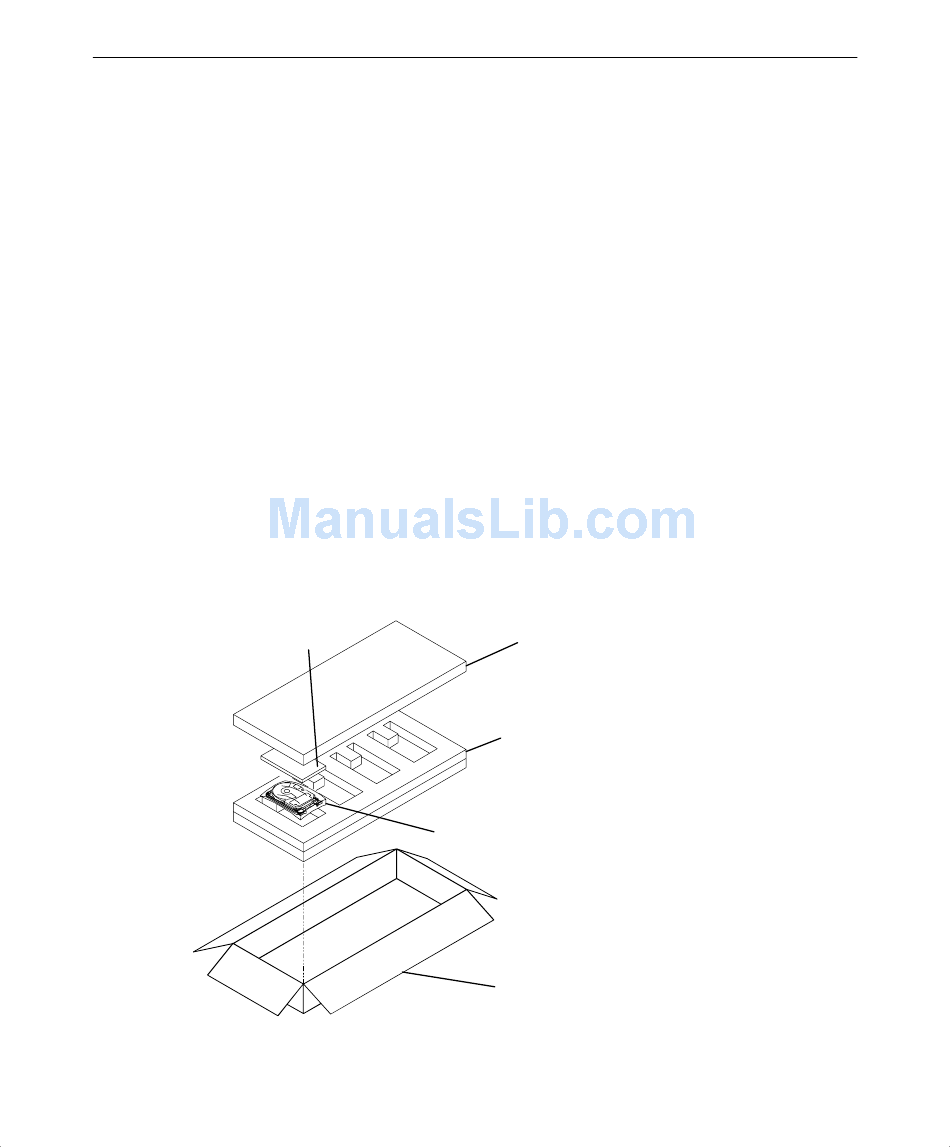

Drive Filler (for
1.0-inch high
drives only)
NOTE For 1.0-inch high drives, place a drive filler over each drive.
Top Foam Layer
Drive Foam
(holds up to four drives)
RAID Disk Drive (in antistatic bag)
Drive Box
5
