TDZ-610 and InterServe 6x5 Systems

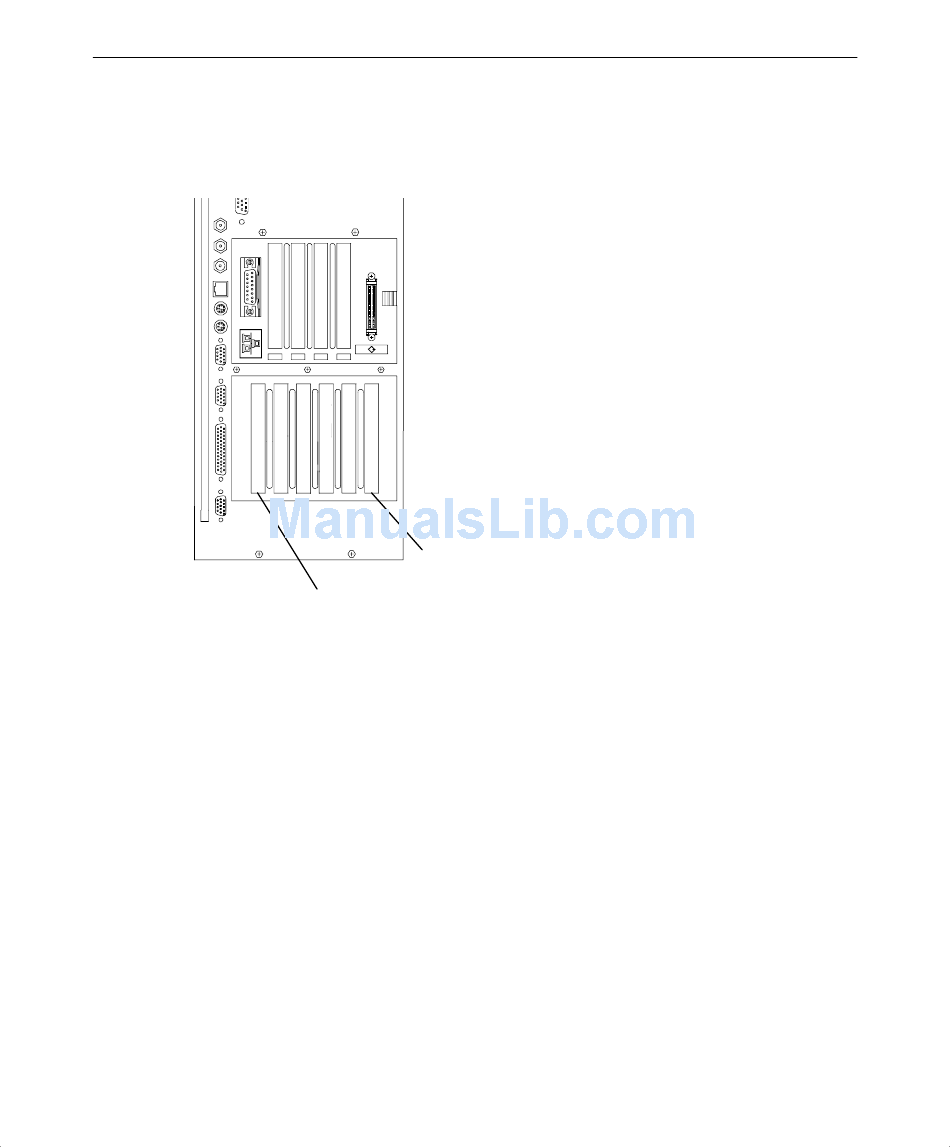

The following figure shows the PCI slots of the TDZ-610 and the InterServe 6x5 systems.
To install the MegaRAID controller:
1. Ensure the system is powered off.
2. Open the base unit by removing the top cover, left side panel, and PCI access panel on
the bottom of the unit.
3. Remove the screw and blanking plate from an available PCI slot.
4. Install the MegaRAID controller. Press firmly and evenly over the PCI connector to
ensure the board seats completely into the slot.
5. Secure the board with the screw removed from the blanking plate.
6. Close the base unit.
7. Set up the disk array cabinet as described in "Setting up the Cabinet."
PCI Slot 1 (Primary for
InterServe 6x5 with
PCI Slot 6 internal RAID)
11
