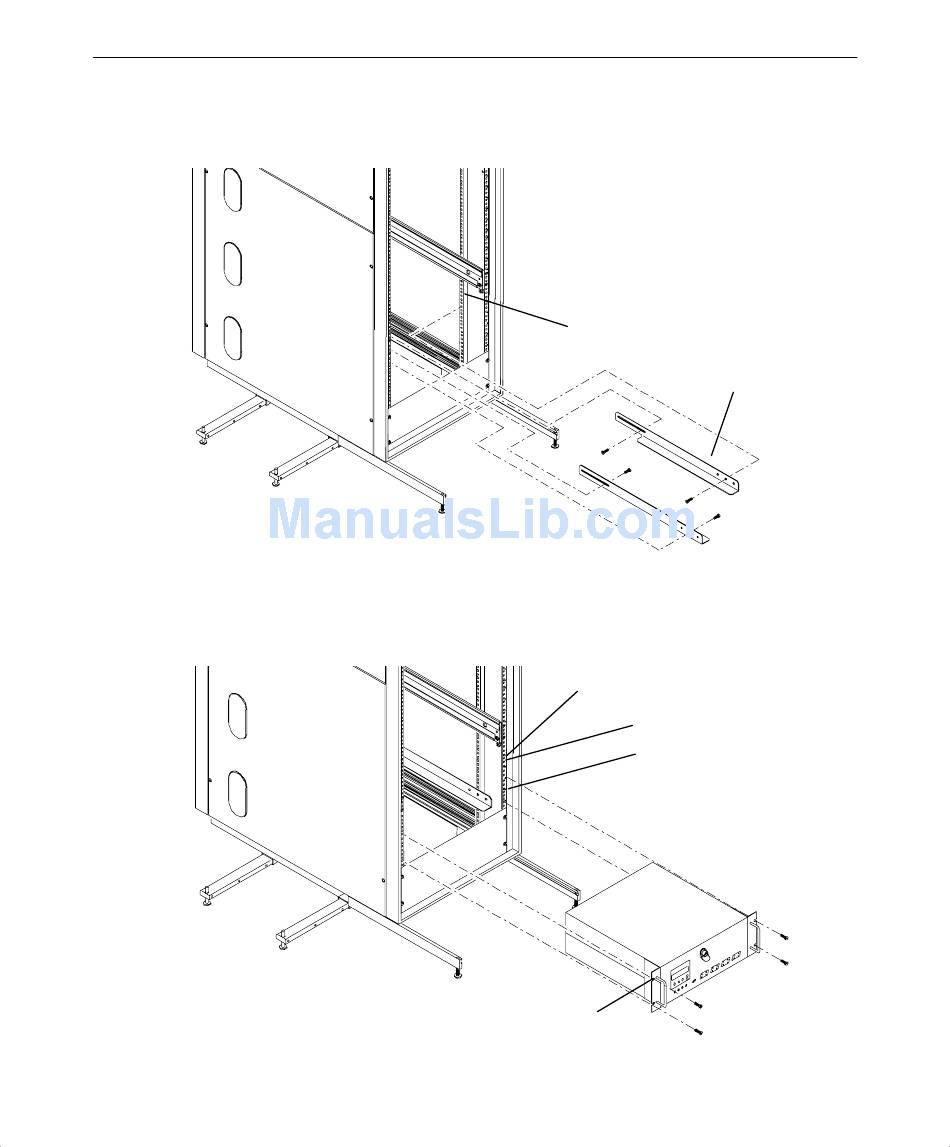

3. Using the screws provided, attach the mounting shelves to the rack. See the following
figure.
4. Place the InterRAID-8e cabinet on the mounting shelf as shown in the following figure.
5. Install tinnerman nuts on the exterior face of the two front mounting posts. Using the
screws provided, secure the handle brackets to the rack.
Interior Face of
Mounting Post
Exterior Face of
Mounting Post
Hole 22
Hole 15
Handle Bracket
29
Mounting
Shelf
