Intergraph InterRAID-8e Hardware User's Manual page 46

32
u
InterServe 8400 -- Channels 0 and 1 are used for internal RAID section. Channels 0
and 1 are not available for connecting RAID SCSI cables to one disk array cabinet.
u
InterServe 8000 -- Channels 0 and 1 are used for internal RAID section. Channels 0
and 1 are not available for connecting a cabinet.
The channels available on secondary controllers are as follows:
u
TDZ-612 RAX, RenderRAX, InterServe 6x5R -- Channels 0 and 1 are available for
connecting cabinets. Channel 2 is not available.
u
InterServe 8400, 8000 -- Channels 0 and 1 are available for connecting cabinets.
Channel 2 is available if the Channel 2 access cable is installed.
u
StudioZ RAX -- Channels 1 and 2 of the controller in PCI slot 4 are used for the internal
RAID section, and Channel 0 is not available. Controllers in PCI slot 5 through 7 use
Channels 0 and 1 to connect cabinets, and Channel 2 is not available.
To connect cables:
1. Connect the RAID SCSI cable Channel 0 on the primary or secondary MegaRAID
controller. Connect the other end of the cable to the Channel 0 connector on the
InterRAID-8e cabinet. Repeat for Channel 1.
2. Secure the cables using the thumb screws (finger tight only). Failure to secure the
cables properly can result in intermittent problems with the cabinet or the MegaRAID
controller.

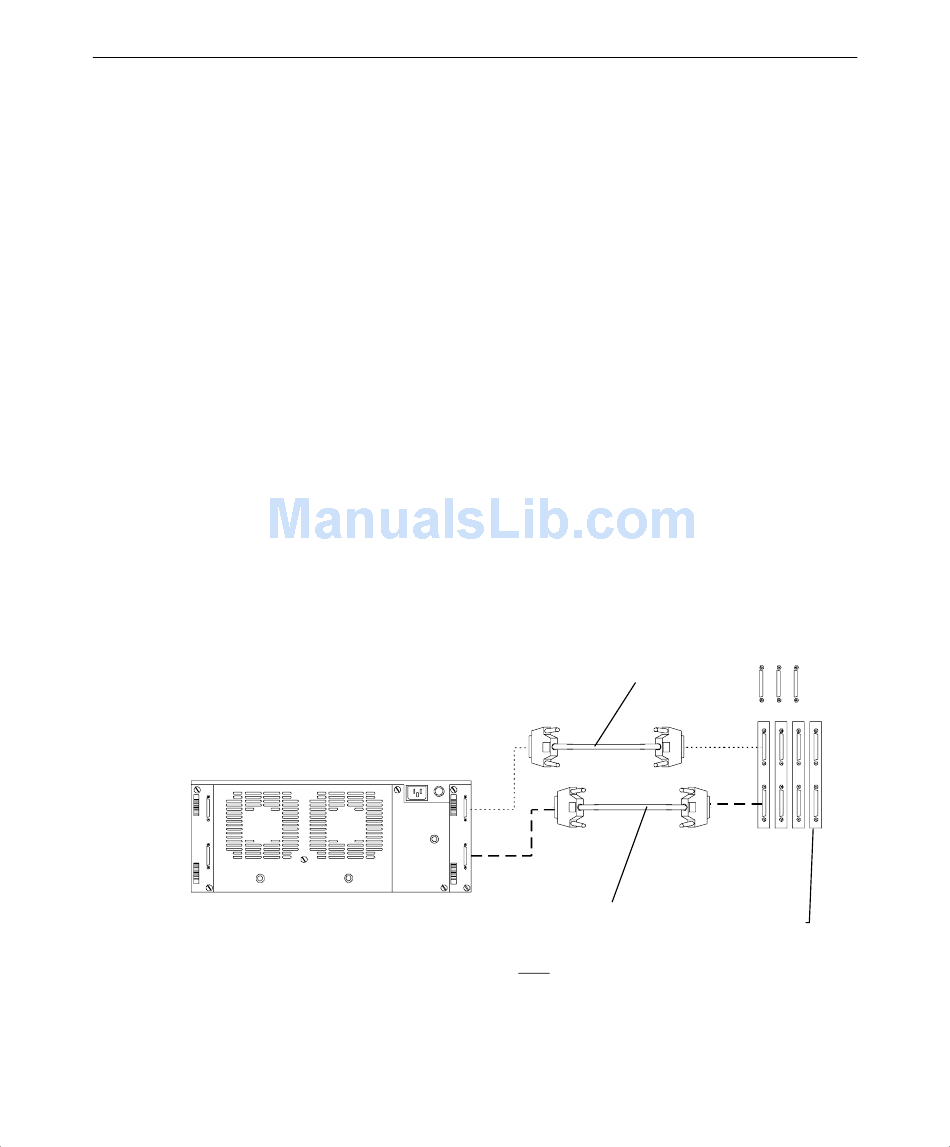

The following figure shows connecting cables to Channel 0 and 1 of a controller.
NOTE Ensure that the 2 meter cables connect to the right side of the InterRAID cabinet. The
InterRAID-8e cabinet contains special extender circuitry that supports longer (2 meter) cable
lengths connected only on the right side of the cabinet. Do not connect 2 meter cables to the
left side of the cabinet.
Channel 0
Channel 1
MegaRAID Controller
External Connectors
