Applications
Camera Input/Output Port
and Events (continued)

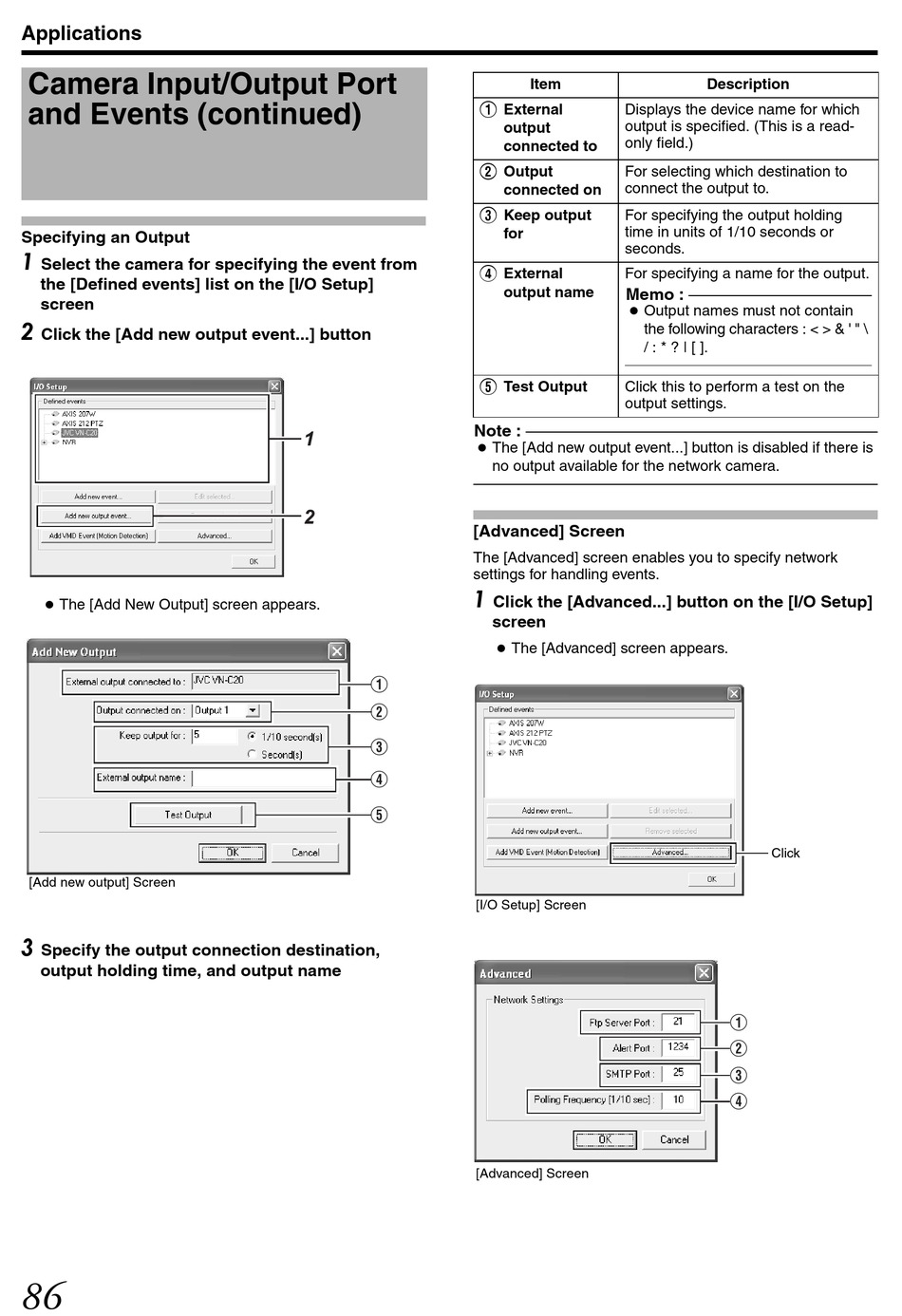

Specifying an Output

1
Select the camera for specifying the event from
the [Defined events] list on the [I/O Setup]
screen
2
Click the [Add new output event...] button
● The [Add New Output] screen appears.
[Add new output] Screen
3
Specify the output connection destination,
output holding time, and output name
1
2

[Advanced] Screen

The [Advanced] screen enables you to specify network
settings for handling events.
1
A
B
C
D
E
Item
A
External Displays the device name for which
output is specified. (This is a read-
output
only field.)
connected to
B
Output For selecting which destination to
connect the output to.
connected on
C
Keep output For specifying the output holding
time in units of 1/10 seconds or
for
seconds.
D
External For specifying a name for the output.
output name
Memo :
● Output names must not contain
E
Test Output Click this to perform a test on the
output settings.
Note :
● The [Add new output event...] button is disabled if there is
no output available for the network camera.
Click the [Advanced...] button on the [I/O Setup]
screen
● The [Advanced] screen appears.
[I/O Setup] Screen
[Advanced] Screen
Description
the following characters : < > & ' " \
/ : * ? | [ ].
Click
A
B
C
D
