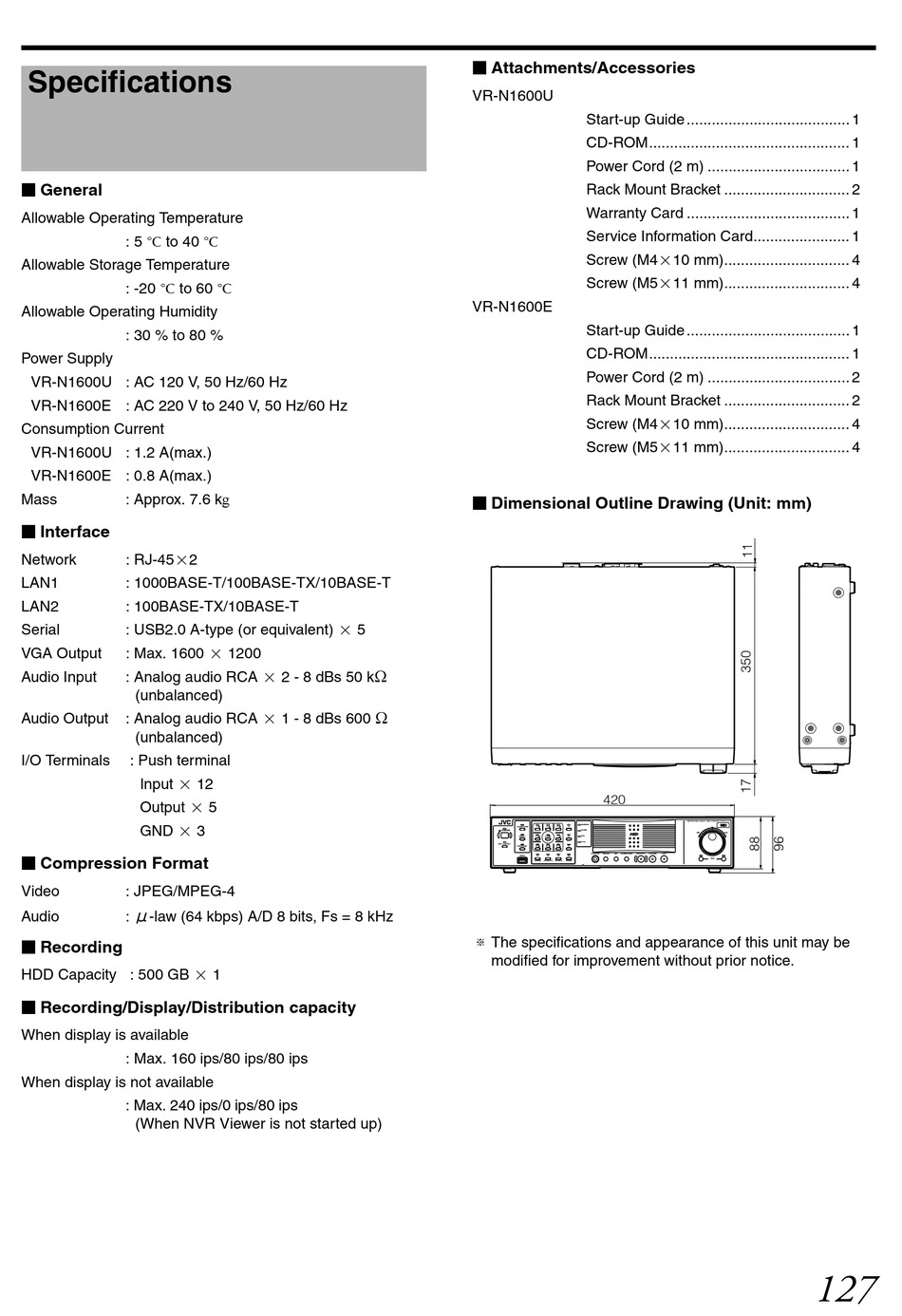

Specifications

General
Allowable Operating Temperature
: 5 I to 40 I
Allowable Storage Temperature
: -20 I to 60 I
Allowable Operating Humidity
: 30 % to 80 %
Power Supply
VR-N1600U : AC 120 V, 50 Hz/60 Hz
VR-N1600E : AC 220 V to 240 V, 50 Hz/60 Hz
Consumption Current
VR-N1600U : 1.2 A(max.)
VR-N1600E : 0.8 A(max.)
Mass : Approx. 7.6 kg
Interface
Network : RJ-45 2
LAN1 : 1000BASE-T/100BASE-TX/10BASE-T
LAN2 : 100BASE-TX/10BASE-T
Serial : USB2.0 A-type (or equivalent)
VGA Output : Max. 1600
Audio Input : Analog audio RCA
(unbalanced)
Audio Output : Analog audio RCA
(unbalanced)
I/O Terminals : Push terminal
Input
Output
GND
Compression Format
Video : JPEG/MPEG-4
Audio : -law (64 kbps) A/D 8 bits, Fs = 8 kHz
Recording
HDD Capacity : 500 GB
Recording/Display/Distribution capacity
When display is available
: Max. 160 ips/80 ips/80 ips
When display is not available
: Max. 240 ips/0 ips/80 ips
(When NVR Viewer is not started up)
5
1200
2 - 8 dBs 50 kK
1 - 8 dBs 600 K
12
5
3
1
Attachments/Accessories
VR-N1600U
Start-up Guide ....................................... 1
CD-ROM................................................ 1
Power Cord (2 m) .................................. 1
Rack Mount Bracket .............................. 2
Warranty Card ....................................... 1
Service Information Card....................... 1
Screw (M4 10 mm).............................. 4
Screw (M5 11 mm).............................. 4
VR-N1600E
Start-up Guide ....................................... 1
CD-ROM................................................ 1
Power Cord (2 m) .................................. 2
Rack Mount Bracket .............................. 2
Screw (M4 10 mm).............................. 4
Screw (M5 11 mm).............................. 4
Dimensional Outline Drawing (Unit: mm)
420
WARNING
LIVE/BROWSE
OPERATE ALARM
SELECT HDD
LOCK
REC CONTROL
PTZ/PRESET
FUNCTION SEARCH KEY ALARM CLEAR REC/STOP
SERIAL
CANCEL ZOOM OUT ZOOM IN ENTER
T The specifications and appearance of this unit may be
modified for improvement without prior notice.
REV FWD
STOP(PB) PLAY
SKIP
