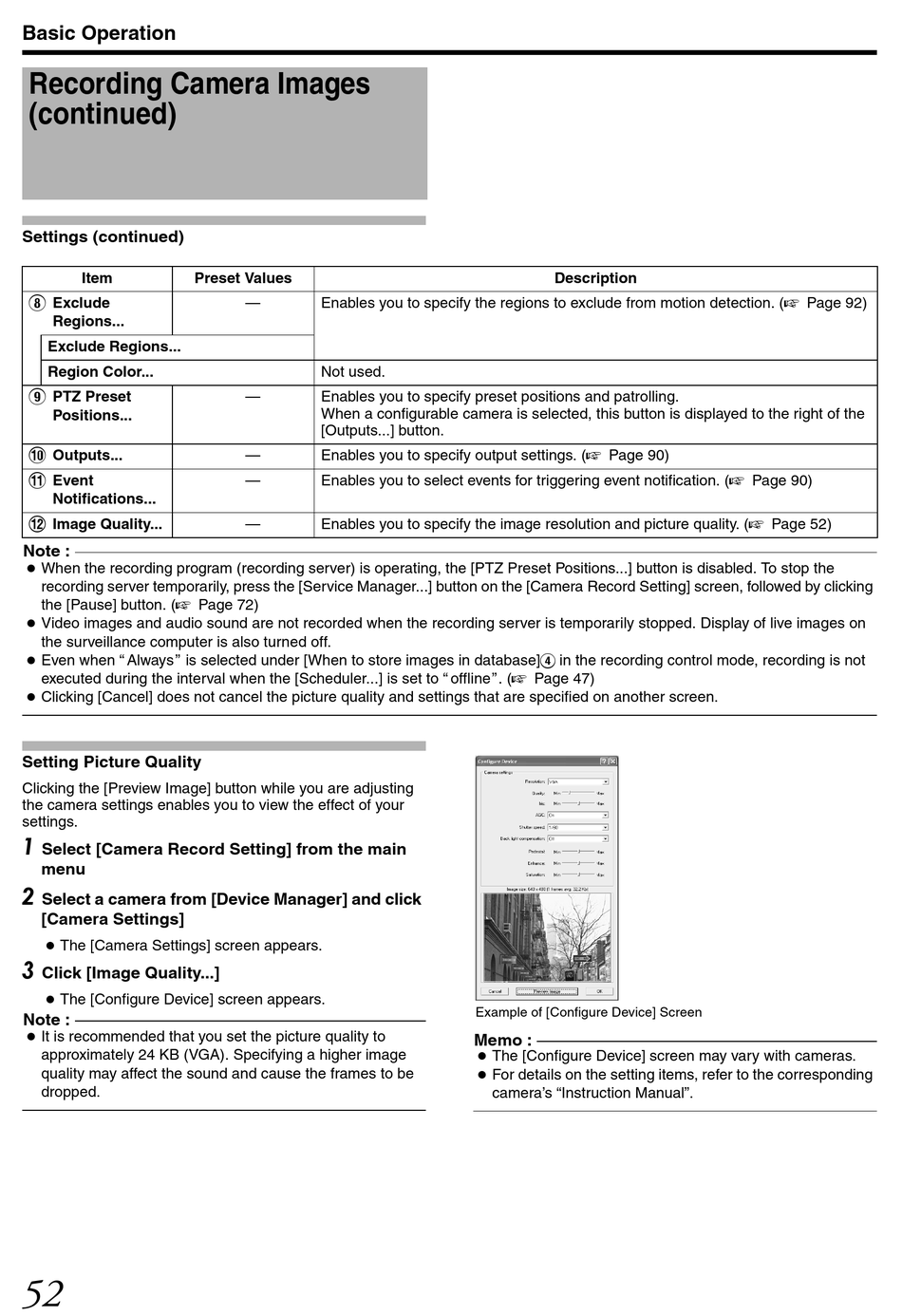

Basic Operation
Recording Camera Images
(continued)
Settings (continued)
Item
H
Exclude
Regions...
Exclude Regions...
Region Color...
I
PTZ Preset
Positions...
J
Outputs...
K
Event
Notifications...
L
Image Quality...
Note :
● When the recording program (recording server) is operating, the [PTZ Preset Positions...] button is disabled. To stop the
recording server temporarily, press the [Service Manager...] button on the [Camera Record Setting] screen, followed by clicking
the [Pause] button. (A Page 72)
● Video images and audio sound are not recorded when the recording server is temporarily stopped. Display of live images on
the surveillance computer is also turned off.
● Even when Always is selected under [When to store images in database]D in the recording control mode, recording is not
executed during the interval when the [Scheduler...] is set to offline . (A Page 47)
● Clicking [Cancel] does not cancel the picture quality and settings that are specified on another screen.

Setting Picture Quality

Clicking the [Preview Image] button while you are adjusting
the camera settings enables you to view the effect of your
settings.
1
Select [Camera Record Setting] from the main
menu
2
Select a camera from [Device Manager] and click
[Camera Settings]
● The [Camera Settings] screen appears.
3
Click [Image Quality...]
● The [Configure Device] screen appears.
Note :
● It is recommended that you set the picture quality to
approximately 24 KB (VGA). Specifying a higher image
quality may affect the sound and cause the frames to be
dropped.
Preset Values
^
Enables you to specify the regions to exclude from motion detection. (A Page 92)
Not used.
^
Enables you to specify preset positions and patrolling.
When a configurable camera is selected, this button is displayed to the right of the
[Outputs...] button.
^
Enables you to specify output settings. (A Page 90)
^
Enables you to select events for triggering event notification. (A Page 90)
^
Enables you to specify the image resolution and picture quality. (A Page 52)
Description
Example of [Configure Device] Screen
Memo :
● The [Configure Device] screen may vary with cameras.
● For details on the setting items, refer to the corresponding
camera's "Instruction Manual".
