NETWORK PACK
KA-DV5000
User's Guide
LST0103-001B

Advertisement

   Also See for JVC KA-DV5000

   Related Manuals for JVC KA-DV5000

   Summary of Contents for JVC KA-DV5000

  • Page 1

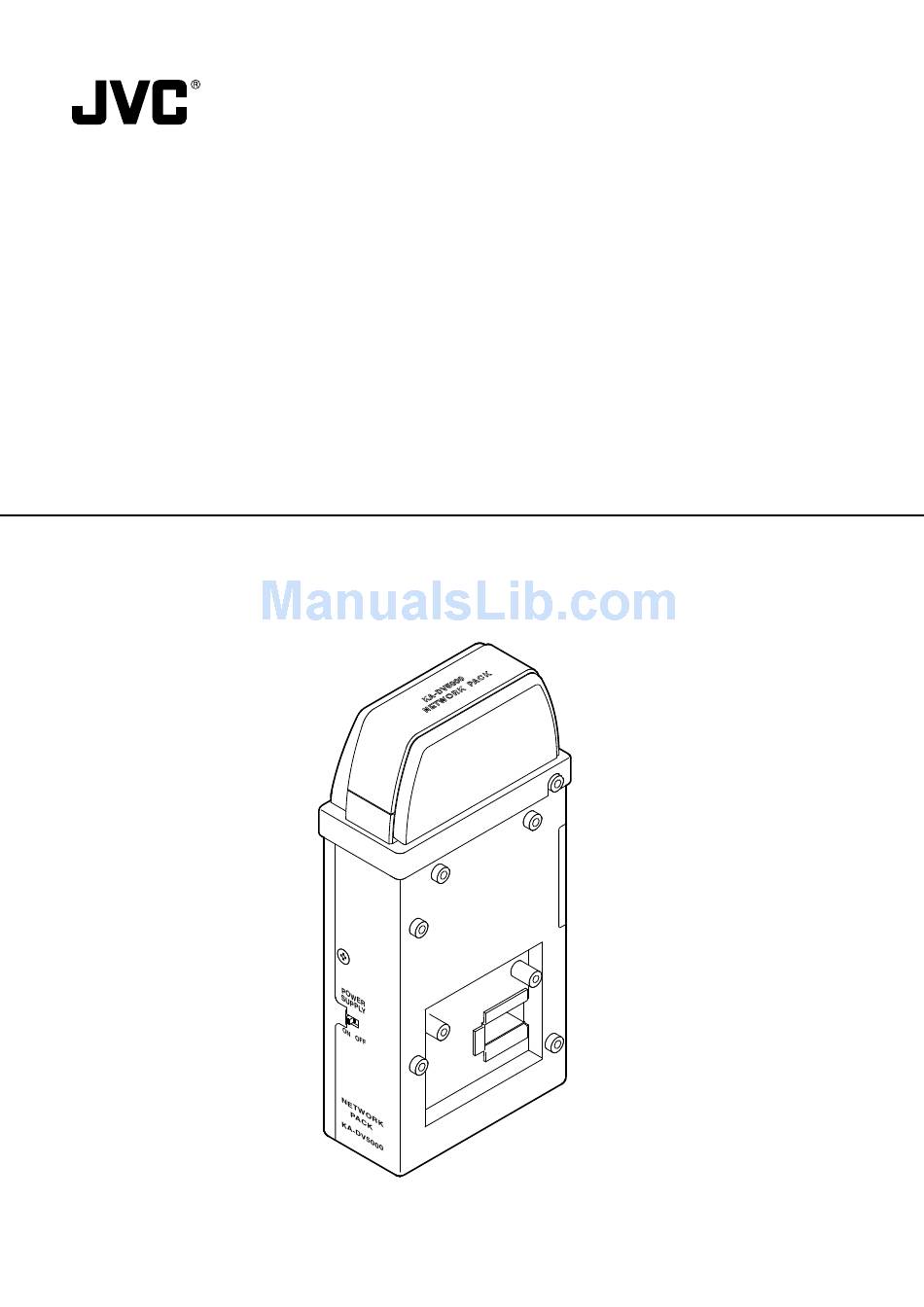

    NETWORK PACK KA-DV5000 User’s Guide LST0103-001B...

  • Page 2: Table Of Contents

    When attaching Network Pack KA-DV5000 to DV Camcorder GY-DV5000, network related menus are added to the GY-DV5000 menu screen. This User’s Guide explains settings for the network related menus, operation for recording streaming data to a CF (Compact Flash) memory card and operation for sending streaming data using a LAN card. When a LAN card is connected, menu screen settings for the Network Pack and GY-DV5000 can be operated from your PC.

  • Page 3: Introduction

    : LAN card ization. : CF memory card Removing card Turn off the GY-DV5000 power, or turn off the KA-DV5000 power. Open the cover, press the EJECT button of KA-DV5000 and remove the card.

  • Page 4: Lcd Screen/viewfinder Screen

    Introduction LCD screen/viewfinder screen Information from Network Pack KA-DV5000 is displayed on the GY-DV5000 LCD screen/viewfinder screen. CF FULL! qCard status displays wCF Memory card warning display Displays CF memory card status and system errors. Display Description No card is inserted in Network Pack.

  • Page 5: Menu Screen

    Menu screen Menu screen structure When attaching Network Pack KA-DV5000 to DV Camcorder GY-DV5000, NETWORK PACK CONFIG menu and MOVIE CLIP menu are added to the GY-DV5000 TOP MENU screen. MOVIE CLIP list screen ( page 23) TOP MENU screen...

  • Page 6: Network Pack Config Menu Screen Items

    Menu screen NETWORK PACK CONFIG menu screen items indicates default factory setting. Item Setting Description Displays menu screen for network related settings. ( page 11) NETWORK MAIN SETUP ENCODE SETUP Displays menu screen for setting video and audio compressions. 320 ×...

  • Page 7

    Menu screen NETWORK PACK CONFIG menu screen items Item Setting Description MOVIE CLIP SETUP Displays the menu screen for CF memory card related settings such as formatting or delet- ing all recorded clip files. DELETE ALL CANCEL Selecting EXECUTE and pressing the SHUTTER dial deletes all clip files on the CF memory EXECUTE card.

  • Page 8: Setting The Network Pack Config Menu Screen

    Menu screen Setting the NETWORK PACK CONFIG menu screen Menu screen settings can be made regardless of whether a card is inserted. Settings will be stored in the KA-DV5000 memory even when turning the power off. STATUS SHUTTER MENU OPEN...

  • Page 9: Returning The Network Pack Config Menu Screen To Factory Settings

    COMPRESS AUTO MANUAL NETWORK PACK KA-DV5000 POWER NETWORK PACK CONFIG Press the STATUS button for about 1 seconds to display the TOP MENU screen. menu screen Check to see that the card status display has changed from a flashing to constant A CK display.

  • Page 10: Network Settings

    Setting the NETWORK MAIN SETUP menu screen When using a LAN card, network related settings for KA-DV5000 are made using NETWORK MAIN SETUP of the NETWORK PACK CONFIG menu. Settings will be stored in the KA-DV5000 memory even when turning the power off.

  • Page 11: Network Main Setup Menu Screen Items

    Network settings NETWORK MAIN SETUP menu screen items NETWORK SETUP menu screen indicates default factory setting. Item Setting Description HOST NAME Displays the host name input setting screen. (4 ~ 64 alphanumerical characters) [Factory setting: none] DHCP Select whether DHCP server is used. OFF: Use this setting when using LAN connection rather than DHCP.

  • Page 12

    LEAP Displays the LEAP PASSWORD input screen. (4 ~ 32 alphanumerical characters) PASSWORD Set when using the LEAP function. [Default setting: ka-dv-jvc] HTTP USER Displays the HTTP USER NAME input screen. (3 ~ 8 alphanumerical characters) NAME Set when connecting from the Web browser.

  • Page 13: Setting User Names And Passwords

    Network settings Setting user names and passwords \ Changing the user name When changing the HTTP USER NAME or FTP USER NAME, “NEXT STEP SET PASSWORD” will appear on the screen and the PASSWORD menu screen is displayed. When input is canceled in the PASSWORD menu screen, the user name will also be canceled. It is possible to change only the password.

  • Page 14: Making Network Related Settings

    HTTP USER NAME input setting screen Currently inputted number of characters/ max.number of characters Example: Changing HTTP USER NAME from jvc to jvc-1234 NAME 3 / 8 \ Select HTTP USER NAME in the SERVER SETUP menu screen and press the j v c SHUTTER dial.

  • Page 15: Detailed Ip Settings (lan)

    ●Operation is only guaranteed for Windows 2000, Windows XP Home Edition or Windows XP Professional. ●Internet Explorer 5.0 or later ●Windows Media Player 7.01 or later (WM9 is not supported.) 1. For 1:1 communication between PC and GY-DV5000/KA-DV5000 OPEN OPEN...

  • Page 16: Detailed Network Settings (wlan)

    COMPRESS COMPRESS CH-1 CH-1 CH-2 CH-2 MANU MANUAL AL NETW NETWORK PACK KA-D KA-DV5000 V5000 POWER POWER Set a unique number to avoid doubling DHCP WLAN AD HOC MODE ON WLAN ESS ID abcdef PROXY SERVER WLAN CH DHCP SERVER IP ADDRESS 192.

  • Page 17

    AUDIO SELECT UDIO SELECT CH-2 CH-2 SPOT L SPOT L COMPRESS COMPRESS MANU MANUAL AL NETW NETWORK PACK KA-D KA-DV5000 V5000 POWER POWER IP ADDRESS 192. 168. 100. 102 NETMASK 255. 255. 255. 000 OPEN OPEN EDITSEARCH EDITSEARCH MONITOR MONITOR...

  • Page 18: Recording On A Cf Card

    COMPRESS AUTO MANUAL NETWORK PACK KA-DV5000 able to regain a normal display. POWER Press the STATUS button for about 1 seconds to display the TOP MENU screen. Use the SHUTTER dial to select NETWORK PACK CONFIG menu screen ¥ NO CF FORMAT! MOVIE CLIP SETUP menu screen.

  • Page 19: Recording Video On A Dv Cassette Tape And Cf Memory Card

    ● “NO CF FORMAT!” will appear if the in- Insert a CF memory card into the Network Pack. serted CF memory card is not formatted. Turn on the GY-DV5000 and KA-DV5000 power. Format the card in the MOVIE CLIP SET Check to see that the display appears on the LCD screen/viewfinder screen.

  • Page 20: Recording Video On A Cf Memory Card Only

    ● “NO CF FORMAT!” will appear if the in- Insert a CF memory card into the Network Pack. serted CF memory card is not formatted. Turn on the GY-DV5000 and KA-DV5000 power. Format the card in the MOVIE CLIP SET Check to see that the display appears on the LCD screen/viewfinder screen.

  • Page 21: Recording Playback Signals Of A Dv Cassette Tape On A Cf Memory Card

    ● “NO CF FORMAT!” will appear if the in- Insert a CF memory card into the Network Pack. serted CF memory card is not formatted. Turn on the GY-DV5000 and KA-DV5000 power. Format the card in the MOVIE CLIP SET Check to see that the display appears on the LCD screen/viewfinder screen.

  • Page 22: Deleting All Clip Files On A Cf Memory Card

    POWER POWER switch NETWORK PACK CONFIG Insert an already recorded CF memory card. menu screen Turn on the GY-DV5000 and KA-DV5000 power. A CK NE T WOR K MA N Check to see that the display appears on the LCD screen/viewfinder screen.

  • Page 23: Movie Clips

    ● MOVIE CLIP will not appear during card Insert an already recorded CF memory card. initialization (flashing display). Turn on the GY-DV5000 and KA-DV5000 power. Check to see that the display appears on the LCD screen/viewfinder screen. (When the power is turned on, display will flash during initialization.)

  • Page 24

    Memo ● The video encoded by the KA-DV5000 To pause playback, press the PLAY button. is so designed that it is displayed in a To resume playback, press the PLAY button once more.

  • Page 25: Protecting A Clip File On A Cf Memory Card

    ● When executing FORMAT in the MOVIE Insert an already recorded CF memory card. CLIP SETUP menu screen, protected Turn on the GY-DV5000 and KA-DV5000 power. clips will also be deleted. Check to see that the display appears on the LCD screen/viewfinder screen.

  • Page 26: Deleting A Clip File On A Cf Memory Card

    TOP MENU screen Insert an already recorded CF memory card. MEN U Turn on the GY-DV5000 and KA-DV5000 power. AUD I O / V I D E O . . L C D / V F . . Check to see that the display appears on the LCD screen/viewfinder screen.

  • Page 27: Playing Back Cf Memory Card Clips On Your Pc

    COMPRESS AUTO MANUAL NETWORK card PACK KA-DV5000 POWER * If the PC is equipped with PCMCIA Clips recorded on a CF memory card can be played back on your PC. slot(s), CF card reader is not required. Caution ● Clips recorded on CF memory cards are stored in ASF file format.

  • Page 28: Lan Card

    VTR trigger button LCD screen Insert a LAN card into the Network Pack. Turn on the GY-DV5000 and KA-DV5000 power. Check to see that the LAN card display is showing on the LCD screen/viewfinder screen. Set the MODE switch to “CAM”. (Light the CAM indicator.) Insert a recordable DV cassette tape.

  • Page 29: Sending Video Using A Lan Card (no Dv Cassette Tape Recording)

    When completed, press the STATUS button to return to the normal screen. card. Then, turn the power back on. When operating Streamproducer and making network connection with KA-DV5000, sending of streaming video/audio data will start from the LAN card.

  • Page 30: Sending Playback Signals Of A Dv Cassette Tape Using A Lan Card

    When completed with settings, press the STATUS button to return to the normal NETWORK PACK CONFIG screen. menu screen When operating Streamproducer and making network connection with KA-DV5000, A CK NE T WOR K MA N sending of streaming video/audio data will start from the LAN card.

  • Page 31: Network Pack Setup

    It is also possible to playback video and audio from KA-DV5000 on your PC in the STREAMCAPTURE screen in realtime (live display) as well as save data to files. However, note that video and audio from KA-DV5000 can be played back only on one PC at a time.

  • Page 32: Network Setup Screen

    Network pack setup NETWORK SETUP screen Clicking NETWORK SETUP on the left of the Streamcorder screen displays the NETWORK SETUP screen for performing network related settings. Screen selection Clicking the OK icon will confirm the inputted setting. Contact your network administrator for any unclear points concerning network settings. Item Setting Description...

  • Page 33

    LEAP Server Account Setup screen Factory Item Description setting User Name Input the LEAP user name. leap-user Old Password Input the currently used password. ka-dv-jvc New Password Input the new password. Confirm New For confirmation, input the new password again.

  • Page 34: Port Setup Screen

    Network pack setup PORT SETUP screen Clicking PORT SETUP on the left of the Streamcorder screen displays the PORT SETUP screen for performing port settings. Screen selection Input Clicking the OK icon will confirm the inputted setting. Item Description Factory setting HTTP (for WEB Browser) The HTTP port for WEB browser can be set.

  • Page 35: Cam & Vtr Control Screen

    Network pack setup CAM & VTR CONTROL screen When the correct user ID and password are accepted, the following Streamcorder screen appears. In the CAM & VTR CONTROL screen, camera adjustments of GY-DV5000 and VTR controls can be made. Screen selection Setting Clicking will display the Select the setting from the...

  • Page 36

    Network pack setup CAM & VTR CONTROL screen \ VTR Control VTR control icons Click each button to perform operation. \ To control the VTR in the Streamcorder screen, the following menu items of GY-DV5000 must be set in advance. ●...

  • Page 37: Encode Parameters Screen

    Network pack setup ENCODE PARAMETERS screen Clicking ENCODE PARAMETERS on the left of the Streamcorder screen displays the ENCODE PARAMETERS screen for performing video/audio compression settings. Setting Select the setting from the pull-down menu. Screen selection Click the OK icon to confirm setting.

  • Page 38: Streamcapture Screen (playing Back Video/audio Using A Pc And Saving To File)

    Click the characters “STREAMCAPTURE” on the left of the Streamcorder screen to display the Streamcapture screen shown below. Video and audio sent from KA-DV5000 via LAN can be played back on your PC in the Streamcapture screen or data can be saved to files.

  • Page 39

    STREAMCAPTURE screen (Playing back video/audio using a PC and saving to file) About the Trigger Mode function (TRIG) The Trigger Mode function can be used to save and transmit video/audio from KA-DV5000 to your PC by synchronizing to the button operations of GY-DV5000.

  • Page 40

    Network pack setup STREAMCAPTURE screen (Playing back video/audio using a PC and saving to file) About the Cast function (CAST) The Cast function can be used to send video/audio from KA-DV5000 to another PC. <Sending method> <Receiving sent video> Display the video to send in the video display window of the Video sent using the Cast function can be received using Win- Streamcapture screen and click the CAST-CAM button.

  • Page 41

    Network pack setup STREAMCAPTURE screen (Playing back video/audio using a PC and saving to file) Property dialog box Select the video display size Select the display size from the pull- down menu. Setting range: ● Real size ● Fit to window Click the OK button to confirm settings.

  • Page 42: Top Page Can Be Customized

    Create HTML on the PC using a commercially available HTML editor, etc. Save the created HTML file under the name of “index.html”. Use a commercially available FTP program on the PC to upload index.html created in step 2 above to KA-DV5000. FTP program settings (Execute using the set value.) IP Adress : 192.168.100.101...

  • Page 43: Connecting Windows Media Player

    Others Connecting Windows Media Player Connect the KA-DV5000 to Windows Media Player using the network. Set STREAM TYPE in the ENCODE SETUP menu to “for WMP”. Open Windows Media Player. Select [File] → [Open URL]. The following dialog box will appear.

  • Page 44: Connecting Quick Time Player

    Others Connecting Quick Time Player Connect the KA-DV5000 to QuickTime Player using the network. Set STREAM TYPE in the ENCODE SETUP menu to “for QT”. Open Quick Time Player. Select [File] → [Open URL with New Player]. The following dialog box will appear.

  • Page 45: About Updating The Network Pack

    POWER switch NETWORK PACK CONFIG menu screen Insert a CF memory card with update data into the slot. A CK Set the POWER switch of GY-DV5000 or KA-DV5000 to ON. NE T WOR K MA N EN CODE P . .

  • Page 46: Troubleshooting

    Others Troubleshooting When there is a system error, network error, unit malfunction, etc., KA-DV5000 displays the error on the GY-DV5000 LCD screen or viewfinder screen. Warning display <LCD screen or viewfinder screen> Reference Screen display Cause Remedy page <File system related>...

  • Page 47

    Insert a CF memory card with UPDATE (Flashing for 3 sec.) data into the slot. UPDATE FAILED! Update was not successful. Contact your JVC dealer. COPY GUARD! Signal of recording origin is protected with Input recording signal with no copy guard ––...

  • Page 48: Checking Communication/connection

    Others Checking communication/connection By using the PING command standard to Windows, it is possible to check whether the connection is correct and that communication can be made from the PC to KA-DV5000. Launch the command prompt. ● For Windows 2000 From the Start button, select [Programs] →...

  • Page 49: Terminology

    Others Terminology ● IP address Identification number assigned to each computer that is connected to a network. The address is used for communication between network devices. ● LAN (Local Area Network) A network structured within a relatively small range such as in a single building or an office of a company. ●...

  • Page 50

    Others Terminology ● Encryption mode Setting for encrypting the flow of data during wireless communication. Following settings are available: None (Open System): No encryption. Setting will be unavailable and throughput will be improved. However, there is the risk of infor- mation leakage.

  • Page 51: Ip Address Classes

    Others Terminology \ About IP address Global IP address and local IP address There are 2 types of IP addresses: “global IP address” and “local IP address”. Global IP address: Just as different IP addresses are needed on a network, all PCs using the Internet worldwide must use a unique IP address.

  • Page 52

    VICTOR COMPANY OF JAPAN, LIMITED is a registered trademark owned by VICTOR COMPANY OF JAPAN, LTD. is a registered trademark in Japan, the U.S.A., the U.K. and many other countries. © 2002 VICTOR COMPANY OF JAPAN, LIMITED LST0103-001B...
