Applications

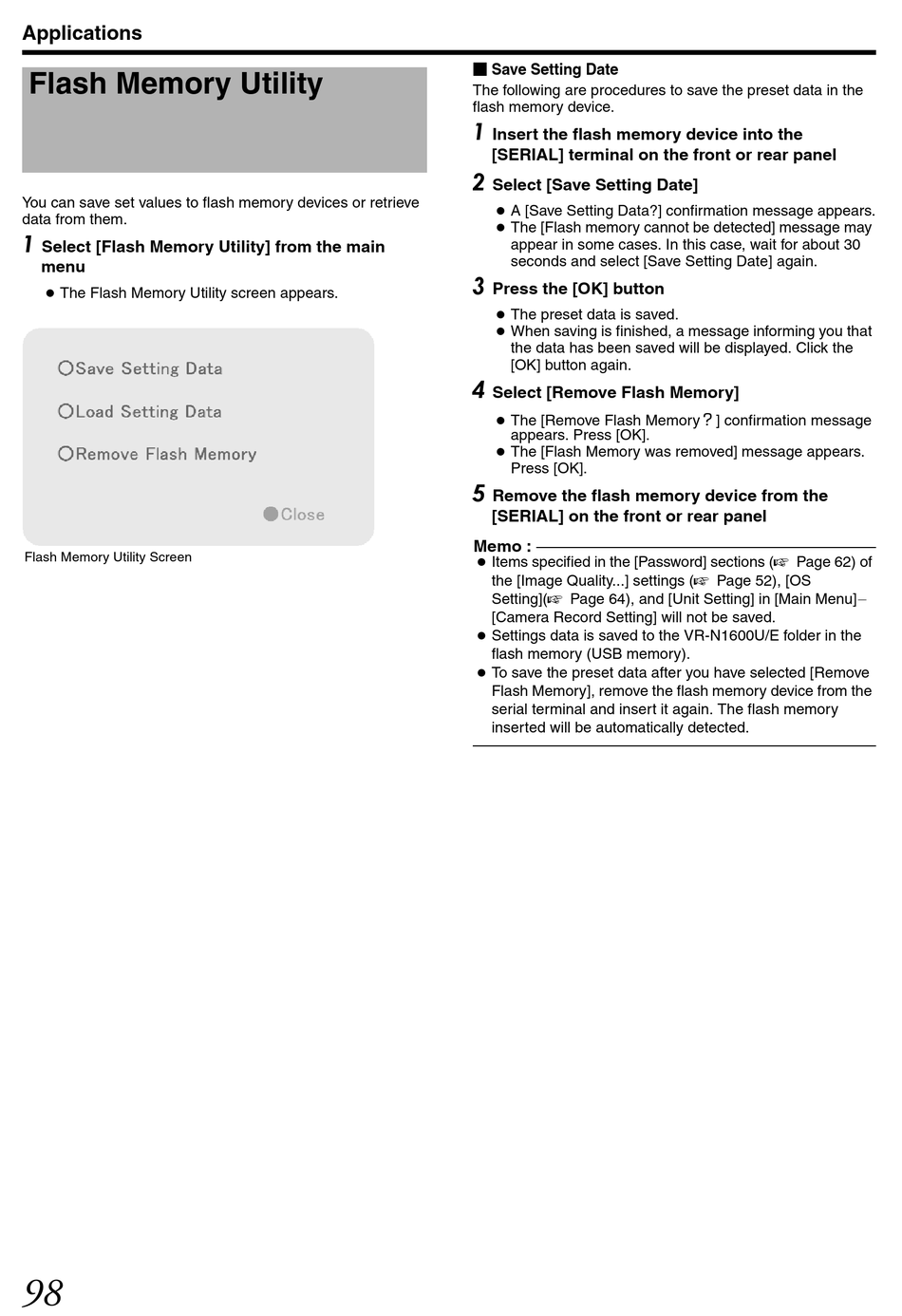

Flash Memory Utility

You can save set values to flash memory devices or retrieve
data from them.
1
Select [Flash Memory Utility] from the main
menu
● The Flash Memory Utility screen appears.
Flash Memory Utility Screen
Save Setting Date
The following are procedures to save the preset data in the
flash memory device.
1
Insert the flash memory device into the
[SERIAL] terminal on the front or rear panel
2
Select [Save Setting Date]
● A [Save Setting Data?] confirmation message appears.
● The [Flash memory cannot be detected] message may
appear in some cases. In this case, wait for about 30
seconds and select [Save Setting Date] again.
3
Press the [OK] button
● The preset data is saved.
● When saving is finished, a message informing you that
the data has been saved will be displayed. Click the
[OK] button again.
4
Select [Remove Flash Memory]
● The [Remove Flash Memory ] confirmation message
appears. Press [OK].
● The [Flash Memory was removed] message appears.
Press [OK].
5
Remove the flash memory device from the
[SERIAL] on the front or rear panel
Memo :
● Items specified in the [Password] sections (A Page 62) of
the [Image Quality...] settings (A Page 52), [OS
Setting](A Page 64), and [Unit Setting] in [Main Menu]-
[Camera Record Setting] will not be saved.
● Settings data is saved to the VR-N1600U/E folder in the
flash memory (USB memory).
● To save the preset data after you have selected [Remove
Flash Memory], remove the flash memory device from the
serial terminal and insert it again. The flash memory
inserted will be automatically detected.
