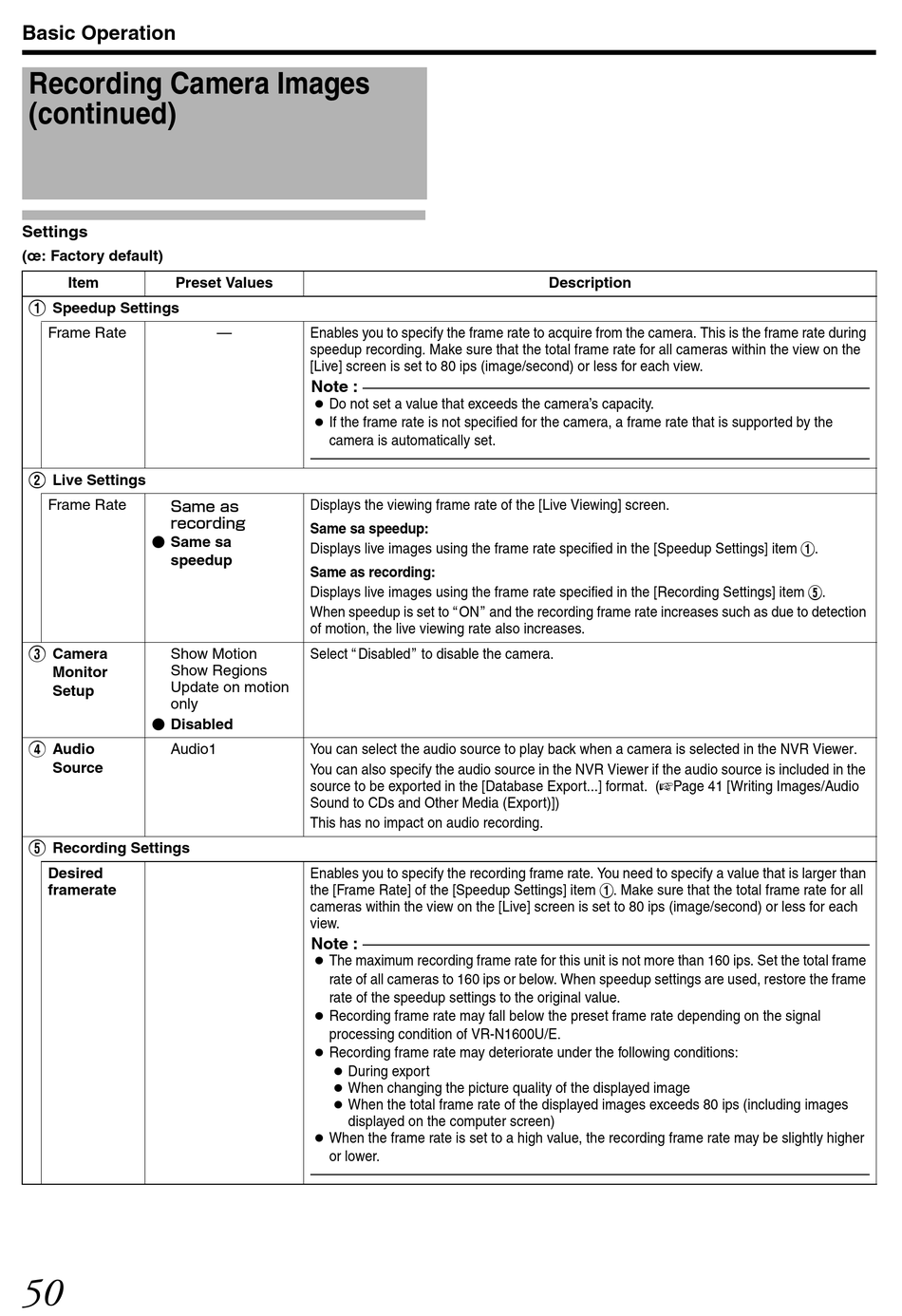

Basic Operation
Recording Camera Images
(continued)

Settings

(œ: Factory default)
Item Preset Values
A
Speedup Settings
Frame Rate
B
Live Settings
Frame Rate
Same sa
speedup
C
Camera Show Motion
Show Regions
Monitor
Update on motion
Setup
only
Disabled
D
Audio Audio1
Source
E
Recording Settings
Desired
framerate
^
Enables you to specify the frame rate to acquire from the camera. This is the frame rate during
speedup recording. Make sure that the total frame rate for all cameras within the view on the
[Live] screen is set to 80 ips (image/second) or less for each view.
Note :
● Do not set a value that exceeds the camera's capacity.
● If the frame rate is not specified for the camera, a frame rate that is supported by the
camera is automatically set.
Displays the viewing frame rate of the [Live Viewing] screen.
Same sa speedup:
Displays live images using the frame rate specified in the [Speedup Settings] item A.
Same as recording:
Displays live images using the frame rate specified in the [Recording Settings] item E.
When speedup is set to ON and the recording frame rate increases such as due to detection
of motion, the live viewing rate also increases.
Select Disabled to disable the camera.
You can select the audio source to play back when a camera is selected in the NVR Viewer.
You can also specify the audio source in the NVR Viewer if the audio source is included in the
source to be exported in the [Database Export...] format. (APage 41 [Writing Images/Audio
Sound to CDs and Other Media (Export)])
This has no impact on audio recording.
Enables you to specify the recording frame rate. You need to specify a value that is larger than
the [Frame Rate] of the [Speedup Settings] item A. Make sure that the total frame rate for all
cameras within the view on the [Live] screen is set to 80 ips (image/second) or less for each
view.
Note :
● The maximum recording frame rate for this unit is not more than 160 ips. Set the total frame
rate of all cameras to 160 ips or below. When speedup settings are used, restore the frame
rate of the speedup settings to the original value.
● Recording frame rate may fall below the preset frame rate depending on the signal
processing condition of VR-N1600U/E.
● Recording frame rate may deteriorate under the following conditions:
● During export
● When changing the picture quality of the displayed image
● When the total frame rate of the displayed images exceeds 80 ips (including images
displayed on the computer screen)
● When the frame rate is set to a high value, the recording frame rate may be slightly higher
or lower.
Description
