Getting Started

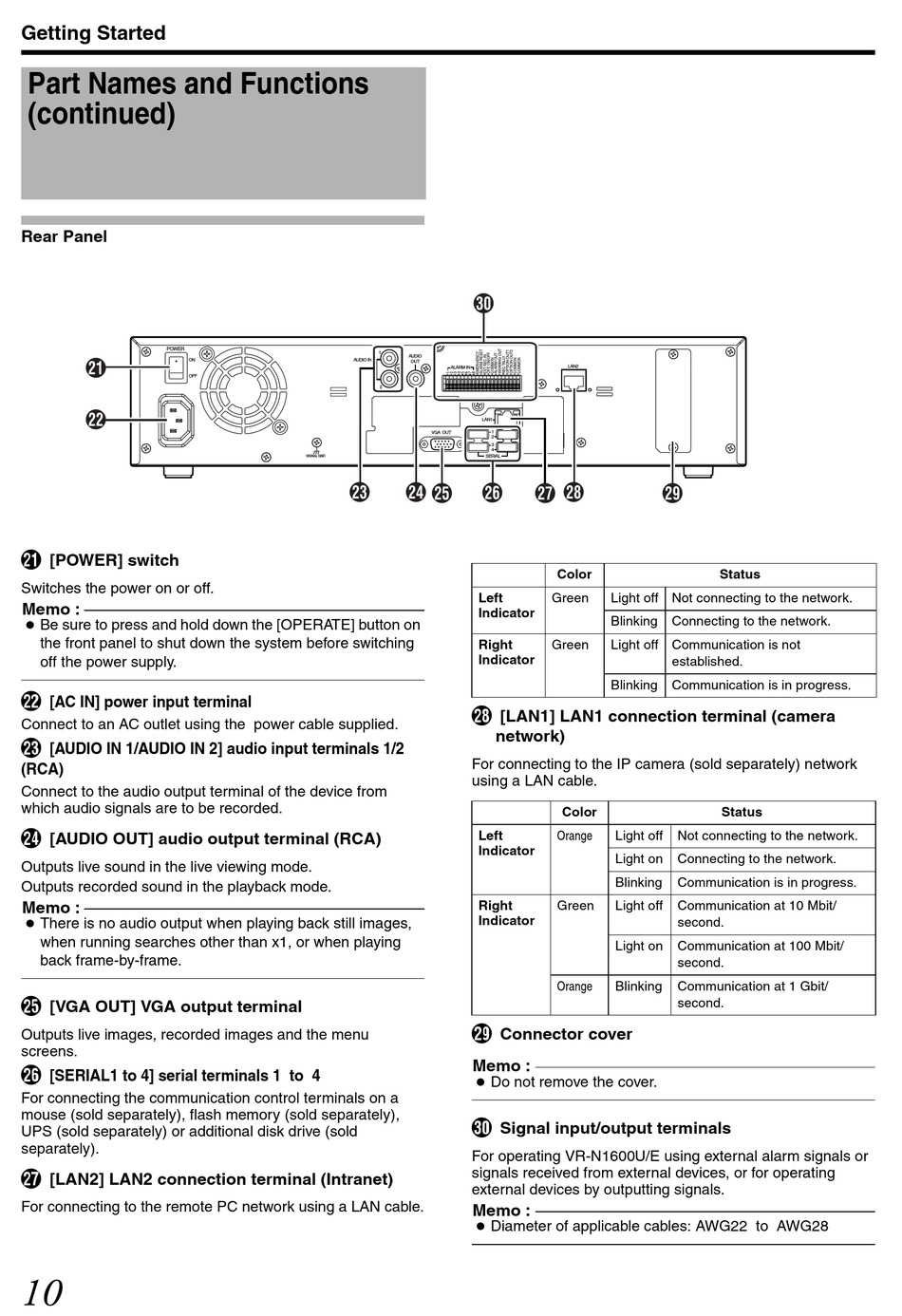

Part Names and Functions
(continued)
Rear Panel
POWER
ON
U
OFF
V
U
[POWER] switch
Switches the power on or off.
Memo :
● Be sure to press and hold down the [OPERATE] button on
the front panel to shut down the system before switching
off the power supply.
V
[AC IN] power input terminal
Connect to an AC outlet using the power cable supplied.
W
[AUDIO IN 1/AUDIO IN 2] audio input terminals 1/2
(RCA)
Connect to the audio output terminal of the device from
which audio signals are to be recorded.
X
[AUDIO OUT] audio output terminal (RCA)
Outputs live sound in the live viewing mode.
Outputs recorded sound in the playback mode.
Memo :
● There is no audio output when playing back still images,
when running searches other than x1, or when playing
back frame-by-frame.
Y
[VGA OUT] VGA output terminal
Outputs live images, recorded images and the menu
screens.
Z
[SERIAL1 to 4] serial terminals 1 to 4
For connecting the communication control terminals on a
mouse (sold separately), flash memory (sold separately),
UPS (sold separately) or additional disk drive (sold
separately).
a
[LAN2] LAN2 connection terminal (Intranet)
For connecting to the remote PC network using a LAN cable.
d
AUDIO
AUDIO IN
OUT
ALARM IN
VGA OUT
SIGNAL GND
W X
Y
b
For connecting to the IP camera (sold separately) network
using a LAN cable.
c
Memo :
d
For operating VR-N1600U/E using external alarm signals or
signals received from external devices, or for operating
external devices by outputting signals.
Memo :
LAN2
LAN1
1
2
3
4
SERIAL
Z a b
Color
Left Green Light off Not connecting to the network.
Indicator
Blinking
Right Green Light off Communication is not
Indicator
Blinking
[LAN1] LAN1 connection terminal (camera
network)
Color
Left Orange Light off
Indicator
Light on
Blinking
Right Green Light off
Indicator
Light on
Orange Blinking
Connector cover
● Do not remove the cover.
Signal input/output terminals
● Diameter of applicable cables: AWG22 to AWG28
c
Status
Connecting to the network.
established.
Communication is in progress.
Status
Not connecting to the network.
Connecting to the network.
Communication is in progress.
Communication at 10 Mbit/
second.
Communication at 100 Mbit/
second.
Communication at 1 Gbit/
second.
