Basic Operation
Playing Back Recorded
Images via Mouse Control
(continued)

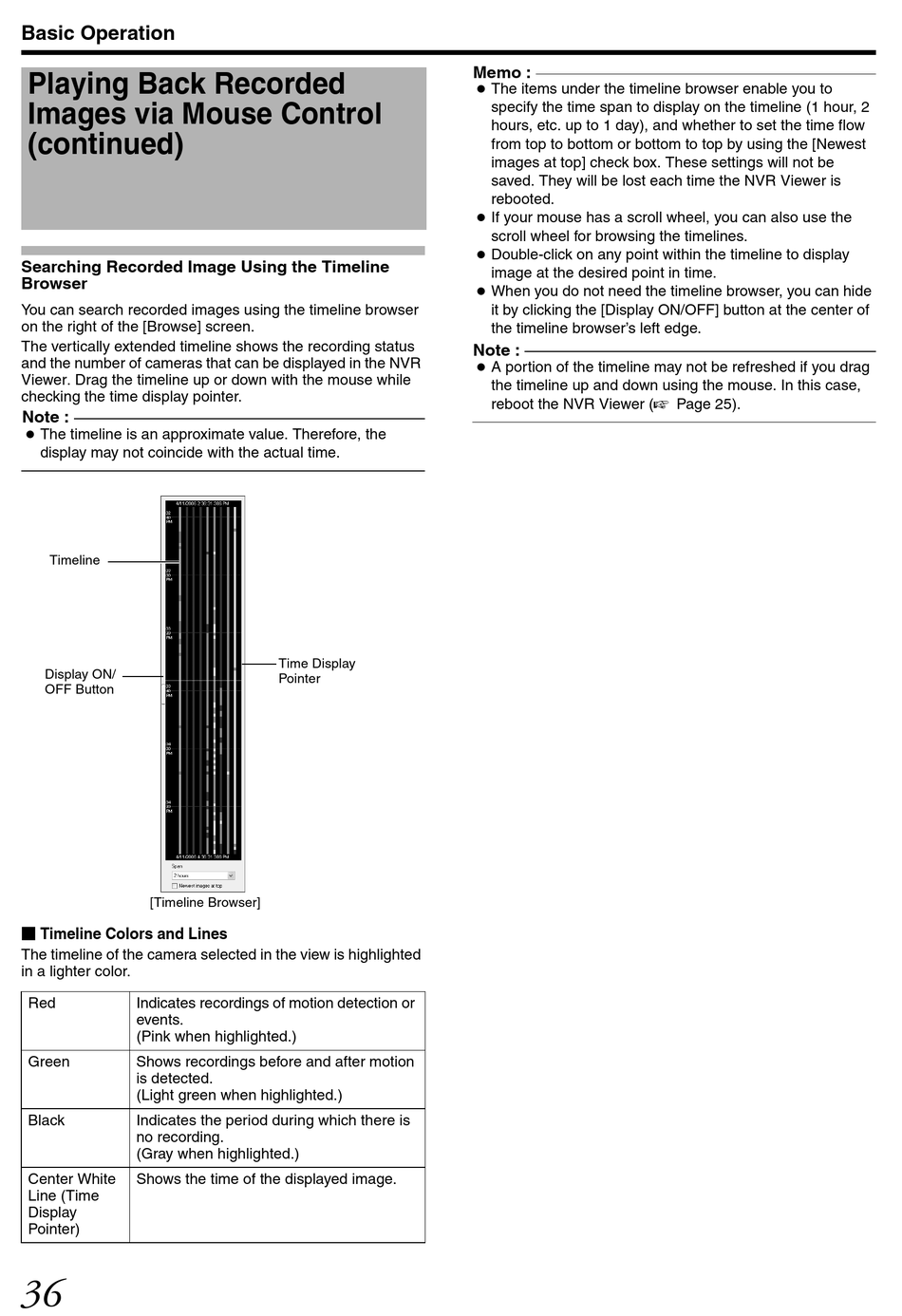

Searching Recorded Image Using the Timeline
Browser
You can search recorded images using the timeline browser
on the right of the [Browse] screen.
The vertically extended timeline shows the recording status
and the number of cameras that can be displayed in the NVR
Viewer. Drag the timeline up or down with the mouse while
checking the time display pointer.
Note :
● The timeline is an approximate value. Therefore, the
display may not coincide with the actual time.
Timeline
Display ON/
OFF Button
[Timeline Browser]
Timeline Colors and Lines
The timeline of the camera selected in the view is highlighted
in a lighter color.
Red Indicates recordings of motion detection or
events.
(Pink when highlighted.)
Green Shows recordings before and after motion
is detected.
(Light green when highlighted.)
Black Indicates the period during which there is
no recording.
(Gray when highlighted.)
Center White Shows the time of the displayed image.
Line (Time
Display
Pointer)
Time Display
Pointer
Memo :
● The items under the timeline browser enable you to
specify the time span to display on the timeline (1 hour, 2
hours, etc. up to 1 day), and whether to set the time flow
from top to bottom or bottom to top by using the [Newest
images at top] check box. These settings will not be
saved. They will be lost each time the NVR Viewer is
rebooted.
● If your mouse has a scroll wheel, you can also use the
scroll wheel for browsing the timelines.
● Double-click on any point within the timeline to display
image at the desired point in time.
● When you do not need the timeline browser, you can hide
it by clicking the [Display ON/OFF] button at the center of
the timeline browser's left edge.
Note :
● A portion of the timeline may not be refreshed if you drag
the timeline up and down using the mouse. In this case,
reboot the NVR Viewer (A Page 25).
