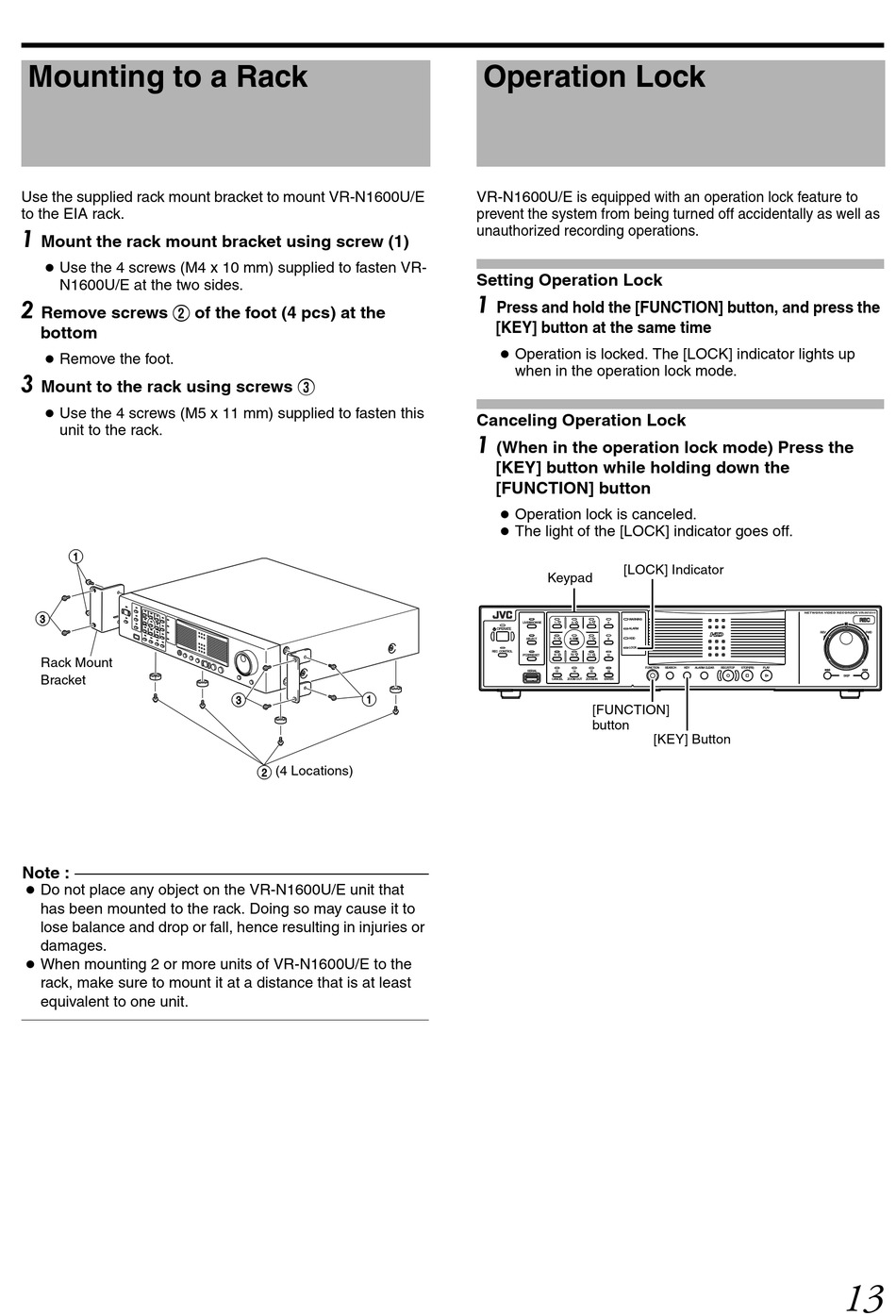

Mounting to a Rack

Use the supplied rack mount bracket to mount VR-N1600U/E
to the EIA rack.
1
Mount the rack mount bracket using screw (1)
● Use the 4 screws (M4 x 10 mm) supplied to fasten VR-
N1600U/E at the two sides.
2
Remove screws B of the foot (4 pcs) at the
bottom
● Remove the foot.
3
Mount to the rack using screws C
● Use the 4 screws (M5 x 11 mm) supplied to fasten this
unit to the rack.
Rack Mount
Bracket
Note :
● Do not place any object on the VR-N1600U/E unit that
has been mounted to the rack. Doing so may cause it to
lose balance and drop or fall, hence resulting in injuries or
damages.
● When mounting 2 or more units of VR-N1600U/E to the
rack, make sure to mount it at a distance that is at least
equivalent to one unit.
(4 Locations)

Operation Lock

VR-N1600U/E is equipped with an operation lock feature to
prevent the system from being turned off accidentally as well as
unauthorized recording operations.
Setting Operation Lock
1
Press and hold the [FUNCTION] button, and press the
[KEY] button at the same time
● Operation is locked. The [LOCK] indicator lights up
when in the operation lock mode.
Canceling Operation Lock
1
(When in the operation lock mode) Press the
[KEY] button while holding down the
[FUNCTION] button
● Operation lock is canceled.
● The light of the [LOCK] indicator goes off.
[LOCK] Indicator
Keypad
WARNING
LIVE/BROWSE
OPERATE ALARM
HDD
SELECT
LOCK
REC CONTROL
PTZ/PRESET
FUNCTION
SERIAL
CANCEL ZOOM OUT ZOOM IN ENTER
[FUNCTION]
button
REV
SEARCH KEY ALARM CLEAR REC/STOP STOP(PB) PLAY
[KEY] Button
FWD
SKIP
