Chapter 7
Pin

Cabling Rack Components

After installing the HP Netserver in the rack, refer to the white paper entitled
HP Netserver High Density Rack Solutions Overview (LP 1000r and LP 2000r)
to cable the components in the rack enclosure. The white paper is available on
HP's web site at the following URL:
http://www.hp.com/netserver/support
After cables are attached to the HP Netserver you can attach the Cable
Management Arm, as described in the next section.
Rack Mounting the HP Netserver (4-Post)

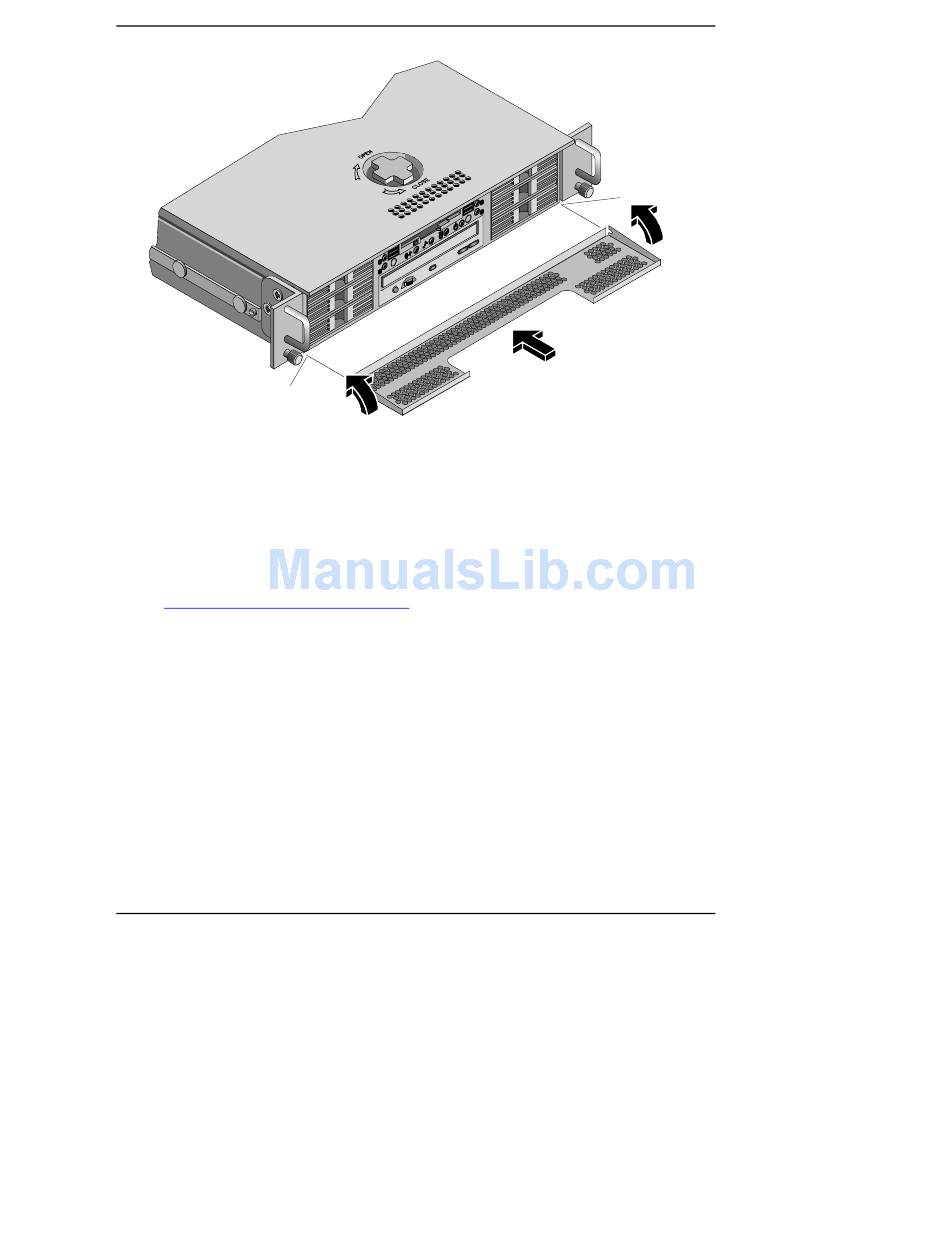

Figure 7-7. Attaching the Bezel
Pin
A
B
71
