HP D5970A - NetServer - LCII User Manual page 127

Chapter 13
2. Attach the brackets to the front columns, using the two screws provided in the
hardware kit. See Figure 13-4.

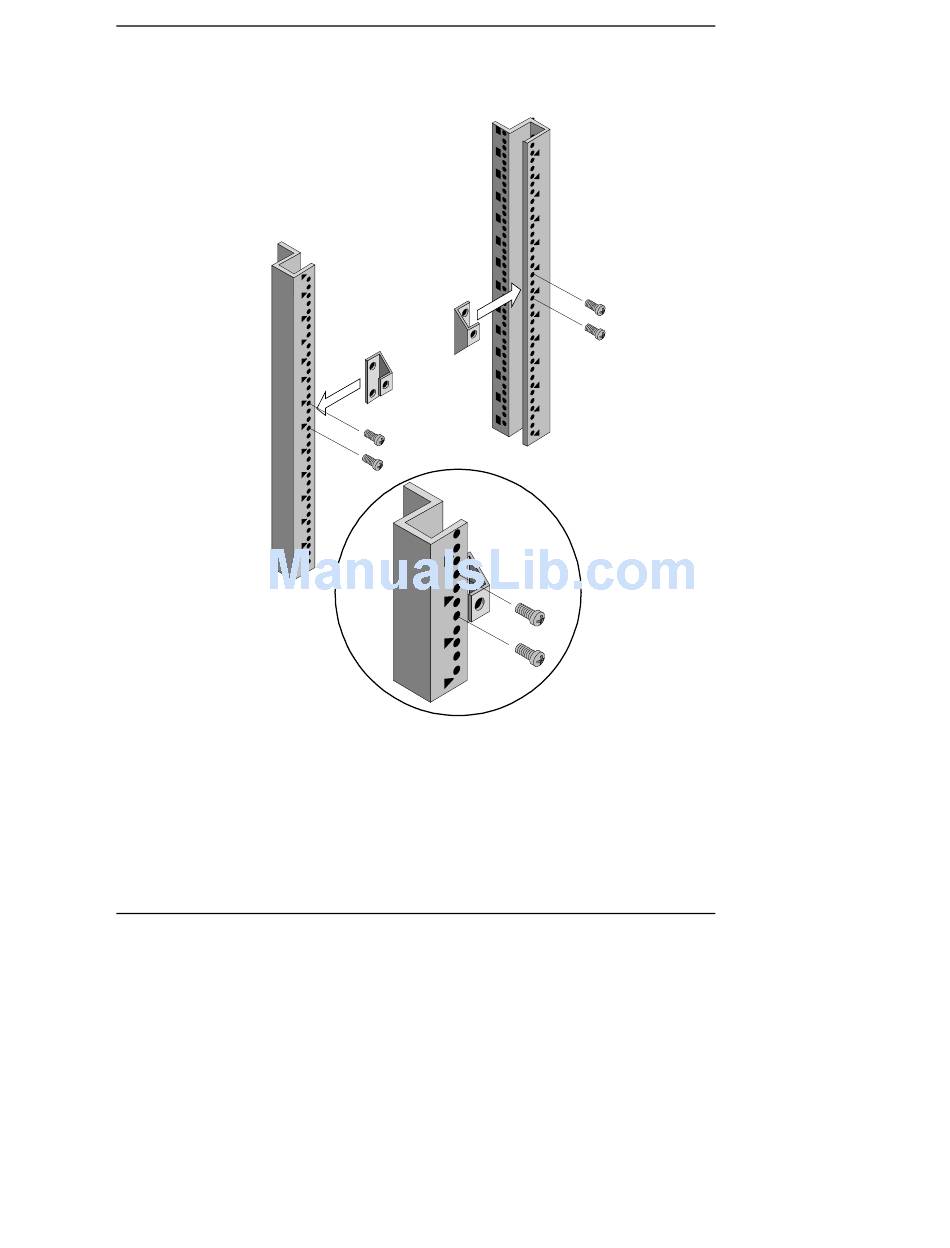

Figure 13-4. Attaching the Front Brackets to the Rack
3. Install the slides in the rack:
a. Insert the slide into the rack at the location you have marked on the front
and rear columns.
The slide bolts insert into the 2nd hole, counting from the base of the HP
Netserver.
Alternative Rack Mounting (4–Post)
121
