Chapter 5

Installing the 4 GB Memory Board

Once you have installed the SDRAM DIMMs required for your desired
configuration, do the following.
1. On the satellite chassis, locate the memory board slots.
2. Hold the 4 GB memory board by its corners, with the DIMM slots facing
up.
3. Being careful not to touch board components, ease the first memory board
into the top memory board slot and close the retaining latches on the front
of the memory board to seat it snugly. See Figure 5-7.
Satellite
Chassis
Retaining Clips

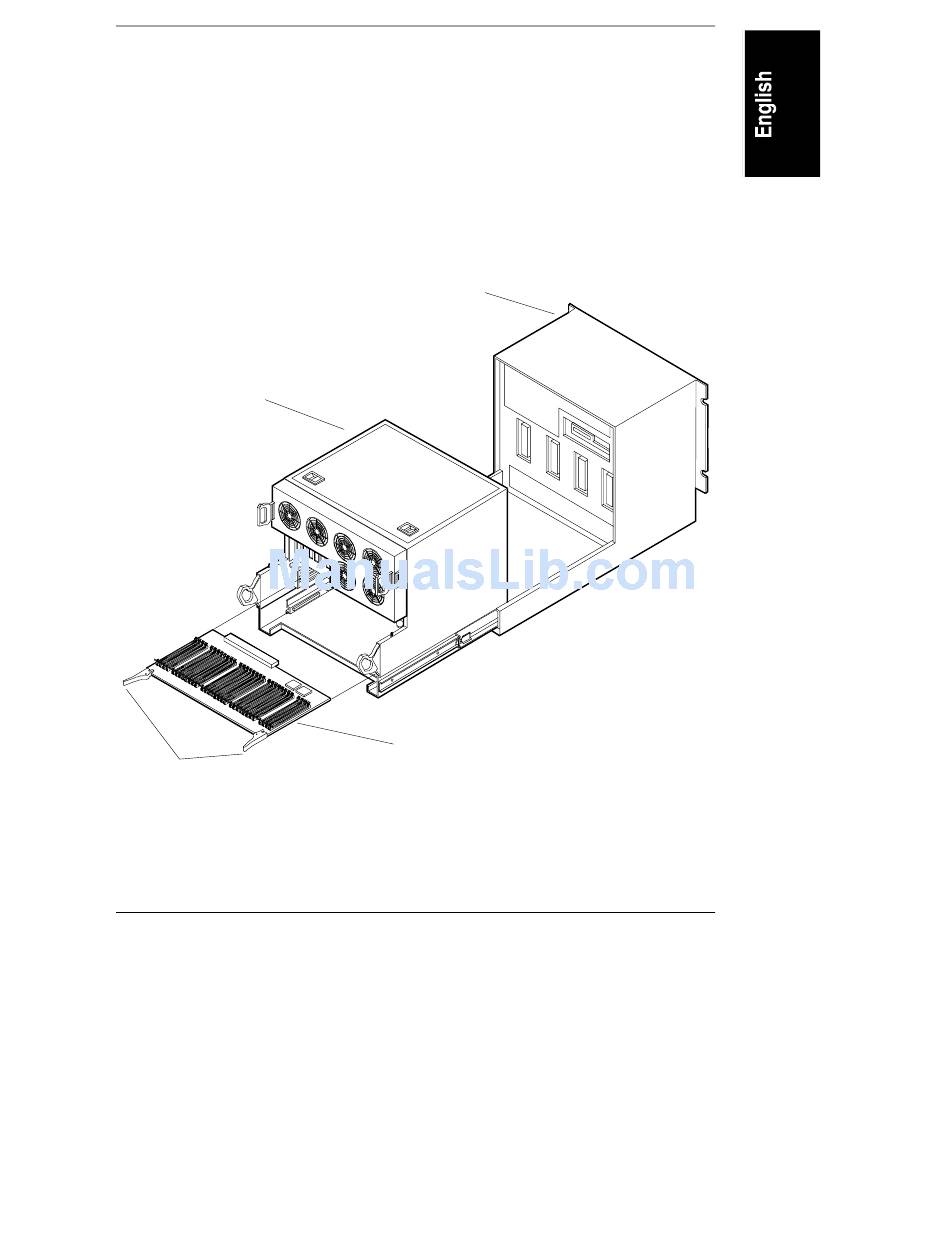

Figure 5-7. 4 GB Memory Board Installation
4. Install the second memory board in the lower slot.
5. Reattach the rear access panel.
Installing Additional Memory
Base Chassis
4 GB Memory Board
