Chapter 7
2. The front end of the rail has a flange with two threaded inserts for screws.
Position this flange behind the front face of the right-front column. The
inserts in the flange must line up with the center holes of the bottom two
EIA units reserved in the rack for the server.
Insert screws in
these holes

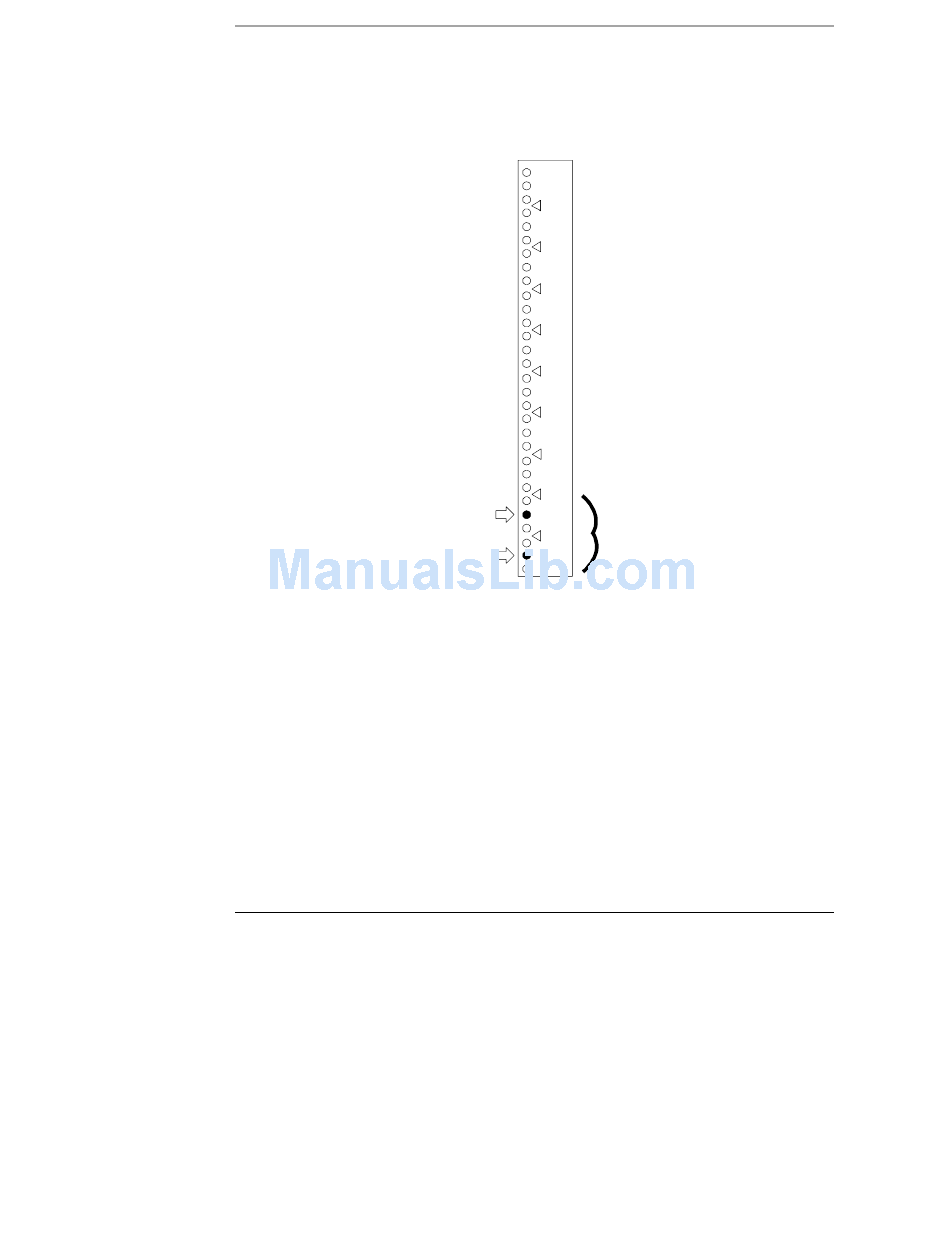

Figure 7-1. Location of Screws in the Rack's Front Column
3. Fasten the front of the rail to the rack with two10x32 Torx screws (Figure
7-2).
60
Mounting the Server in the Rack
Bottom two EIA
units to be occupied
by the server
