Chapter 5
The recommended memory configurations and the slot numbers where
SDRAM DIMMs are installed are listed in Figure 5-2 and Figure 5-3.
Add SDRAM DIMMs only in these quantities and in the specified slot
numbers.
Figure 5-1 shows the DIMM slot numbers on the 4 GB Memory Board.
M0 M4
Figure 5-2 shows memory configurations when one 4 GB Memory board is
installed. Figure 5-3 shows configurations when two 4 GB memory boards are
installed. The Figures show the recommended order in which DIMM slots are
filled as you add 128 MB SDRAM DIMMs to the 4 GB boards: An "X" indicates
that a SDRAM DIMM is installed in each of the slots shown:
36
M8 M12 M16

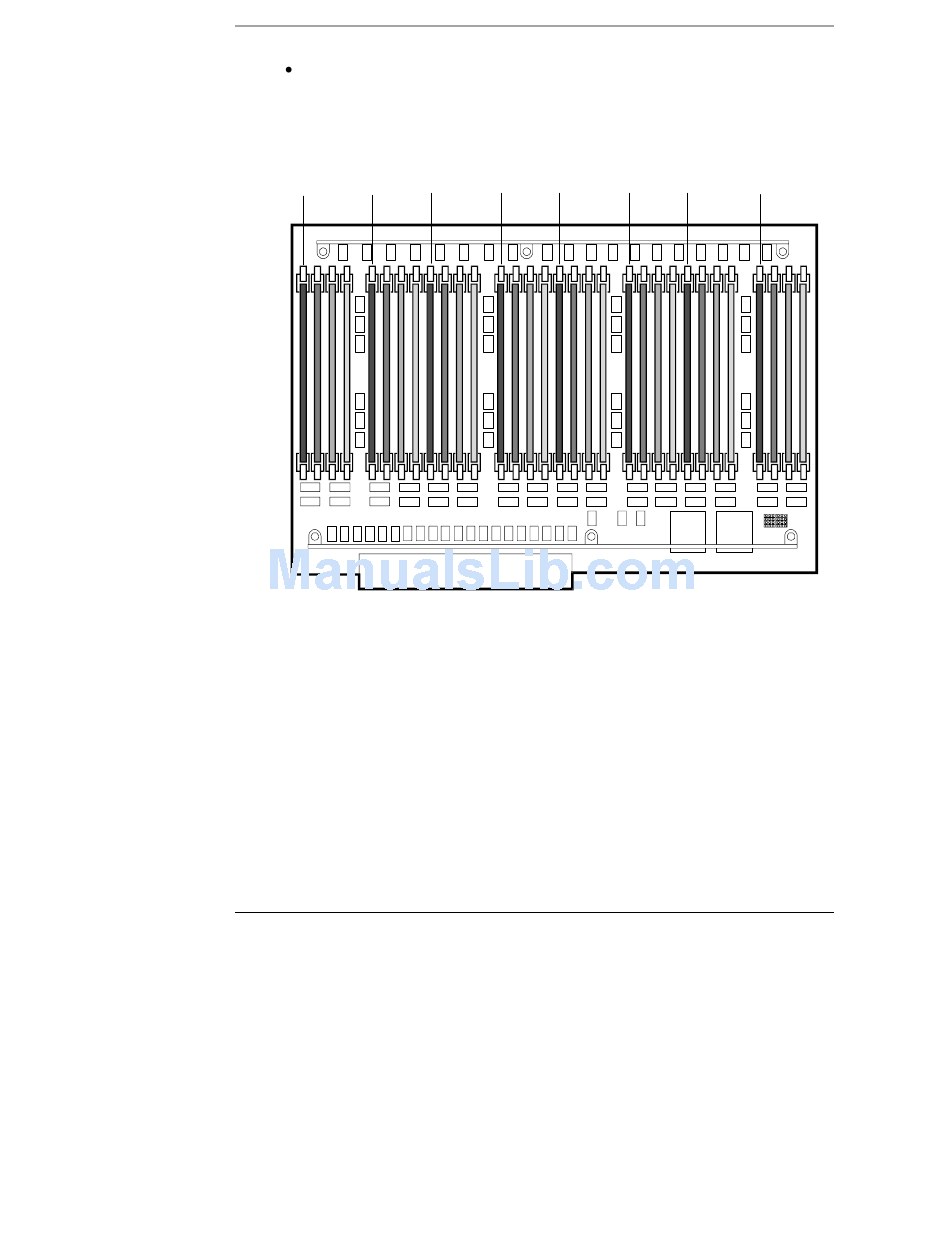

Figure 5-1. DIMM Slot Numbers
Installing Additional Memory
M20 M24 M28
