Chapter 6

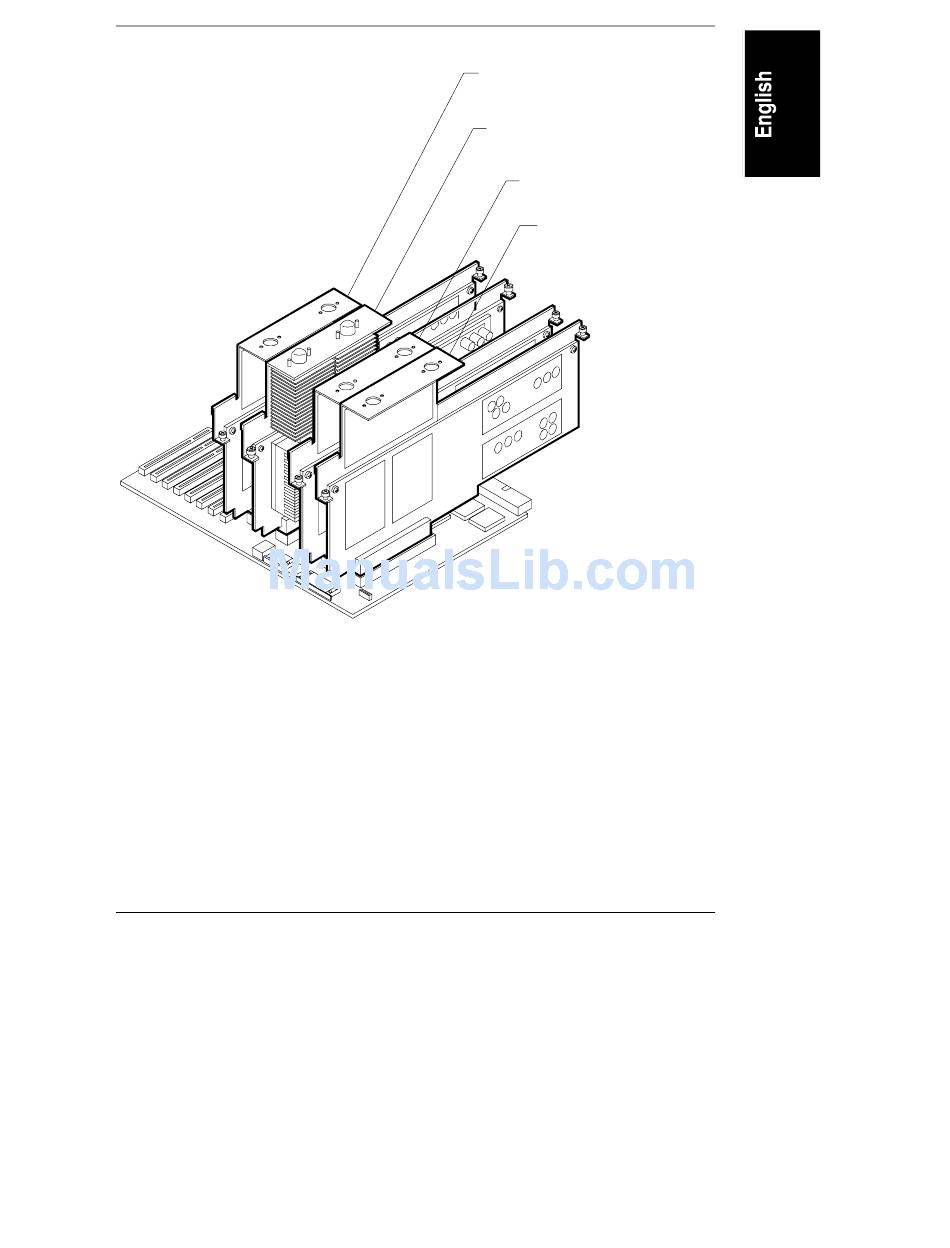

Figure 6-4. Processor and Terminator Boards on the System Board
8. Using a Phillips head screwdriver, unscrew the two mounting screws that
secure the terminator board in place.
9. Grasp the board you are removing, and lift firmly. Place it on the
antistatic mat.
10. If you are installing more than one 200 MHz/1MB processor board,
remove additional terminator boards as necessary.
Installing Additional Boards
Terminator in Slot A2
Processor Board in Slot A1
Terminator in Slot B2
Terminator in Slot B1
53
