Chapter 6
d. Embedded SCSI controllers 1 through 7. (These controllers are only
accessible in servers equipped with the optional SCSI Extender Board
accessory.)
e. PCI slots 1 through 8.
4. When you have selected a slot, remove its slot cover on the I/O panel.
5. Push the board down into its connector on the system board (Figure 6-2).
6. Screw the board's I/O bracket to the I/O panel.
7. If the board you added must be cabled to the system board or chassis,
make sure that the cable is properly attached. Refer to the board
documentation.
8. Close the top cover. (See Chapter 3.)

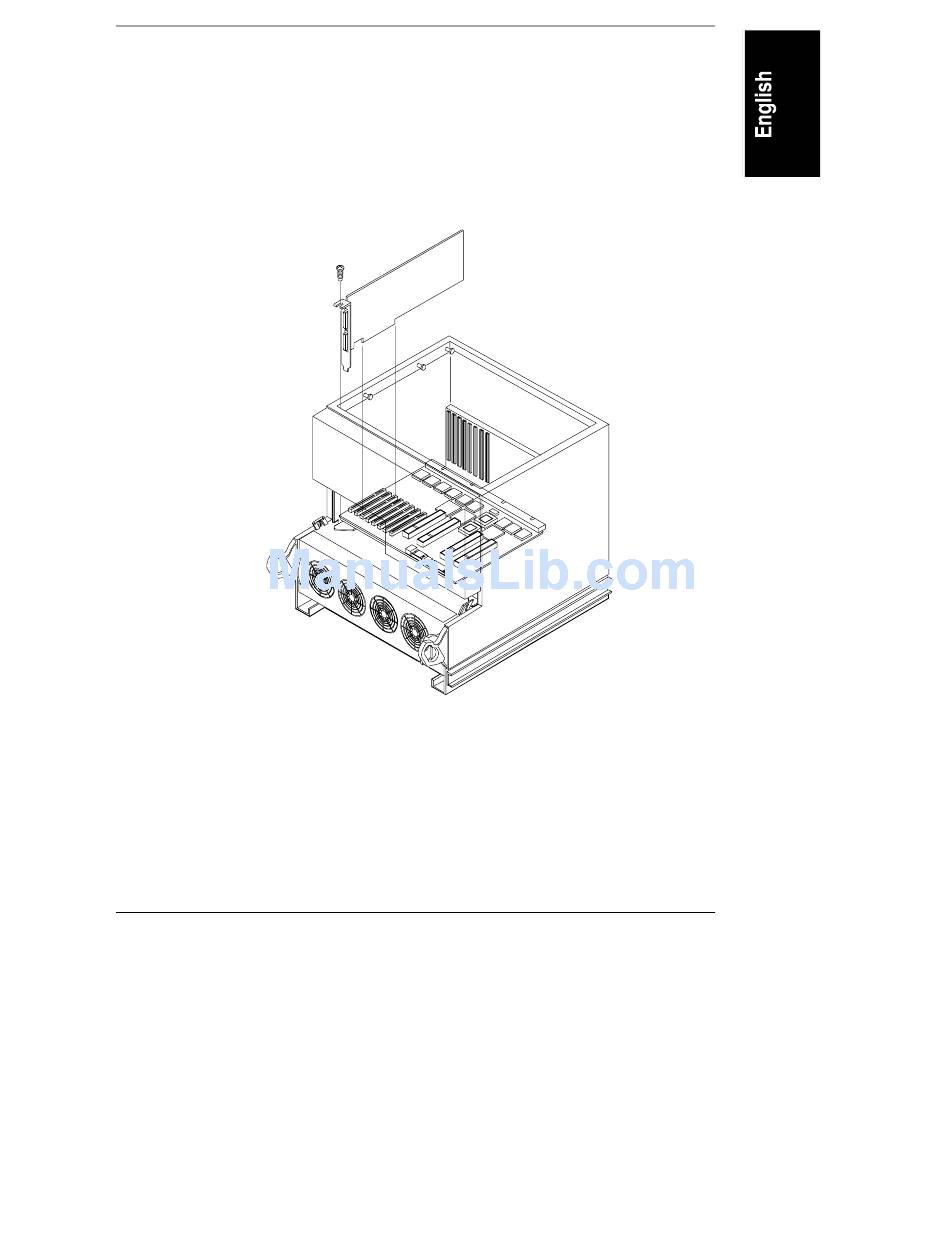

Figure 6-2. Inserting the Board
Installing Additional Boards
47
