Filling Empty Server System Bays

A filler panel, drive blank, or empty drive carrier must be installed into an empty drive
bay. To access the drive bays, remove the front bezel if it is installed. For instructions, see
"Removing the Front
blank, or empty hard drive bay(s) as described below.
•
If you do not have an optical drive installed in the slimline bay, install the slimline
filler panel.
•
Install empty hard drive carriers into any remaining empty hard drive bays.
46
B

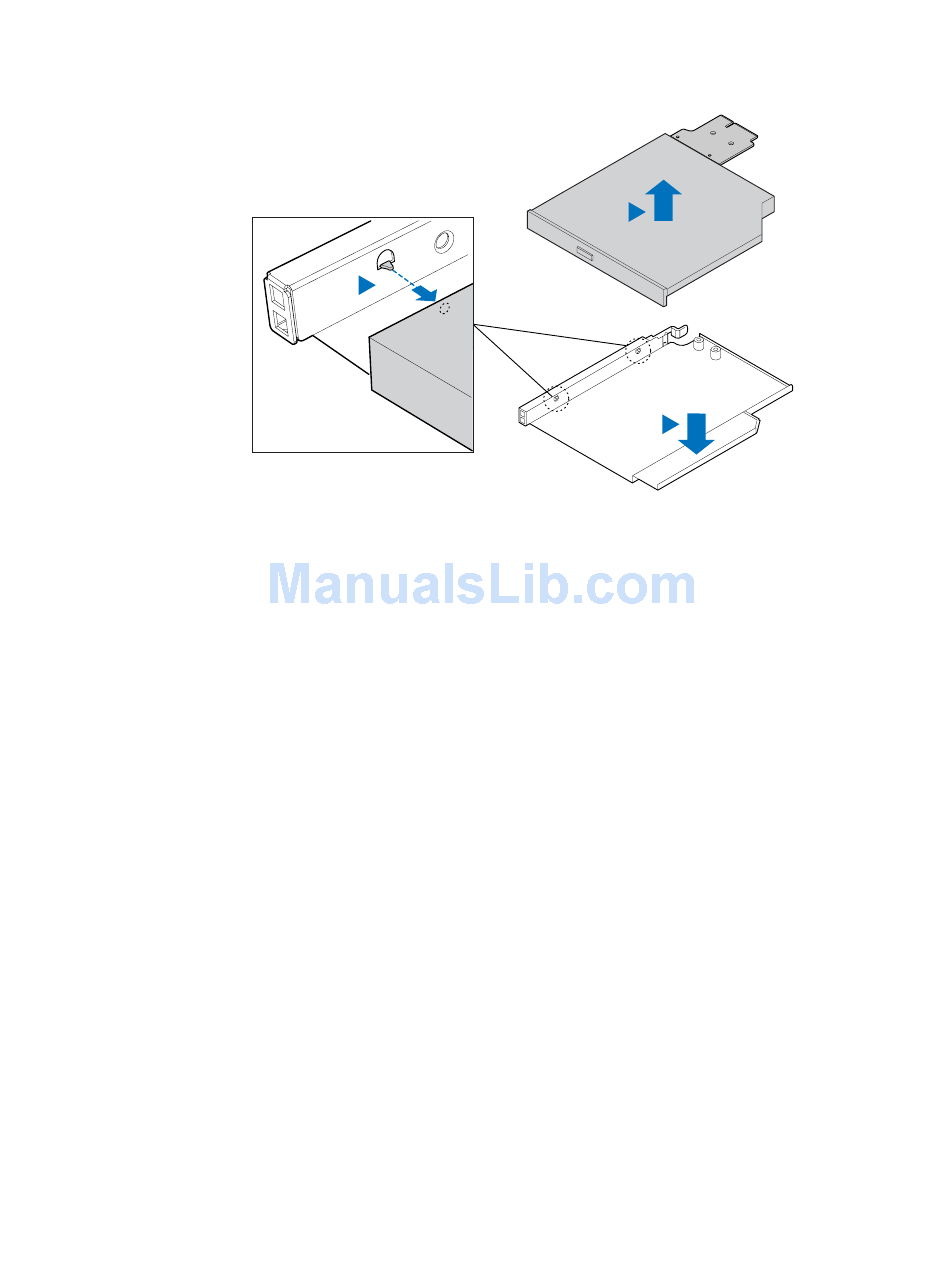

Figure 37. Removing the Slimline Optical Drive from the Tray

Bezel". With the bezel removed, install the appropriate panel(s),
C
A
®
Intel Server System SR1500AL User's Guide
AF000152
