Removing The I/O Expansion Module(S); Figure 45. Removing The I/O Expansion Module(S) From The Server Board - Intel SR1500AL - Server System - 0 MB RAM User Manual

7. Install the PCI riser assembly into the server system. For instructions, see
"Installing the PCI Riser
8. Install the processor air duct. For instructions, see
Duct".
9. Install the server system cover. For instructions, see
10. Plug all peripheral devices and the AC power cable(s) into the server.

Removing the I/O Expansion Module(s)

1. Observe the safety and ESD precautions at the beginning of this book. See
Information".
2. Power down the server and unplug all peripheral devices and the AC power
cable(s).
3. Remove the server system cover. For instructions, see
Cover".
4. Remove the PCI riser assembly. For instructions, see
Assembly".
5. Remove the I/O expansion module(s) from the server board (see letter "A" in the
figure below).
6. Remove the standoffs from the server board (see letter "B" in the figure below).
7. Install the I/O expansion module cover(s) into the system back panel (see letter "C"
in the figure below).

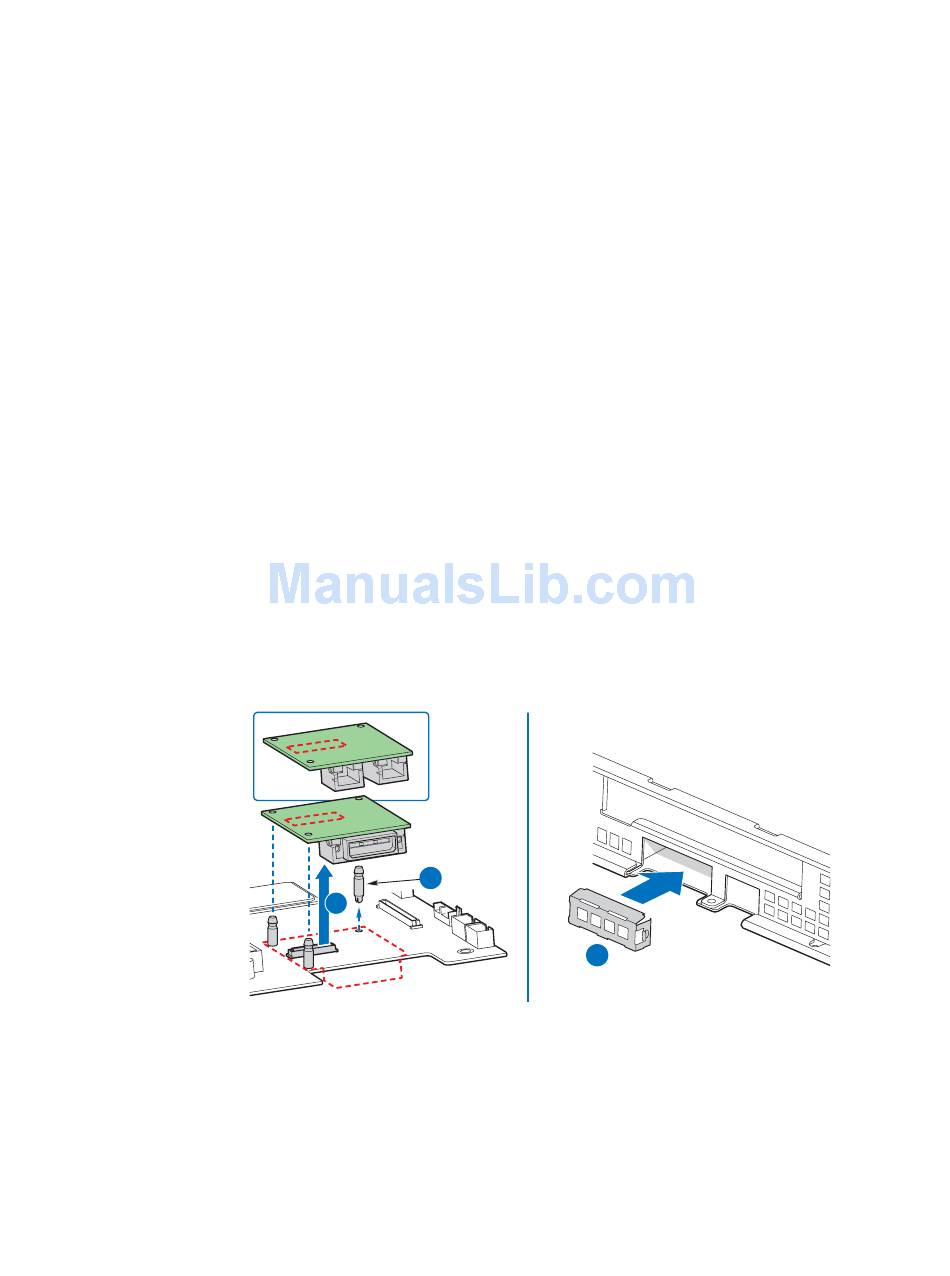

Figure 45. Removing the I/O Expansion Module(s) from the Server Board

8. Install the PCI riser assembly into the server system. For instructions, see
"Installing the PCI Riser
®
Intel Server System SR1500AL User's Guide
Assembly".
B
A
Assembly".
"Installing the Processor Air
"Installing the System
"Removing the System
"Removing the PCI Riser
C
Cover".
"Safety
AF000749
55
