Installing the PCI-X* Riser Card

1. Observe the safety and ESD precautions at the beginning of this book. See
Information".
2. Power down the server and unplug all peripheral devices and the AC power
cable(s).
3. Remove the server system cover. For instructions, see
Cover".
4. Remove the processor air duct. For instructions, see
Duct".
5. Disconnect any cables attached to any add-in cards.
6. Remove the PCI riser assembly. For instructions, see
Assembly".
7. Remove any add-in cards from the PCI riser connector. For instructions, see
"Removing a PCI Add-in
8. Press the hold the blue riser locking lever (see letter "A" in the figure below).
9. Place riser connector onto retention pins.
10. Slide the riser connector to the left of the riser module to lock it into place (see
letter "B" in the figure below).

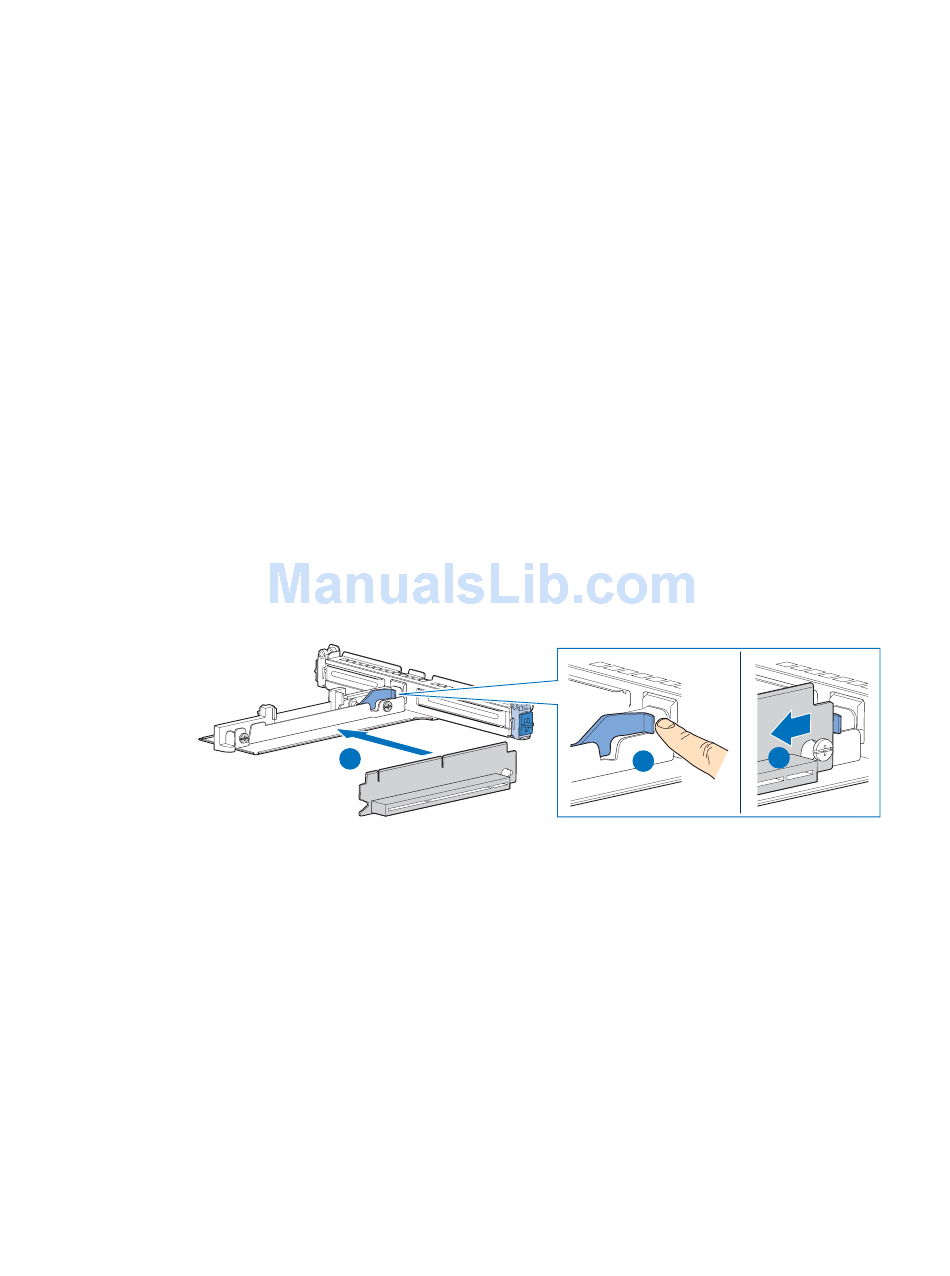

Figure 41. Installing the PCI-X* Riser Card into the Server System

11. Release the blue locking lever.
12. Install the PCI add-in card(s) if desired. For instructions, see
in
13. Install the PCI riser assembly into the server system. For instructions, see
"Installing the PCI Riser
14. Connect any cables to add-in cards that require them. See your add-in card
documentation for information and add-in card requirements.
15. Re-install the processor air duct. For instructions, see
Duct".
®
