Figure 23. Installing The Memory - Intel SR1500AL - Server System - 0 MB RAM User Manual

6. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position (see letter "A" in the figure above).
7. Holding the DIMM by the edges, remove it from its anti-static package.
8. Position the DIMM above the socket. Align the notch on the bottom edge of the
DIMM with the key in the DIMM socket. The arrow in the inset in
pointing to the key in the socket (see letter "B" in the figure above).
9. Insert the bottom edge of the DIMM into the socket.
10. When the DIMM is inserted, push down on the top edge of the DIMM until the
retaining clips snap into place (see letter "C" in the figure above). Make sure the
clips are firmly in place (see letter "D" in the figure above).
32
C
D
A

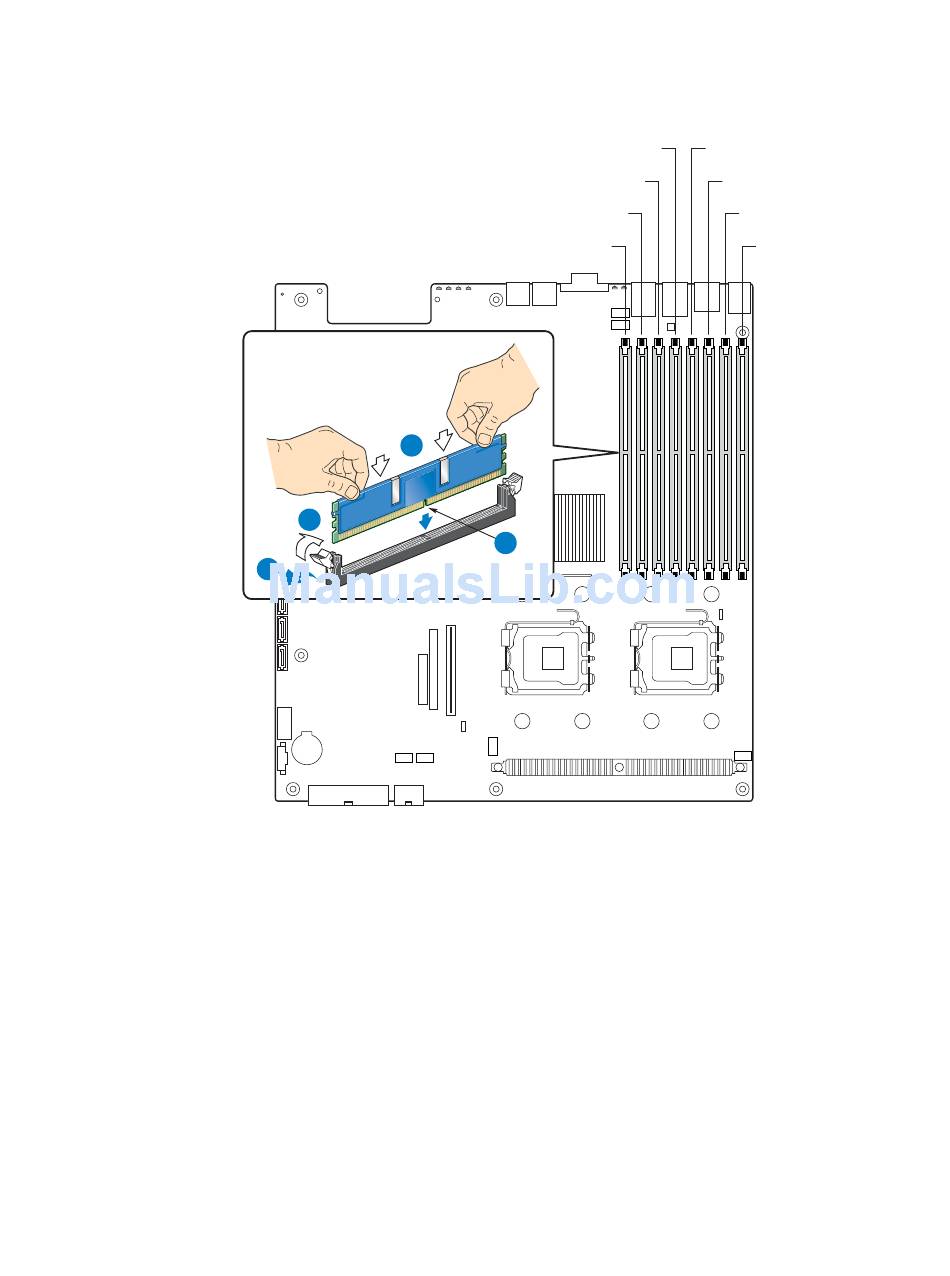

Figure 23. Installing the Memory

DIMM B2
Socket
DIMM B1
Socket
DIMM A2
Socket
DIMM A1
Socket
B
®
Intel Server System SR1500AL User's Guide
DIMM C1
Socket
DIMM C2
Socket
DIMM D1
Socket
DIMM D2
Socket
TP02072
Figure 23 is
