Figure 32. Installing Hard Drive Into Carrier; Figure 33. Install Drive Assemby Into The Server System - Intel SR1500AL - Server System - 0 MB RAM User Manual

9. With the black lever in the fully open position, slide the drive assembly into the
server system. The green latch at the front of the drive carrier must be to the right.
Do not push on the black drive carrier lever until the lever begins to close by itself.
10. When the black drive carrier lever begins to close by itself, push on it to lock the
drive assembly into place.
11. Install the server system cover. For instructions, see
12. (Optional) Install the front bezel. For instructions, see
13. Plug all peripheral devices and the AC power cable(s) into the server.
®
Intel Server System SR1500AL User's Guide
A

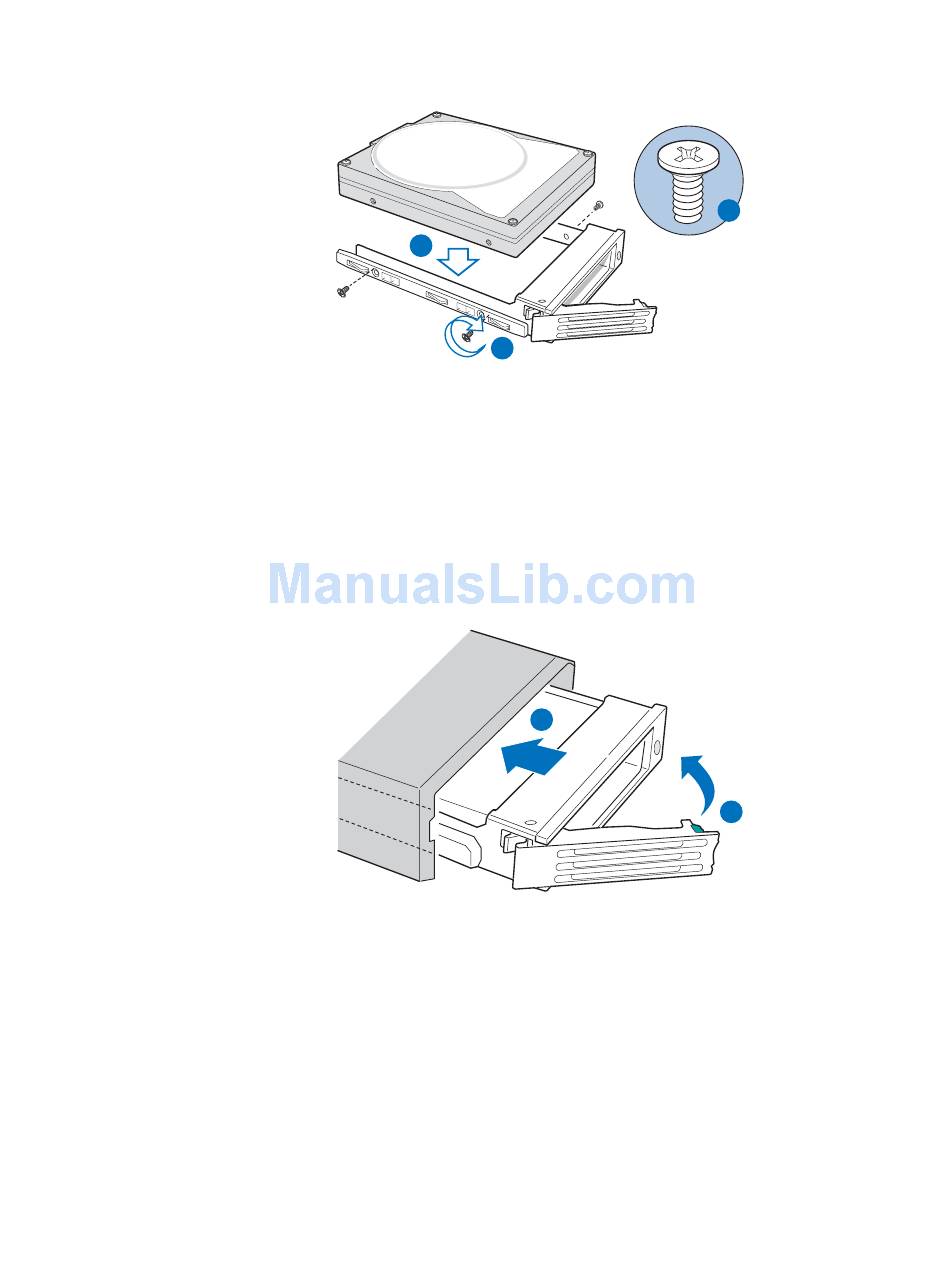

Figure 32. Installing Hard Drive into Carrier

Figure 33. Install Drive Assemby into the Server System

B
B
"Installing the System
"Installing the Front
B
TP02208
A
TP02209
Cover".
Bezel".
41
