Figure 64. Clear Cmos Jumper - Intel SR1500AL - Server System - 0 MB RAM User Manual

2
3
J1D2
4. Wait five seconds.
5. Return the CMOS Clear jumper to the CMOS Clear by BMC location, covering
pins 1 and 2.
6. Close the server chassis.
7. Reconnect the AC power and power up the system.
8. The CMOS is now cleared and can be reset by going into the BIOS setup.
78
BMC Force
Update Mode
Disable
2
Password
Enable
Reset
3
J1D1
2
Clear
CMOS
3
J1D3

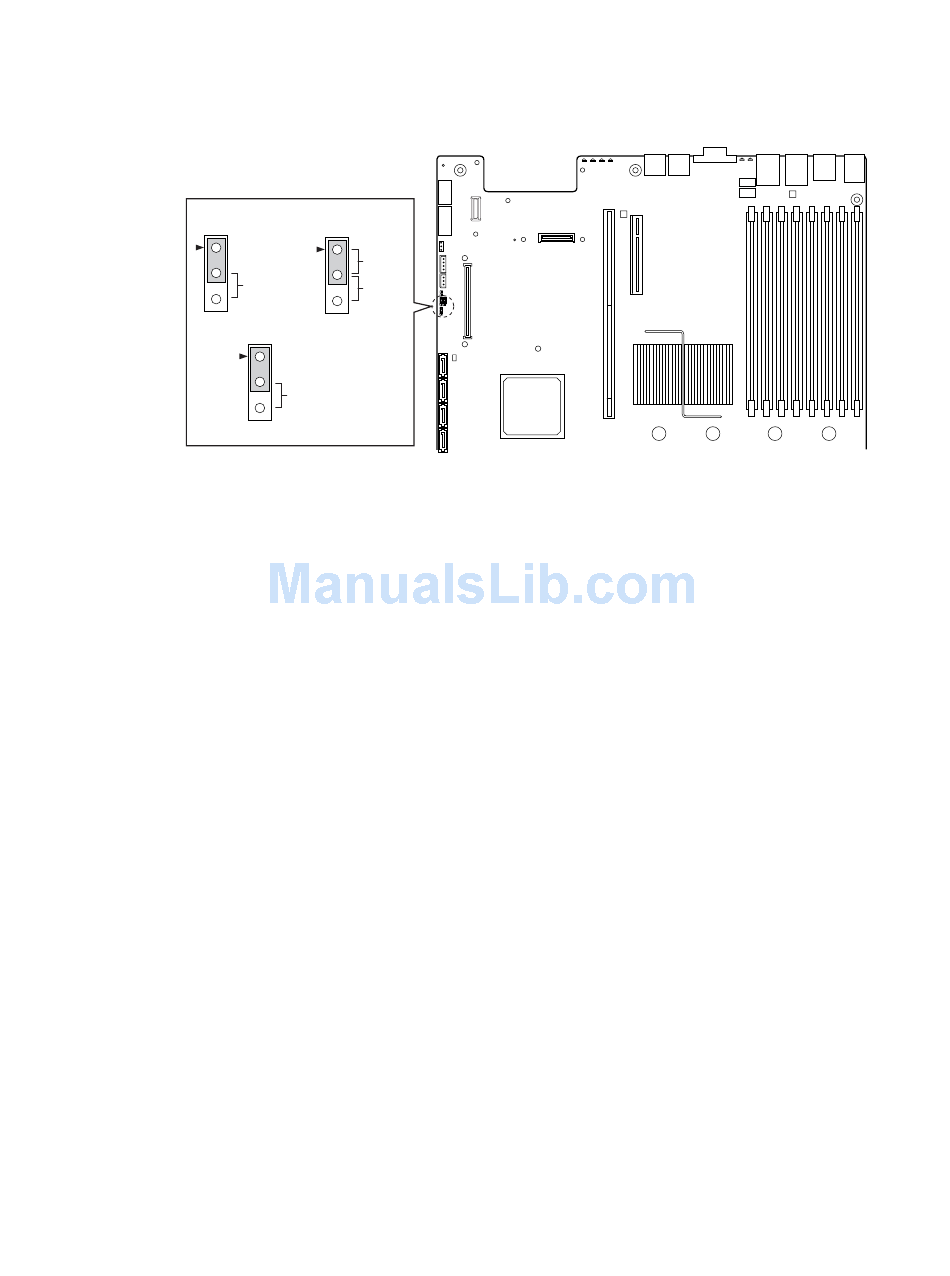

Figure 64. Clear CMOS Jumper

®
Intel Server System SR1500AL User's Guide
TP02080
