Front of Server System

Standard Control Panel

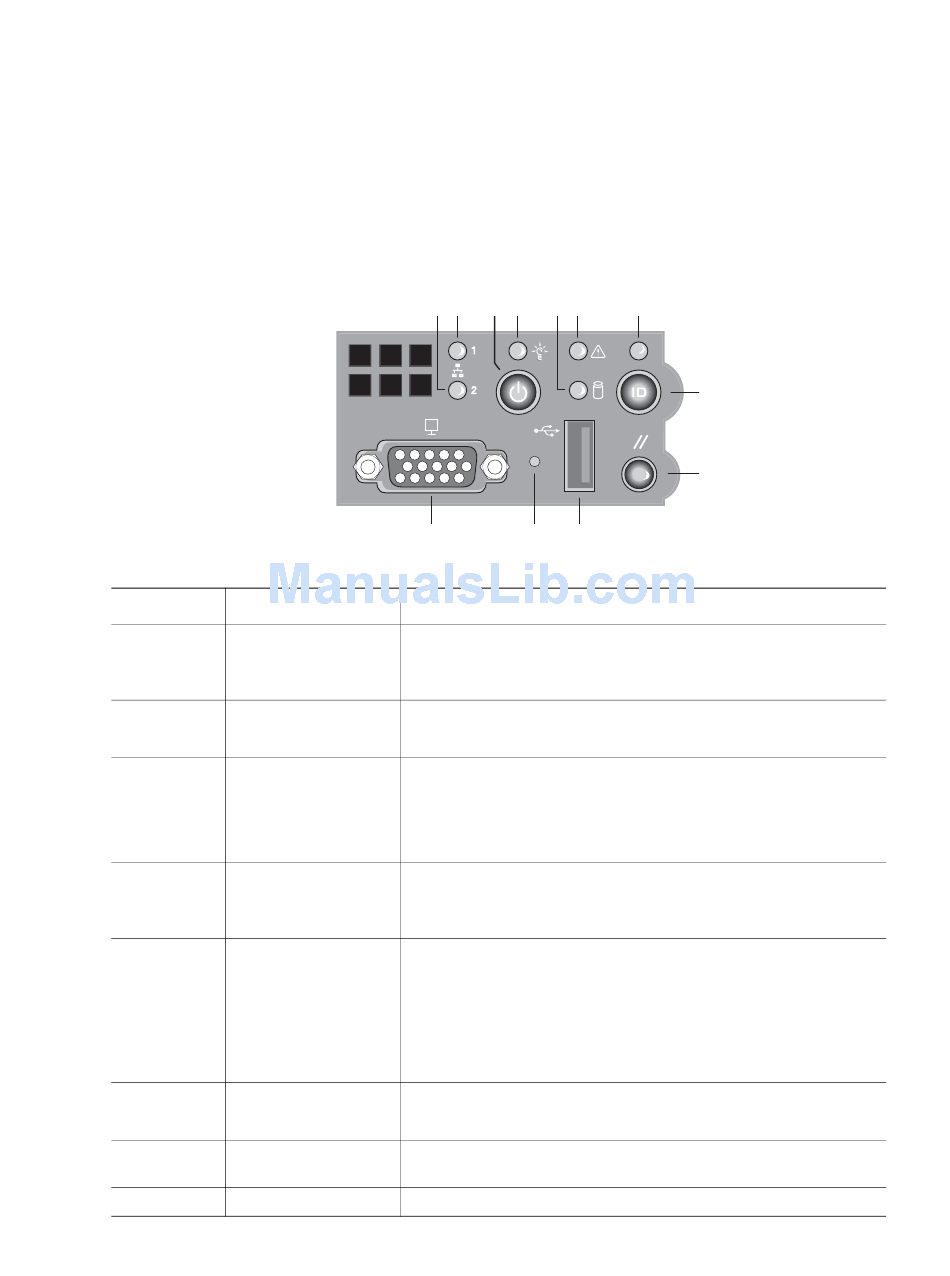

The diagram below shows the features available on the standard control panel. Another
option is the Intel
Callout
A.
B.
C.
D.
E.
F.
G.
H.
I.
14
®
Local Control Panel, which is discussed next.
Feature
NIC 2 Activity LED Continuous green light indicates a link between the system and
the network to which it is connected.
NIC 1 Activity LED
Blinking green light indicates network activity.
Power/Sleep Button Powers on/off the system.
Puts the system in an ACPI sleep state.
Power/Sleep LED Continuous green light indicates the system has power applied to
it.
Blinking green indicates the system is in S1 sleep state.
No light indicates the power is off / is in ACPI S4 or S5 state.
Hard Disk Drive Random blinking green light indicates hard disk drive activity (SAS
Activity LED or SATA).
No light indicates no hard disk drive activity.
System Status LED Solid green indicates normal operation.
Blinking green indicates degraded performance.
Solid amber indicates a critical or non-recoverable condition.
Blinking amber indicates a non-critical condition.
No light indicates POST is running or the system is off.
System Identification Solid blue indicates system identification is active.
LED
No light indicates system identification is not activated.
System Identification Turns on/off the system identification LED.
Button
Reset Button Reboots and initializes the system.
