Intel® Server Chassis SC1400UP / Intel® Server Platform SR1425BK1-E
2.
Cooling Sub-System
The cooling sub-system on the SC1400UP is compromised of four 40x40x56mm dual rotor fans,
one 40x40x28mm single rotor fan, two 40x40x28mm power supply fans, CPU/Memory air duct,
and PS/Electronics Bay Isolation Air Baffle, to provide the necessary cooling and airflow to the
system. A fan on the processor heat sink is not necessary in this chassis. In order to maintain
the necessary airflow within the system, the air baffle, CPU/Memory air duct, and the top cover
need to be properly installed.
Note: The Server Chassis SC1400UP does not support redundant cooling. Should a fan fail, the
system should be brought down as soon as possible to replace the failed fan.

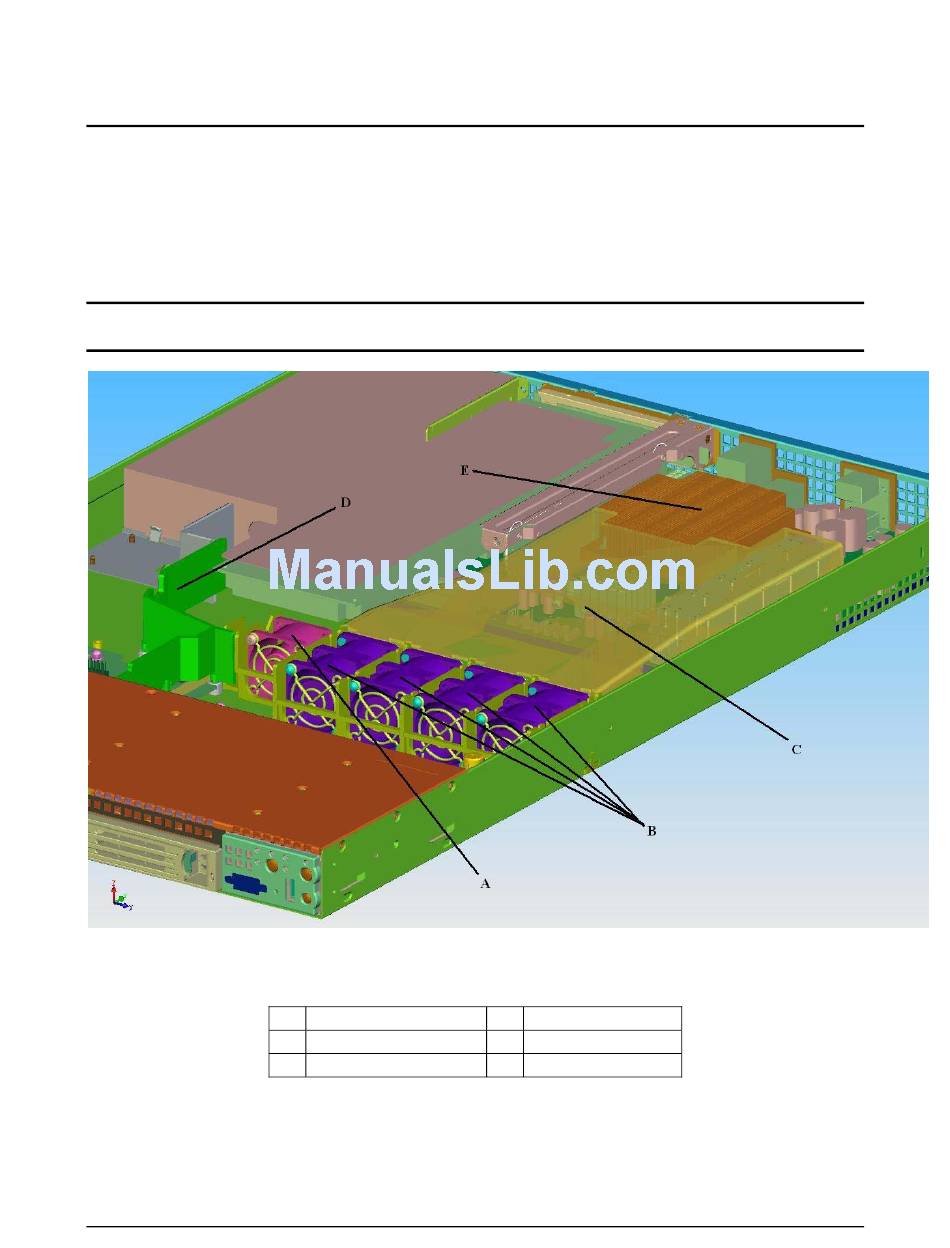

Figure 9. Intel® Server Chassis SC1400UP Cooling Subsystem
Revision 1.0
A
System Fan #4
B
Fans 5, 6, 7, 8
C
CPU / Memory Air Duct
D
Air Baffle
E
CPU Heat Sink
- 20 -
