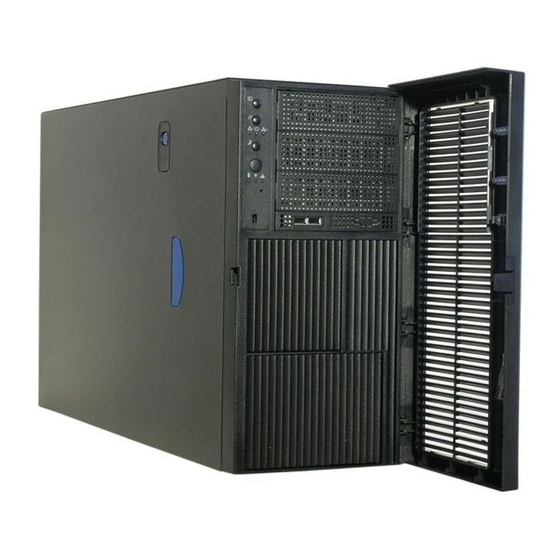

Intel SC5300BRP Technical Product Specification

Server chassis 5u kit
Hide thumbs Also See for SC5300BRP:
Table of Contents

Advertisement

Quick Links

Intel® Server Chassis
SC5300 5U Kit
Technical Product Specification
C67699-002
Revision 1.31
January, 2006
Enterprise Platforms and Services Marketing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC5300BRP and is the answer not in the manual?

Questions and answers

Related Manuals for Intel SC5300BRP

Summary of Contents for Intel SC5300BRP

  • Page 1 Intel® Server Chassis SC5300 5U Kit Technical Product Specification C67699-002 Revision 1.31 January, 2006 Enterprise Platforms and Services Marketing...

  • Page 2: Revision History

    Intel Corporation server baseboards contain a number of high-density VLSI and power delivery components that need adequate airflow to cool. Intel’s own chassis are designed and tested to meet the intended thermal requirements of these components when the fully integrated system is used together. It...

  • Page 3: Table Of Contents

    Introduction Intel® Server Chassis SC5300 5U Kit TPS Table of Contents 1. Introduction ......................12 ® Intel Server Chassis SC5300 Design Features ........12 ® Intel Server Chassis SC5300BASE Summary ......... 14 ® Intel Server Chassis SC5300BRP Summary..........15 ®...
  • Page 4 Intel® Server Chassis SC5300 5U Kit TPS Introduction 3.1.8 Mean Time Between Failures (MTBF) ............32 730-W Power Supply ................. 32 3.2.1 730W Power Supply Mechanical Outline ........... 33 3.2.2 Output Wire Harness ................34 3.2.3 Airflow Requirements and Temperature Rise ..........34 3.2.4...
  • Page 5 Introduction Intel® Server Chassis SC5300 5U Kit TPS FAN Header Connector Descriptions ............52 5. Hard Disk Drive Bays .................... 53 Server Chassis SC5300 4HDD and 6HDD SCSI HSBP Overview .... 53 5.1.1 SCSI Enclosure Management Controller ........... 53 5.1.2 SCSI Interface....................
  • Page 6 Intel® Server Chassis SC5300 5U Kit TPS Introduction 5.2.9 Clock Generation and Distribution ............. 68 5.2.10 7-Pin SATA/SAS Connector – Drive0-Drive5..........69 5.2.11 IPMB Header - IPMB ................. 69 5.2.12 SATA/SAS Host I C Header - I2C_1............70 5.2.13 Power Budget .................... 70 5.2.14 Board Layout....................
  • Page 7 11.4.4 Europe (CE Declaration of Conformity)............92 11.4.5 Japan EMC Compatibility................92 11.4.6 BSMI (Taiwan) ................... 93 Appendix A: Intel® Server Chassis SC5300 Spares and Accessories ....94 Appendix B: Intel® Server Chassis SC5200, SC5250-E, SC5275-E and SC5300 Common Spares & Accessories Components ............98...
  • Page 8 Intel® Server Chassis SC5300 5U Kit TPS Introduction Appendix C: Errata and Integration Notes ............... 99 Reference Documents ....................100 Revision 1.31...
  • Page 9 Figure 17. Intel® Server Chassis SC5300 6-HDD SATA/SAS Hot Swap Backplane Block Diagram ......................62 Figure 18. Intel® Server Chassis SC5300 6-HDD SATA/SAS Hot Swap Backplane I Bus Connection Diagram ..................64 Figure 19. Intel® Server Chassis SC5300 6-HDD SATA/SAS Hot Swap Backplane Board Layout......................
  • Page 10 Intel® Server Chassis SC5300 5U Kit TPS Introduction Figure 29. 90-mm Hot Swap 5-pin Cable Connector............ 81 Figure 30. Hot Swap 8-pin (8 CM) Fan Cable Connectors ........... 81 Figure 31. 8-pin (12 CM) Fan Connector..............82 Figure 32. SCSI Cable 4-Drive Bay................82 Figure 33.
  • Page 11 Introduction Intel® Server Chassis SC5300 5U Kit TPS List of Tables Table 1. Intel® Server Chassis SC5300BASE, SC5300BRP, and SC5300LX Features12 Table 2. Product Matrix ....................15 Table 3. Chassis Dimensions and Weights ..............17 Table 4. System Color Code ..................17 Table 5.
  • Page 12 Table 42. Front Panel JP2 Pin-out Descriptions............74 Table 43. Front Panel J1 and J2 I C Pin-out ..............75 Table 44. Intel® Server Chassis SC5300 System Cables..........79 Table 45. USB Connector Pin-out ................80 Table 46. MTBF Calculations ..................87 Table 47.

  • Page 13: Introduction

    The following table lists the features for the SC5300BASE, SC5300BRP, and SC5300LX configurations. Table 1. Intel® Server Chassis SC5300BASE, SC5300BRP, and SC5300LX Features Intel® Server Chassis Intel® Server Chassis Intel®...
  • Page 14 Intel® Server Chassis SC5300 5U Kit TPS Introduction Intel® Server Chassis Intel® Server Chassis Intel® Server Chassis SC5300BASE SC5300BRP SC5300LX Includes one (1) tool-less Includes one (1) tool-less Includes one (1) tool-less Drive Bays fixed drive bay for up to...

  • Page 15: Intel Server Chassis Sc5300Base Summary

    Intel Server Chassis SC5300BASE Summary The Intel® Server Chassis SC5300BASE is designed to address the entry-level market. It includes a fixed single 600-W Power Factor Correction (PFC) non-redundant power supply, which supports up to six hard drives. Two tachometer output fans are mounted in front of the server board.

  • Page 16: Intel ® Server Chassis Sc5300Brp Summary

    Server Chassis SC5300BRP supports the redundant power capability of the SC5300LX configuration and the fixed fan features of the SC5300BASE configuration. The SC5300BRP configuration includes a single 730-W PFC power supply module. Two tachometer output fans are mounted in front of the server board. When populating the server chassis with a single power supply, the power supply must be populated in the first power supply bay.
  • Page 17 Introduction Intel® Server Chassis SC5300 5U Kit TPS Redundant SATA/SAS optional Second power Rack accessory module is optional. Conversion 730-W 4-SCSI is available Kit is an Requires one power accessory. cord per module. Revision 1.31...

  • Page 18: Chassis Features

    Weight 36.2 kg 36.2 kg Base 34.6 kg 34.6 kg System Colors The Intel® Server Chassis SC5300 is offered in one color configuration, black. Table 4. System Color Code Manufacturer Color Code Black GE701 2.2.1 Pedestal and Rack Mount Features The standard pedestal front bezel is a molded plastic door covering all drive bays.

  • Page 19: Security

    Note: See the appropriate Server Board Technical Product Specification on the ® support.intel.com website for a description of BIOS and Intel Server Management security features. Intrusion switches are provided allowing server management ®...

  • Page 20: Standard And Optional Hot Swap Drive Bays

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Features Standard and Optional Hot Swap Drive Bays One fixed bay, supporting six cabled drives, ships with the standard chassis. An optional four- drive bay for cabled (fixed) drives is available. Optional four- and six-drive hot swap bays are also available and may be installed to replace either the six- or four-drive fixed bays.

  • Page 21: Chassis Views

    Chassis Features Intel® Server Chassis SC5300 5U Kit TPS Chassis Views Fixed Power Supply PCI Add-in Card Panel Upper Air Duct Lower Air Duct Fixed Fans (2) HDD Cage Release Mechanisms (2) Front Panel Control 5.25" Device Bays (3) Front Panel USB/Serial B Fixed Drive Cage - 4 Drive ®...

  • Page 22: Figure 5. Rack Configuration With Sub-Bezel And Right Side Panel Removed

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Features Figure 5. Rack Configuration with Sub-bezel and Right Side Panel Removed Revision 1.31...

  • Page 23: Chassis Power Subsystem

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem The Server Chassis SC5300 power supplies are Server System Infrastructure (SSI) compliant. The SSI specifications may be found at the following website: www.ssifourm.org. Both the 600- W and 730-W power supplies have identical power supply wire harness cable lengths to peripheral bays and server board.

  • Page 24: Output Wire Harness

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem Note: All dimensions are in mm. 3.1.2 Output Wire Harness ° Listed or recognized component appliance wiring material (AVLV2), CN, rated min 105 300VDC shall be used for all output wiring. Cable length, connector number and description are identical for both the 600-W and 730-W power supplies.

  • Page 25: Table 5. 600-W And 730-W Power Supply Cable Lengths

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS Table 5. 600-W and 730-W Power Supply Cable Lengths Length Number From connector Description (mm) of pins Power Supply cover exit Baseboard Power Connector hole Power Supply cover exit Processor Power Connector...

  • Page 26: Figure 6. Output Cable Harness For 600-W And 700-W Power Supplies

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem Notes: (1) All dimensions are in mm. (2) All tolerances are +15-0mm. 3. (3) Install 1 tie wrap within 12 mm of PSU case. (4) Mark reference designator on each connector. (5) Tie wrap each harness at approximately mid point or point shown.

  • Page 27: Table 6. Baseboard Power Connector P1 Pin-Out

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS 3.1.2.1 Baseboard power connector (P1) Connector housing: 24-Pin Molex* Mini-Fit Jr. 39-01-2245 or equivalent Contact: Molex Mini-Fit, HCS, Female, Crimp 44476 or equivalent Table 6. Baseboard Power Connector P1 Pin-out...

  • Page 28: Table 8. Power Signal Connector P13

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem Signal 18 AWG color Signal 18 AWG Color 12V2 RS Yellow (24AWG) 3.1.2.3 Power Signal Connector (P13) Connector housing: 5-pin Molex 50-57-9405 or equivalent Contacts: Molex 16-02-0087 or equivalent Table 8. Power Signal Connector P13...

  • Page 29: 600-W Power Supply Airflow And Temperature Rise

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS 3.1.2.5 Floppy Power Connector (P6) Connector housing: Amp 171822-4 or equivalent Contact: Amp 170204-1 contact or equivalent Table 10. Floppy Power Connector P6 Signal 22 AWG Color +5VDC Black Black...

  • Page 30: Table 12. Ac Input Ratings

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem 3.1.4.1 AC Inlet Connector The AC input connector is an IEC 320 C-14 power inlet. This inlet is rated for 10A / 250VAC. 3.1.4.2 AC Input Voltage Specification The power supply operates within all specified limits over the following input voltage range (see the following table).

  • Page 31: 600-W Dc Output Specifications

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS 3.1.5 600-W DC Output Specifications 3.1.5.1 Grounding The output ground of the pins of the power supply provides the return path. The output connector ground pins is to the safety ground (power supply enclosure).

  • Page 32: 600-W Protection Circuits

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem (2) Peak load on the combined 12V output shall not exceed 48A. (3) Maximum continuous load on the combined 12V output shall not exceed 43A. (4) Peak total DC output power should not exceed 660W.

  • Page 33: 600-W Power Supply Control And Indicator Functions

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS 3.1.6.1 Over Voltage Protection The power supply shall shutdown and latch off after an over voltage condition occurs. The voltage shall never exceed the maximum levels when measured at the power pins of the power supply connector during any single point of fail.

  • Page 34: Power Supply Mechanical Outline

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem 3.2.1 730W Power Supply Mechanical Outline Figure 7. 730-W Power Supply Mechanical Drawings Revision 1.31...

  • Page 35: Output Wire Harness

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS 3.2.2 Output Wire Harness The output wiring harness is part of the power distribution board (backplane) and is described in that section. The 730-W power supply wiring harness is identical to the 600-W power supply described in Section 3.1.2 above.

  • Page 36: 730-W Dc Specifications

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem 3.2.4.3 AC Line Fuse The power supply shall have a single line fuse, on the line (hot) wire of the AC input. The input fuse shall be a slow blow type. AC inrush current shall not cause the AC line fuse to blow under any conditions.

  • Page 37: Table 17. 730-W Load Ratings

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS Component Bottom side Reserved 5VSB PSKill 5VSB PSON Returns PWOK I2C SCL SMBAlert I2C SDA +12LS Vbias +12VRS The ground of the pins of the output connector provides the power return path. The ground pin is connected to safety ground (power supply enclosure).

  • Page 38: 730-W Protection Circuits

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem 3.2.5.4 Stand By Operation Fan-less operation requirement is the power supply’s ability to work indefinitely in stand-by mode: with power on, power supply off and the 5VSB at full load (=2A) under environmental conditions (temperature, humidity, altitude).

  • Page 39: 730-W Power Supply Control And Indicator Functions

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS 3.2.7 730-W Power Supply Control and Indicator Functions 3.2.7.1 PSON# Input Signal The PSON# signal is required to turn on/off the power supply. PSON# is an active low signal that turns on the +12V power rail. When this signal is not pulled low by the system, or left open, the output (except the +5VSB) turns off.

  • Page 40: Power Distribution Mechanical Overview

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem 3.3.1 Power Distribution Mechanical Overview Note: All dimensions are in mm. Figure 8. Enclosure Mechanical Dimensions Revision 1.31...

  • Page 41: Figure 9. Mechanical Dimensions Power Distribution Board

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS Figure 9. Mechanical Dimensions Power Distribution Board Note: All dimensions in the drawing are in mm. Revision 1.31...

  • Page 42: Temperature Operational Limits

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem 3.3.2 Temperature Operational Limits The power supply modules provide airflow to cool the power distribution board. The power distribution board operates over the specified limits listed in the following table.

  • Page 43: Table 21. P1 Baseboard Power Connector

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS Connector Power Supply cover exit Peripheral Power hole Connector Peripheral Power Extension Connector Power Supply cover exit Peripheral Power hole Connector Peripheral Power Extension Connector Power Supply cover exit Peripheral Power...

  • Page 44: Table 22. P2 Processor Power Connector

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem 3.3.3.3 Processor Power Connector (P2) Connector housing: 8-Pin Molex 39-01-2080 or equivalent Contact: Molex 44476-1111 or equivalent Table 22. P2 Processor Power Connector Signal 18 AWG color Signal 18 AWG Color...

  • Page 45: Table 25. Power Signal Connector

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS Signal 22 AWG Color +12V4 Yellow 3.3.3.6 Power Signal Connector P13 Connector housing: 5-pin Molex 50-57-9405 or equivalent Contacts: Molex 16-02-0087 or equivalent Table 25. Power Signal Connector Signal 24 AWG Color...

  • Page 46: Table 27. Dc/Dc Converters Load Ratings

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem (5) Combined peak current on the total +12V rails shall not exceed 58A. (6) Peak current on the 12V4 rail shall be supported for a minimum of 500msec. (7) All rails from the power distribution board must meet the UL energy hazard requirements.

  • Page 47: Protection Circuits

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS Converter Output Tolerance Units 5VSB -4% / +5% +4.80 +5.00 +5.25 3.3.3.10 Fan-less Operation in Stand-by Mode The power supply will work indefinitely in standby mode with power on, power supply plus power distribution board off, and the 5VSB at full load under environmental conditions (temperature, humidity, altitude) as specified.

  • Page 48: Smbus Monitoring Interface

    Intel® Server Chassis SC5300 5U Kit TPS Chassis Power Subsystem 3.3.5.1 PSON# Input and Output Signals The PSON# signal is required to remotely turn on/off the power supply. 3.3.5.2 PSKILL The purpose of the PSKill pin is to allow for hot swapping of the power supply. The mating pin of this signal on the power distribution board input connector should be tied to ground, and its resistance shall be less than 5 ohms.

  • Page 49: Mean Time Between Failures (Mtbf)

    Chassis Power Subsystem Intel® Server Chassis SC5300 5U Kit TPS Warning events latch the LED and SMBAlert signal when in “intelligent” mode. If in the “default” mode, the LED and SMBAlert signal will de-assert as soon as the condition driving the event clears.

  • Page 50: System Cooling

    The ducting shown (see the following figure) is designed to work with the passive heat sink. Air flows through the system from front to back. The heat sink solution used for the Server Chassis SC5300 is provided with the Intel® Xeon™ processors. Figure 10. CPU and PCI Air Ducts Revision 1.31...

  • Page 51: Base Cooling Solution

    System Cooling Intel® Server Chassis SC5300 5U Kit TPS 4.1.2 Base Cooling Solution One 120 x 38mm fan and one 92 x 38mm fan provide cooling for the processors, hard drives, and add-in cards. These two fans draw air through the rear of each hard drive bay to provide drive cooling.

  • Page 52: Figure 12. Hot Swap Fans And Connectors

    Intel® Server Chassis SC5300 5U Kit TPS System Cooling Figure 12. Hot Swap Fans and Connectors Air flow IDE CDROM Power Supply 5 Pin SSI Power 24 Pin SSI Power 8 Pin SSI Power FP USB COM2 CPU_1 Serverboard 3 Pin FAN...

  • Page 53: Fan Control

    Intel® Server Chassis SC5300 5U Kit TPS Fan Control The fans in the Intel® Server Chassis SC5300 are designed for server boards which support fan control. The front panel of the chassis has an active temperature sensor (i.e., Dallas* 1621) connected to the front panel’s bus.

  • Page 54: Hard Disk Drive Bays

    Intel® Server Chassis SC5300 5U Kit TPS Hard Disk Drive Bays Hard Disk Drive Bays Server Chassis SC5300 4HDD and 6HDD SCSI HSBP Overview The Server Chassis SC5300 4HDD or 6HDD SCSI Hot Swap Backplane (HSBP) is a monolithic printed circuit board. The architecture is based on the QLogic GEM359 enclosure management controller and has support for up to 4 or 6 SCSI drives.

  • Page 55: Scsi Interface

    Hard Disk Drive Bays Intel® Server Chassis SC5300 5U Kit TPS inserted, the power control waits a small amount of time for the drive to be fully seated, and then applies power with a controlled power ramp. • If the system power is on, the LVD SCSI backplane immediately powers off a drive slot when it detects that a drive has been removed.

  • Page 56: Power Connectors

    Intel® Server Chassis SC5300 5U Kit TPS Hard Disk Drive Bays The HSBP provides active termination, termination voltage, a reset-able fuse, and a protection diode for the SCSI channel. By design, on-board termination cannot be disabled. 5.1.6 Power Connectors The SCSI HSBP provides two standard 4-pin hard drive power connectors.

  • Page 57: 68-Pin Scsi Connector

    Hard Disk Drive Bays Intel® Server Chassis SC5300 5U Kit TPS Connector Signal Name Signal Name Connector Contact Contact Number Number -MSG +MSG -RST +RST -ACK +ACK -BSY +BSY -ATN +ATN -DB(P) +DB(P) -DB(7) +DB(7) -DB(6) +DB(6) -DB(5) +DB(5) -DB(4)

  • Page 58: Table 31. 68-Pin Scsi Connector Pin-Out

    Intel® Server Chassis SC5300 5U Kit TPS Hard Disk Drive Bays Table 31. 68-pin SCSI Connector Pin-out Connector Signal Name Signal Name Connector Contact Contact Number Number +DB(12) -DB(12) +DB(13) -DB(13) +DB(14) -DB(14) +DB(15) -DB(15) +DB(P1) -DB(P1) +DB(0) -DB(0) +DB(1)

  • Page 59: Ipmb (I2C) Header

    Hard Disk Drive Bays Intel® Server Chassis SC5300 5U Kit TPS Connector Signal Name Signal Name Connector Contact Contact Number Number +DB(9) -DB(9) +DB(10) -DB(10) +DB(11) -DB(11) 5.1.9 IPMB (I2C) Header The following table defines the pin-out of the 4-pin IPMB Header at J1.

  • Page 60: Scsi Backplane Status Leds

    Intel® Server Chassis SC5300 5U Kit TPS Hard Disk Drive Bays defined by the firmware, is detected. Table 34. Hard Drive Activity LED Drive HSBP LED 4 HDD Bay 6 HDD Bay Fault Activity Activated Designator Designator Color Color Drive 0 - Conn 2...

  • Page 61: Figure 14. 4-Hdd Hot Swap Drive Bay, Front/Rear Isometric View

    Hard Disk Drive Bays Intel® Server Chassis SC5300 5U Kit TPS Figure 14. 4-HDD Hot Swap Drive Bay, Front/Rear Isometric View Figure 15. 6-HDD Hot Swap Drive Bay, Front/Rear Isometric View Revision 1.31...

  • Page 62: Scsi Hot Swap Drive Bay Upgrade Kits

    SCSI Hot Swap Drive Bay Upgrade Kits The two optional SCSI HSBP drive bays allow for installation of up to six SCSI drives in the SC5300BASE configuration and up to ten SCSI drives in the SC5300BRP and SC5300LX configurations. Kit Order Codes: •...

  • Page 63: Figure 17. Intel® Server Chassis Sc5300 6-Hdd Sata/Sas Hot Swap Backplane Block Diagram

    SATA 7PIN Conn5 SATA 7PIN Conn4 STATUS DISPLAY SATA 7PIN Conn3 SATA 7PIN Conn2 SATA 7PIN Conn1 Hardware Monitor SMBus & SAF-TE P.2 & P.3 POWER CONN Figure 17. Intel® Server Chassis SC5300 6-HDD SATA/SAS Hot Swap Backplane Block Diagram Revision 1.31...

  • Page 64: Enclosure Management Controller

    Intel® Server Chassis SC5300 5U Kit TPS Hard Disk Drive Bays 5.2.1 Enclosure Management Controller The QLogic* GEM424 is an enclosure management controller for the SATA/SAS backplane and monitors various aspects of a storage enclosure. The chip provides out-of-band SAF-TE management through the SATA/SAS Host I C interface.

  • Page 65: Figure 18. Intel® Server Chassis Sc5300 6-Hdd Sata/Sas Hot Swap Backplane I

    Sensor Addr = 0xC0/C2 Port 0 74 & 75 Figure 18. Intel® Server Chassis SC5300 6-HDD SATA/SAS Hot Swap Backplane I C Bus Connection Diagram Details of IPMI support and various firmware support can be found in the 6HDD SATA/SAS HSBP firmware EPS.

  • Page 66: General Purpose Input/Output (Gpio)

    Intel® Server Chassis SC5300 5U Kit TPS Hard Disk Drive Bays 0.7VCC* 0.3VCC* 0.4V/3mA* 10uA* 4/8P* * SDA1,SCL1 GEM424 0.7VCC 0.3VCC 0.4V/3mA 10uA GEM424 SDA2,SCL2 allot PCA9554 0.7VCC 0.3VCC 0.4/3mA 10uA 10PF 40h SDA2,SCL2 AT24C512 P5V 0.7VCC 0.3VCC 0.4V/2.1mA SDA2,SCL2 AT24C128 P5V 0.7VCC...
  • Page 67 Hard Disk Drive Bays Intel® Server Chassis SC5300 5U Kit TPS GEM424 Power Programming System Function Reset Initial Connection Well State Value Type Description NAME GPIO5 3.3V HDD5 Active LED HD5_ACT_LED Pull up 4.7K to GPIO6 3.3V SATA HDD0 Status HD0_FLT_LED_L Pull up 4.7K to...

  • Page 68: External Memory Device

    Intel® Server Chassis SC5300 5U Kit TPS Hard Disk Drive Bays 5.2.5 External Memory Device The 6HDD SATA/SAS HSBP contains non-volatile 32K and 64K Serial EEPROM devices for Boot and Run-Time/Configuration code storage, respectively. These devices reside on the GEM424 controller’s private I C bus.

  • Page 69: Power Connectors

    Hard Disk Drive Bays Intel® Server Chassis SC5300 5U Kit TPS Connector Signal Name Contact Number 3.3V - NC 3.3V Precharge - NC 5V Precharge 12V Precharge 5.2.8 Power Connectors The 6HDD SATA/SAS HSBP provides two standard 4-pin hard drive power connectors. The following table defines the pin-out of the 4-pin Power Connectors (JP4 and JP5).

  • Page 70: 7-Pin Sata/Sas Connector - Drive0-Drive5

    Intel® Server Chassis SC5300 5U Kit TPS Hard Disk Drive Bays 5.2.10 7-Pin SATA/SAS Connector – Drive0-Drive5 The following table defines the pin-outs of the 7-pin SATA Control Connectors (J1-J6). Table 6. 7-pin SATA Connector Pin-out Connector Signal Name Contact...

  • Page 71: Sata/Sas Host I C Header - I2C_1

    Hard Disk Drive Bays Intel® Server Chassis SC5300 5U Kit TPS 5.2.12 SATA/SAS Host I C Header - I2C_1 The following table defines the pin-out of the 3-pin SATA/SAS Host I2C Header (JP1). Table 40. SATA Host I C Header Pin-out...

  • Page 72: Connector Specifications

    Intel® Server Chassis SC5300 5U Kit TPS Hard Disk Drive Bays Figure 19. Intel® Server Chassis SC5300 6-HDD SATA/SAS Hot Swap Backplane Board Layout 5.2.15 Connector Specifications Table 14. SATA/SAS Hot Swap Backplane Connector Specifications Manufacturer and Part Description Reference...

  • Page 73: Sata/Sas Hot Swap Drive Cage Upgrade Kit

    Serial ATA/SAS, or ® to a Serial ATA/SAS RAID card, such as the Intel RAID Controller SRCS14L. The RAID level that is supported depends on the feature set of the Serial ATA controller.

  • Page 74: Front Panel

    The Server Chassis SC5300 provides a 34-pin cable option with the chassis kit. A 34-pin Entry Ebay SSI (rev 3.0) front panel header for Intel® server boards is located on the back of the front panel. This allows for connection of a 34-pin ribbon cable for use with SSI rev 3.0-compliant server boards.

  • Page 75: Front Panel Jp2 Header (17X2) Pin-Out

    Front Panel Intel® Server Chassis SC5300 5U Kit TPS Table 41. Front Panel Connector Designations Designator Header Description Size 17x2 Front Panel SSI Connector Intrusion or Front Panel Key Switch Primary I2C Connector Not Stuffed Secondary I2C Connector Not Stuffed 6.1.2...

  • Page 76: C Connectors At J1 And J2 (Not Installed) Pin-Out

    Intel® Server Chassis SC5300 5U Kit TPS Front Panel Pin # Description Pin # Description Pin 33 ID_TOGGLE GND Pin 34 HDD_FAULT L When the hot swap drive bay is installed, a bi-color hard drive LED is located on each drive carrier (five total) to indicate specific drive failure or activity.

  • Page 77: Figure 22. Front Panel Controls And Indicators

    Front Panel Intel® Server Chassis SC5300 5U Kit TPS Figure 22. Front Panel Controls and Indicators Front panel buttons and indicator LED’s function and location is shown in the following table. Table 42. Front Panel LED Functions LED Name Color...
  • Page 78 Intel® Server Chassis SC5300 5U Kit TPS Front Panel Green BLINK Hard drive activity Hard drive activity Amber Fault No activity Green Linked LAN #1 activity Green BLINK LAN activity Idle Green Linked LAN #2 activity Green BLINK LAN activity...

  • Page 79: Chassis Interconnect

    Front Panel Intel® Server Chassis SC5300 5U Kit TPS Chassis Interconnect IDE CDROM Power Supply 5 Pin SSI Power 24 Pin SSI Power 8 Pin SSI Power FP USB COM2 CPU_1 Serverboard 3 Pin FAN CPU_2 3 Pin FAN 4HOT SWAP Bay...

  • Page 80: Chassis Internal Cables

    Intel® Server Chassis SC5300 5U Kit TPS Front Panel Chassis Internal Cables The following cables are provided as part of the chassis kit and accessories. Table 44. Intel® Server Chassis SC5300 System Cables Cable Description Source Front Panel cable 34-pin...

  • Page 81: Usb Cable And Connectors

    Front Panel Intel® Server Chassis SC5300 5U Kit TPS 6.3.2 USB Cable and Connectors A 10-conductor USB cable with 10-pin connectors is used for connecting the front panel- mounted USB connector to the server board Figure 25. USB Cable Drawing Figure 26.

  • Page 82: Figure 27. 120-Mm Hot Swap Fan Cable

    Intel® Server Chassis SC5300 5U Kit TPS Front Panel Figure 27. 120-mm Hot Swap Fan Cable 4 Ground 3 PWM 2 Presence 1 Led power Figure 28. Hot Swap Fan 6-pin Cable Connector Figure 29. 90-mm Hot Swap 5-pin Cable Connector Figure 30.

  • Page 83: Scsi Cable

    Front Panel Intel® Server Chassis SC5300 5U Kit TPS Figure 31. 8-pin (12 CM) Fan Connector 6.3.4 SCSI Cable A 68-conductor twisted-pair SCSI cable is provided to interface from the server board to the hot- swap backplane. There are two kinds of SCSI cables in the chassis. They are used to connect the 6 HDD and 4HDD hot swap back planes.

  • Page 84: Serial Cable

    Intel® Server Chassis SC5300 5U Kit TPS Front Panel SERVERBOARD Figure 33. SCSI Cable 6-Drive Bay 6.3.5 Serial Cable The 8-conductor cable provided is terminated in a 2x5 header at one end and a 9-pin panel mount D-sub connector on the other.

  • Page 85: Ipmb Cable For 6-Drive Bays (4-Pin)

    Front Panel Intel® Server Chassis SC5300 5U Kit TPS 6.3.7 IPMB cable for 6-Drive Bays (4-pin) A 4-pin cable connects the server board to the HSBP to communicate server management information, such as drive and fan status to the server board. Note that the server management features will vary by server board.

  • Page 86: System-Compatible Server Boards

    Intel® Server Chassis SC5300 5U Kit TPS System-Compatible Server Boards System-Compatible Server Boards The Intel® Server Chassis SC5300 supports the following Intel® server boards: • Intel® Server Board SE7320SP2 • Intel® Server Board SE7520AF2 • Intel® Server Board SE7525GP2 •...

  • Page 87: Upgrade Accessories

    Upgrade Accessories Intel® Server Chassis SC5300 5U Kit TPS Upgrade Accessories Principle upgrades include the tool-less four-drive fixed drive bay, four- and six-drive SCSI hot swap drive bays, six-drive SATA/SAS hot swap drive bay, rack mount conversion kit, hot swap fan upgrade kit and power supply upgrade conversion kit.

  • Page 88: Reliability, Serviceability, And Availability

    Intel® Server Chassis SC5300 5U Kit TPS Reliability, Serviceability, and Availability Reliability, Serviceability, and Availability MTBF The following is the calculated Mean Time Between Failures (MTBF) at maximum configuration at 35° C. Table 46. MTBF Calculations Item Percentage usage MTBF HRs...
  • Page 89 Reliability, Serviceability, and Availability Intel® Server Chassis SC5300 5U Kit TPS Remove and replace expansion board (PCI Adaptor minutes Card) Remove and replace front panel board minutes Remove and replace server board (with no expansion minutes boards) Overall Mean Time To Repair (MTTR) minutes Revision 1.31...

  • Page 90: 10. Environmental Limits

    Operational after a free fall, 18 – 24 inch depending on the weight. 15kV per the Intel Environmental Test Specification 10.2 System Environmental Testing The system will be tested per the Environmental Standards Handbook, Intel Doc.#662394-05. These tests shall include: •...

  • Page 91: 11. Product Regulatory Compliance

    Intel® Server Chassis SC5300 5U Kit TPS 11. Product Regulatory Compliance The Intel® Server Chassis SC5300 is designed and tested to meet the standards and regulation listed below when configured with the Intel® server boards specified. 11.1 Product Safety Compliance The Server Chassis SC5300 complies with the following safety requirements: •...

  • Page 92: 11.4 Electromagnetic Compatibility Notices

    Intel® Server Chassis SC5300 5U Kit TPS Product Regulatory Compliance • Australian C-Tick Mark • Taiwan BSMI Certification Number and Class A Warning 11.4 Electromagnetic Compatibility Notices 11.4.1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2), this device must accept any interference received, including interference that may cause undesired operation.

  • Page 93: Fcc Verification Statement

    Product Regulatory Compliance Intel® Server Chassis SC5300 5U Kit TPS 11.4.2 FCC Verification Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2), this device must accept any interference received, including interference that may cause undesired operation.

  • Page 94: Bsmi (Taiwan)

    Intel® Server Chassis SC5300 5U Kit TPS Product Regulatory Compliance “This is a Class A product based on the standard of the Voluntary Control Council for Interference (VCCI) from Information Technology Equipment. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference.

  • Page 95: Appendix A: Intel® Server Chassis Sc5300 Spares And Accessories

    Appendices Intel® Server Chassis SC5300 5U Kit TPS Appendix A: Intel® Server Chassis SC5300 Spares and Accessories Product Description SC5300BASE 857678 SC5300 Base Chassis w/600W PFC Fixed PSU, 2 chassis fans, 1 PSU fan, supports up to 6 tool-free cabled...
  • Page 96 Intel® Server Chassis SC5300 5U Kit TPS Appendices drives, upgradeable to 10 hot-swap SCSI drives or 6 hot-swap SATA/SAS drives, includes N.A. power cord SC5300GP2 866230 SC5300 Base Chassis w/600W PFC Fixed PSU, 2 chassis fans, 1 PSU fan, supports up to 6 tool-free cabled...
  • Page 97 Appendices Intel® Server Chassis SC5300 5U Kit TPS power cord, Intel® Server Board SE7520BD2 AXX04HSBPYCBL 864463 SC5300 SCSI Y Cable with unique lengths for 4 drive and 6 drive bays, AXX4SCSIDB and AXX6SCSIDB. ARIGRACK 856670 Rack Conversion Accessory Kit, Includes slide rails, front bezel hinge...
  • Page 98 Intel® Server Chassis SC5300 5U Kit TPS Appendices front panel board, front panel cable, serial cable, USB cable, (1) 92mm HS fan + plastic housing, (1) 120mm HS fan and plastic housing , 4 ea HS fan wires, (1) fixed 92 mm fan, (1) fixed...

  • Page 99: Appendix B: Intel® Server Chassis Sc5200, Sc5250-E, Sc5275-E And Sc5300 Common Spares & Accessories Components

    Appendices Intel® Server Chassis SC5300 5U Kit TPS Appendix B: Intel® Server Chassis SC5200, SC5250-E, SC5275-E and SC5300 Common Spares & Accessories Components Product Code MM # Description FXX2DRVCARBLK 835853 HS DRIVE CARR, 1 INCH, BLACK FHDEYE2C 823392 I2C Cable – 10 each...

  • Page 100: Appendix C: Errata And Integration Notes

    The redundant fan (hot swap fan) red LED indicators used in the Intel® Server Chassis SC5300LX will turn on (red) if a fan failure is detected by the Intel® Server Board SE7520BD2. Upon replacement of the hot swap fan, the red LED will remain lighted. To turn off (reset) the red LED located in the hot swap fan handle, the system must be rebooted.

  • Page 101: Reference Documents

    Appendices Intel® Server Chassis SC5300 5U Kit TPS Reference Documents Refer to the following documents for additional information: • SCSI Accessed Fault-Tolerant Enclosures Specification, Revision 1.00 • The SAF-TE Specification is available via email @ SAF.TE@connor.com • SSI Entry-Level Electronics–Bay Specification, Version 3.0 •...
