Intel® Server Chassis SC1400UP / Intel® Server Platform SR1425BK1-E
4.
Standard Control Panel
The standard control panel supports several push buttons and status LEDs, along with USB and
video ports to centralize system control, monitoring, and accessibility to within a common
compact design.
The control panel assembly comes pre-assembled and is modular in design. The control panel
assembly module slides into a predefined slot on the front of the chassis. Once installed,
communication to the baseboard can be achieved by either attaching a 50-pin cable to a hot-
swap backplane, or if cabled drives are used, can be connected directly to the baseboard. In
addition, a USB cable is routed to a USB port on the baseboard.
4.1
Control Panel Buttons
The standard control panel assembly houses several system control buttons. Each of their
functions is listed in the table below.
Revision 1.0

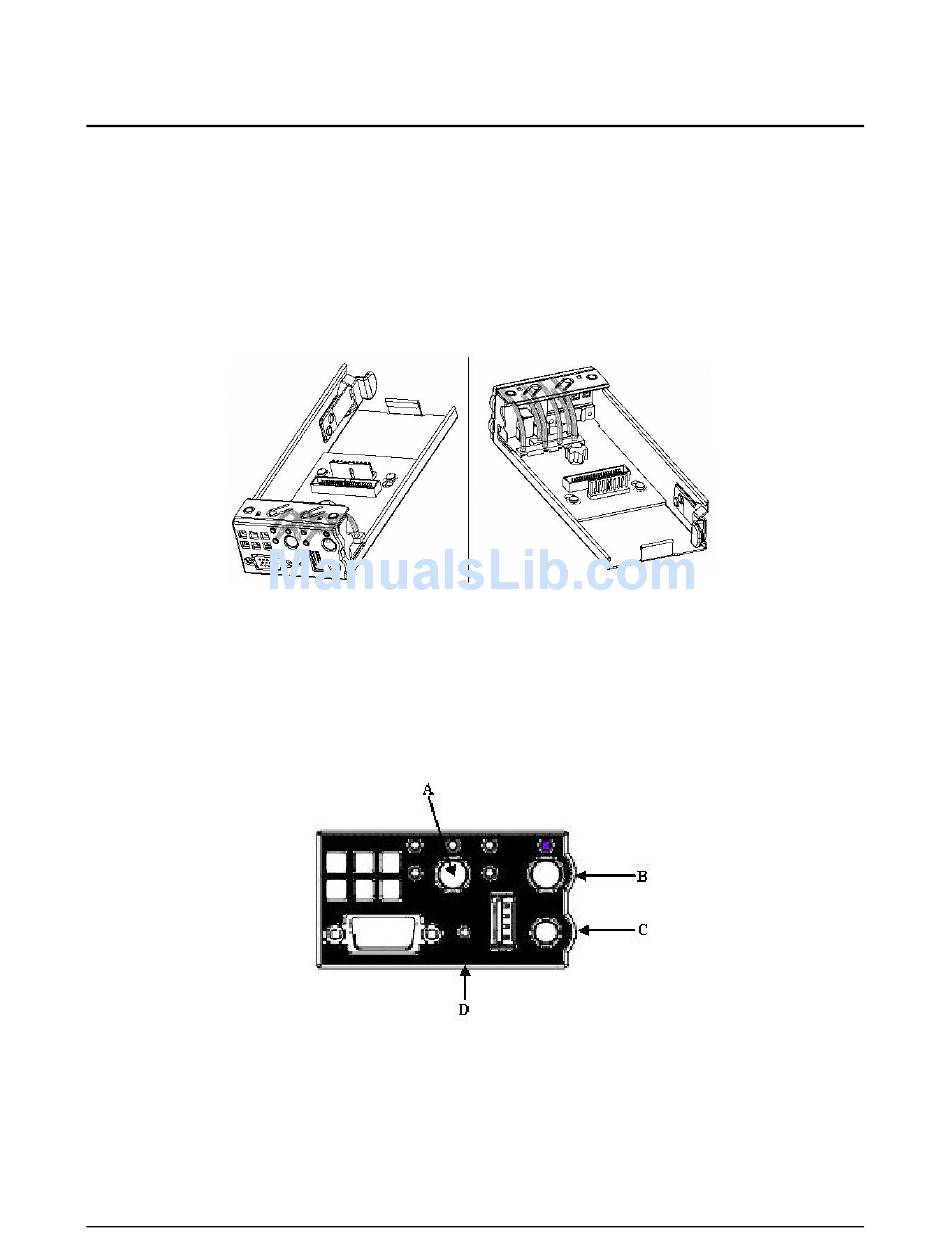

Figure 28. Standard Control Panel Assembly Module
Figure 29. Control Panel Buttons
- 42 -
