Power Sub-System; Figure 6. Standard Control Panel Overview - Intel SR1425BK1 - Entry Server Platform Technical Specifications

Intel® Server Chassis SC1400UP / Intel® Server Platform SR1425BK1-E
The control panel supports several push buttons and status LEDs, along with USB and video
ports to centralize system control, monitoring, and accessibility to within a common compact
design. The following diagram overviews the layout and functions of the control panel.
A
A Power / Sleep Button
B NIC #2 Activity LED
C NIC #1 Activity LED
D Power / Sleep LED
E System Status LED
F Hard Drive Activity LED
1.7

Power Sub-system

The power sub-system of the SC1400UP consists of a single non-redundant 300 watt power
supply and provides several integrated management features including:
• Status LED
• Over temperature protection circuitry
• Over voltage protection circuitry
With the addition of Server Management Software, the power subsystem is capable of
supporting several system management features including:
• Remote Power On/Off
• Status Alerting
•
FRU Information Reporting
The power supply operates within the following voltage ranges and ratings 100-127VAC (V) ∼ at
50/60 Hertz (Hz); 8.2 Ampere (A) maximum (max) 200-240VAC∼ at 50/60 Hz; 4.1 A maximum
Revision 1.0
C D
B
L
K

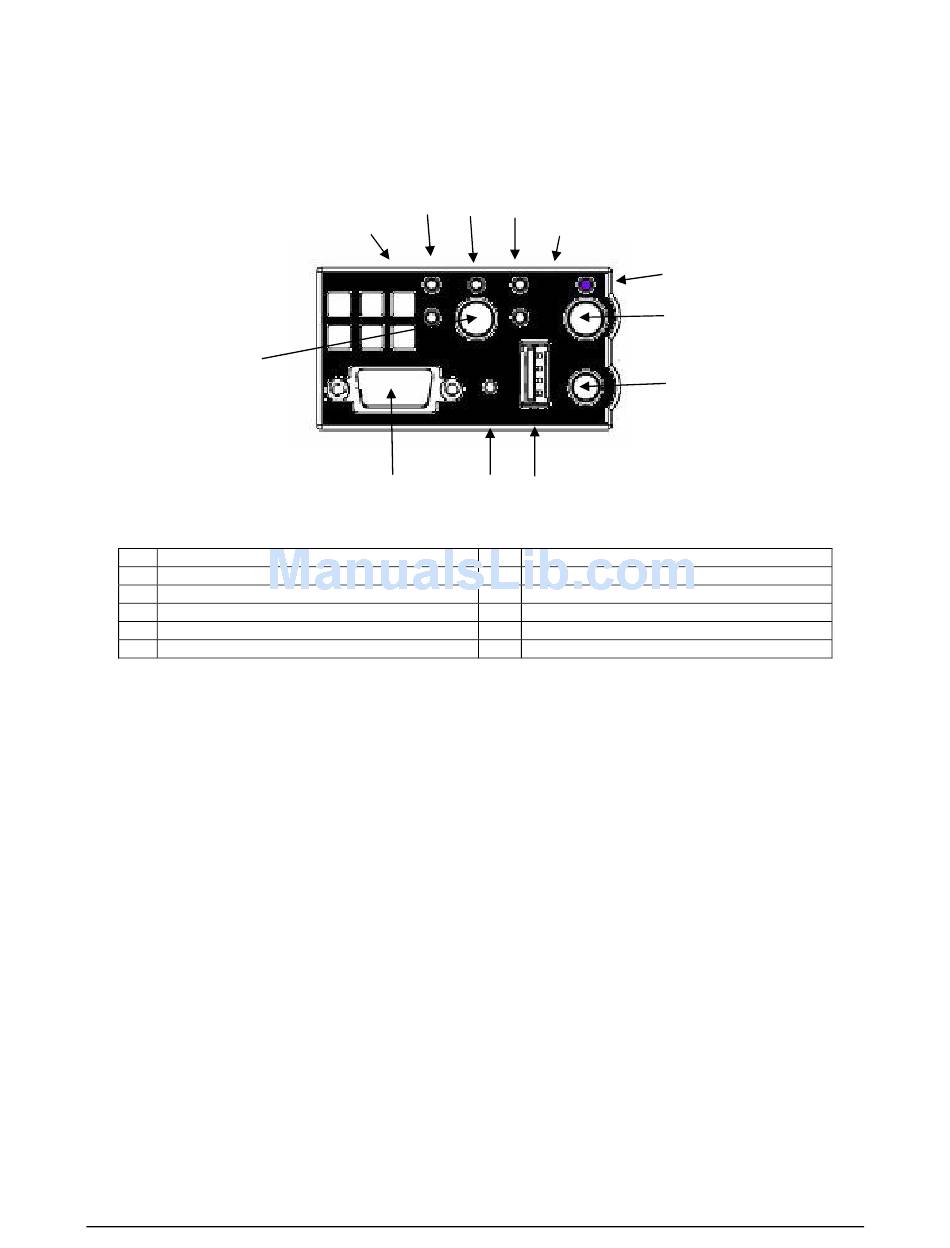

Figure 6. Standard Control Panel Overview

E
F
J
G System Identification LED
H System Identification Button
I System Reset Button
J USB 2.0 Connector
K Recessed NMI Button (Tool Required)
L Video connector (not supported on SC1400UP)
G
H
I
- 17 -
