To access this screen from the Main menu press the right arrow key until the Advanced
menu is selected the press the down arrow key until Mass Storage Controller
Configuration is highlighted and press <Enter>.

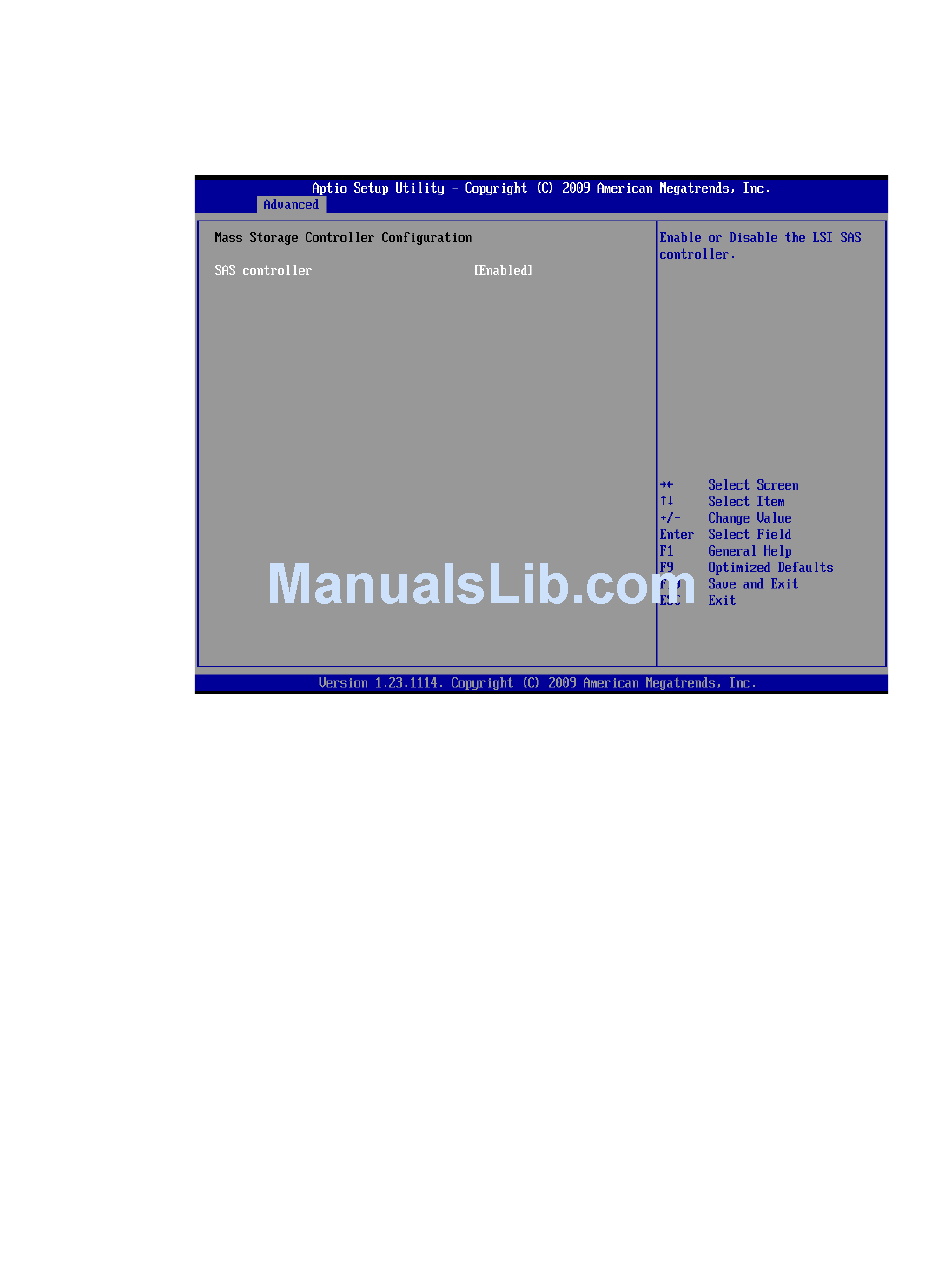

Figure 49. Advanced Mass Storage Controller Configuration Screen

Serial Port Configuration
The Serial Port Configuration screen enables the user to configure the Network Serial
Console and the Debug Serial Port. To configure both the Network Serial Console and the
Debug Serial Port, the user can modify the following settings:
•
Enable or Disable the serial port (Network Serial Console or Debug Serial Port)
•
Select the base I/O address
•
Select the interrupt request (IRQ) line
®
Intel Compute Module MFS5520VI User Guide 67
