Figure 6. Removing Top Cover - Intel MFS5520VI - Multi-Flex Server Compute Module User Manual

4. Press the top cover release button (see letter "A" in
back, away from the compute module bezel (see letter "B" in
5. Lift the top cover up and off the compute module (see letter "C" in
Caution:
®
Intel Compute Module MFS5520VI User Guide
Always install the top cover before installing the compute module into a
chassis.
A
1
I/ O
2
1
2
ID

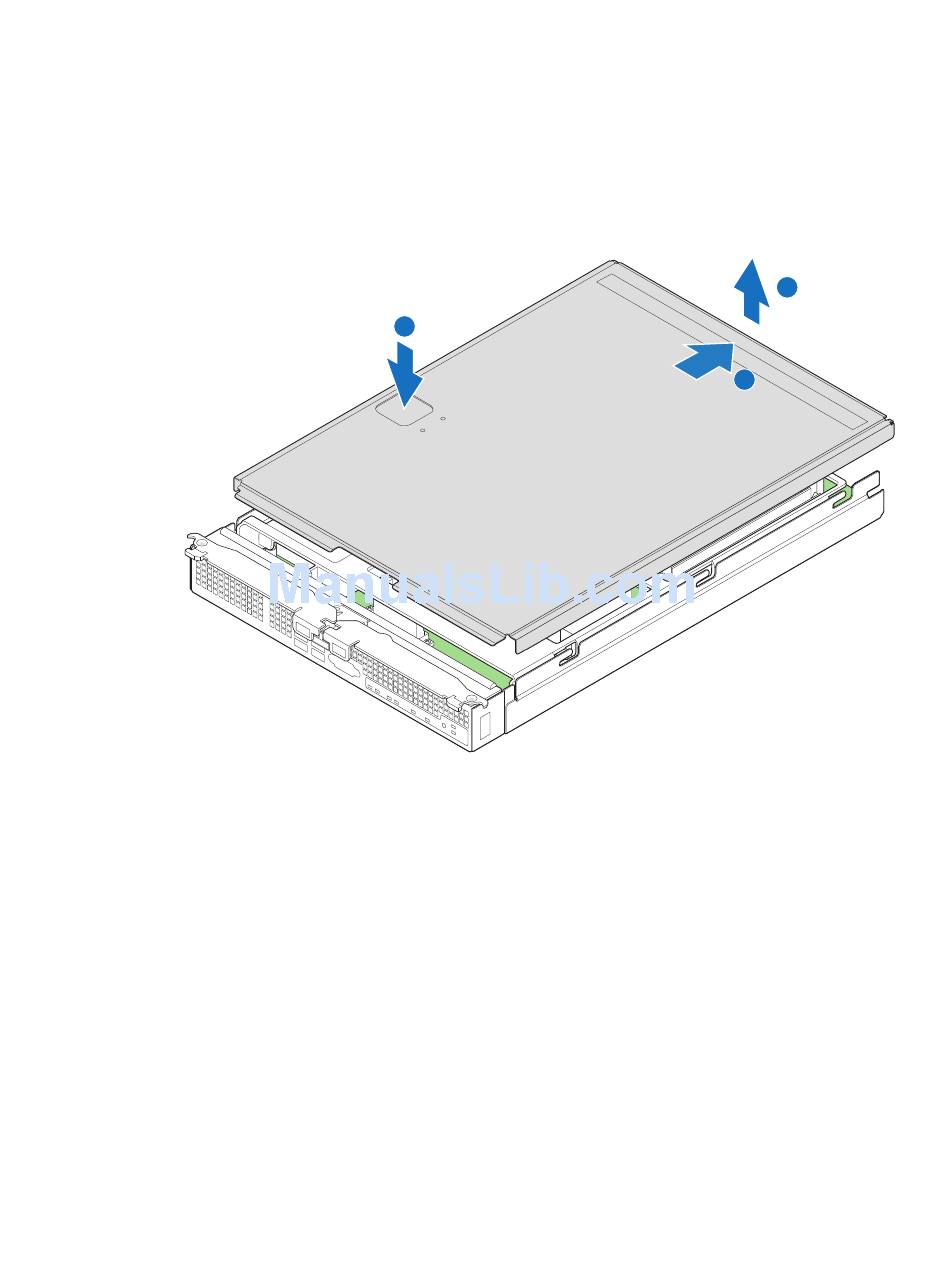

Figure 6. Removing Top Cover

Figure 6) and slide the top cover
Figure 6).
Figure
C
B
6) .
AF003088
15
