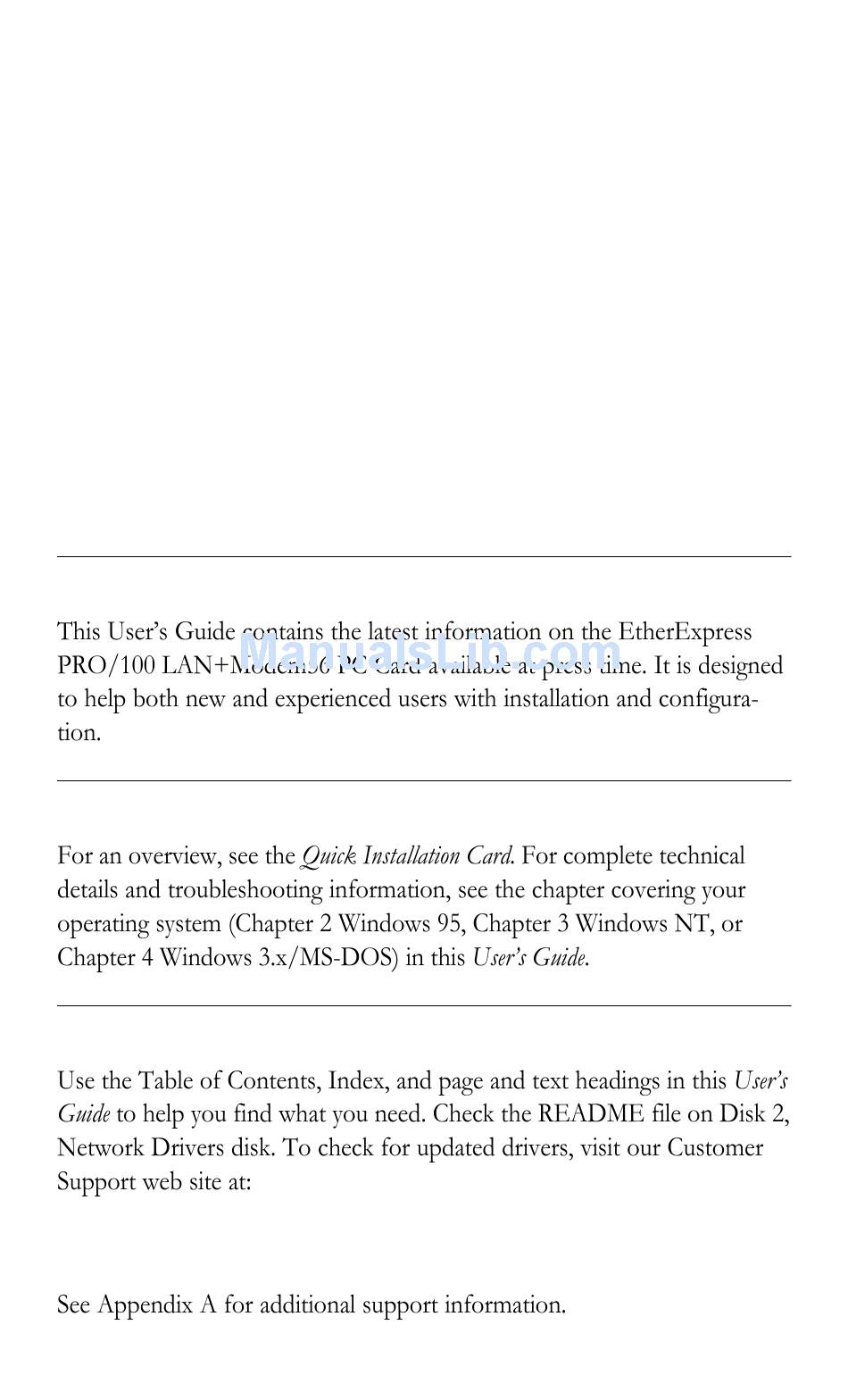

Page 1 Intel EtherExpress PRO/100 ™ LAN+Modem56 PC Card User’s Guide How to Use This Manual Installation and Configuration Overview How to Find More Information http://support.intel.com...
Page 2 PRO/100 LAN+Modem PC Card User's Guide...
Page 3: Table Of Contents
Contents Hardware Installation ........1-1 Software Supplied ..............1-2 Hardware Installation .............. 1-3 Unpacking and Inspection ............1-3 Other Required Equipment ............. 1-4 Installing Card and Cables ............1-5 PRO/100 Modem and Ethernet Connections ......1-6 Windows* 95 Installation ....... 2-1 Which Version of Windows 95? ..........
Page 4 PRO/100 LAN+Modem PC Card User's Guide Windows 3.x Troubleshooting ..........4-51 Computer-Specific Application Notes (Windows 3.x) .... 4-60 Utilities and Applications ......5-1 Utilities ..................5-1 Country Identifier Utility ............5-1 Modem Test Utility ..............5-2 Diagnostic Test Utility (M16BTEST.EXE) ........ 5-3 COM port monitor (Windows 3.x only) ........
Page 5: Hardware Installation
CHAPTER 1 Hardware Installation Introduction 56K Technology...
Page 6: Software Supplied
1-2 PRO/100 LAN+Modem PC Card User’s Guide Model Software Supplied Additional Features...
Page 7: Hardware Installation
Hardware Installation 1-3 HotSwap Power Management Suspend/Resume Hardware Installation Note Unpacking and Inspection...
Page 8: Other Required Equipment
1-4 PRO/100 LAN+Modem PC Card User’s Guide Package Contents Other Required Equipment Note...
Page 9: Installing Card And Cables
Hardware Installation 1-5 Note Installing Card and Cables Inserting the PRO/100 PC Card into the PC Card Slot Inserting the PRO/100 PC Card into the Computer.
Page 10: Pro/100 Modem And Ethernet Connections
1-6 PRO/100 LAN+Modem PC Card User’s Guide Note PRO/100 Modem and Ethernet Connections Connecting the Modem Cable to the PRO/100 MODEM CABLE Attaching the Modem Cable to the PRO/100. Connecting the Modem Cable to the Telephone Line...
Page 11 Hardware Installation 1-7 Caution TRANSMIT/RECEIVE (YELLOW) CARRIER TELEPHONE DETECT CABLE (GREEN) MODEM CABLE Connecting the Telephone Cable to the Modem Cable. Connecting the Ethernet Adapter Cable to the PRO/100 ETHERNET ADAPTER CABLE PC-3808 Attaching the Ethernet Adapter Cable to the PRO/100.
Page 12 1-8 PRO/100 LAN+Modem PC Card User’s Guide Connecting to a Twisted Pair network. Caution LAN ACTIVITY (YELLOW) LINK INTEGRITY Orange = 100 Mbps Green = 10 Mbps RJ-45 TWISTED PAIR ETHERNET CONNECTOR Connecting the Ethernet Adapter Cable to the Network.
Page 13: Windows 95 Installation
CHAPTER 2 Windows 95 Installation Which Version of Windows 95? Two Versions and Two Installation Paths How Can I Tell Which Version I Have?
Page 14: Additional Information In This Chapter
2-2 PRO/100 LAN+Modem PC Card User’s Guide Additional Information in this Chapter Windows 95 Installation (Retail Version) Overview Important Notes...
Page 15 Windows 95 Installation 2-3 Recommended Installation Steps Insertion, Detection, and Prompt for Disk Windows 95 Network Installation Country Identifier Utility...
Page 16: Windows 95 Osr2 Installation (Oem Version)
2-4 PRO/100 LAN+Modem PC Card User’s Guide Windows 95 OSR2 Installation (OEM Version) Overview Important Notes...
Page 17 Windows 95 Installation 2-5 Recommended Installation Steps Insertion, Detection, and Prompt for Disk...
Page 18 2-6 PRO/100 LAN+Modem PC Card User’s Guide Copying Intel Files Copying Windows 95 Network Files...
Page 19 Windows 95 Installation 2-7 Country Identifier Utility...
Page 20: How To Install For Windows 95 And Netware
2-8 PRO/100 LAN+Modem PC Card User’s Guide How to Install for Windows 95 and NetWare Utilities...
Page 21: Power-Saving Modes
Windows 95 Installation 2-9 Power-Saving Modes Windows 95 Troubleshooting Quick Troubleshooting (Device Conflicts)
Page 22: Troubleshooting Checklist
2-10 PRO/100 LAN+Modem PC Card User’s Guide Troubleshooting Checklist Note...
Page 23 Windows 95 Installation 2-11 1 Be sure you have the latest firmware and driver. 2 Run the Intel diagnostic utility M16BTEST. 3 Be sure that PCMCIA support is enabled in Windows 95.
Page 24 2-12 PRO/100 LAN+Modem PC Card User’s Guide 4 Create C:\WINDOWS\MODEMLOG.TXT to record the status of the modem. 5 Check other sources for updated troubleshooting information.
Page 25: Windows 95 Driver Parameters Reference
Windows 95 Installation 2-13 Windows 95 Driver Parameters Reference Caution M16B.SYS (NDIS 3) Settings for Microsoft Windows 95 Windows 95 Support...
Page 26 2-14 PRO/100 LAN+Modem PC Card User’s Guide DIRECT ENABLE OFF, ON EARLY TRANSMIT FULL DUPLEX FUNCTION(S) NETWORK&MODEM NETWORK&MODEM NETWORK ONLY MODEM ONLY LINE SPEED AUTO AUTO DETECT 10MBPS 100MBPS LINK INTEGRITY MODE MEMORY MAPPED NETWORKADDRESS TRANSMITBUFFERSIZE 7168 1024-29696 1024-29696 HKEY_LOCAL_MACHINE\SYSTEM\CURRENTCONTROLSET\SERVICES\CLASS\NET\000X...
Page 27 Windows 95 Installation 2-15 Caution DEVICEVXDS M16B.SYS DEVLOADER NDIS DIRECTENABLE DRIVERDESC INTEL ETHEREXPRESS PRO/100 LAN+MODEM PC CARD (NETWORK) EARLYTRANSMIT ENUMPROPPAGES NETDI.DLL,ENUMPROPPAGES FULLDUPLEX FUNCTIONENABLE INFPATH NETM16B.INF INTERRUPTNUMBER 04 00 00 00 IOBASEADDRESS 02 00 00 00 LINESPEED LINKINTEGRITY MEMORYBASEADDRESS 01 00 00 00...
Page 28 2-16 PRO/100 LAN+Modem PC Card User’s Guide...
Page 29: Windows Nt Installation
CHAPTER 3 Windows NT Installation Which Version of Windows NT? Two Versions and Two Installation Paths...
Page 30: How Can I Tell Which Version And Service Pack I Have
3-2 PRO/100 LAN+Modem PC Card User’s Guide How Can I Tell Which Version and Service Pack I Have? Additional Information in this Chapter...
Page 31: Windows Nt 4.0 Installation
Windows NT Installation 3-3 Windows NT 4.0 Installation PCMCIA Services Verification Network Driver Installation...
Page 32: Modem Setup
3-4 PRO/100 LAN+Modem PC Card User’s Guide Modem Setup...
Page 33: Windows Nt 3.51 Installation
Windows NT Installation 3-5 Windows NT 3.51 Installation PCMCIA Services Verification Network Driver Installation and Modem Setup...
Page 34 3-6 PRO/100 LAN+Modem PC Card User’s Guide A:\NT351.
Page 35: Power-Saving Modes
Windows NT Installation 3-7 Power-Saving Modes Utilities...
Page 36: Windows Nt Driver Parameters Reference
3-8 PRO/100 LAN+Modem PC Card User’s Guide Windows NT Driver Parameters Reference M16B.SYS (NDIS 3) Settings for Microsoft Windows NT Caution For Windows NT 4.0 For Windows NT 3.51...
Page 37 Windows NT Installation 3-9 DIRECT ENABLE DISABLED DISABLED ENABLED EARLY TRANSMIT ENABLED DISABLED ENABLED FULL DUPLEX DISABLED DISABLED ENABLED FUNCTION(S) NETWORK NETWORK & MODEM NETWORK ONLY MODEM ONLY INTERRUPT 3, 4, 5, 7, SAME 10, 11, 15 I/O PORT 0X320 0X200-0X3D0 SAME I/O PORT...
Page 38 3-10 PRO/100 LAN+Modem PC Card User’s Guide BUSNUMBER BUSTYPE DIRECTENABLE EARLYTRANSMIT FULLDUPLEX FUNCTIONENABLE INTERRUPTNUMBER 3,4,5,7,8,9,A,B,F IOBASEADDRESS 0X2E8 3F8,2F8,3E8,2E8 IOBASEADDRESS_1 0X320 0X200 - 0X3D0 IOLENGTH 0X07 IOLENGTH_1 LINESPEED LINKINTEGRITY MEMORYMAPPEDBASEADDRESS 0XD6000 A2000-FF000 MEMORYMAPPEDSIZE 0X1000 MODE MODEMFUNCTION 0X01 NETWORKADDRESS PCCARDATTRIBUTEMEMORYADDRESS 0XD4000 A0000 - FE000 PCCARDATTRIBUTEMEMORYOFFSET 0XF000 PCCARDATTRIBUTEMEMORYSIZE 0X2000...
Page 39: Windows 3.X/Dos Installation
CHAPTER 4 Windows 3.x/DOS Installation...
Page 40: Installation Under Ms-Dos
4-2 PRO/100 LAN+Modem PC Card User’s Guide Installation under MS-DOS Installation under Windows 3.x (including Windows for Workgroups) A:SETUP Note...
Page 41 Windows 3.x/MS-DOS Installation 4-3 Completing the Installation Windows 3.x Network Operating System Alphabetical Reference...
Page 42 4-4 PRO/100 LAN+Modem PC Card User’s Guide Artisoft LANtastic version 6.0 NDIS 2.0 Driver AT&T StarGROUP LAN Manager version 2.1a NDIS 2.0 Driver...
Page 43 Windows 3.x/MS-DOS Installation 4-5 Banyan VINES version 5.5 NDIS 2.0 Driver M16BTEST.EXE IRQ=6...
Page 44 4-6 PRO/100 LAN+Modem PC Card User’s Guide CD\VINES DEC PATHWORKS versions 5.x or 6.x NDIS 2.0 Driver M16BTEST.EXE IRQ=6...
Page 45 Windows 3.x/MS-DOS Installation 4-7 ;NI_IRQ = [IRQ VALUE FROM STEP 5 OF THE FIRST PROCEDURE ABOVE] NI_IRQ = [IRQ VALUE FROM STEP 5 OF THE FIRST PROCEDURE ABOVE] NDIS DRIVER PATH: A:\...
Page 46 4-8 PRO/100 LAN+Modem PC Card User’s Guide NDIS DRIVER FILE: M16BNDIS.EXE NDIS DRIVER NAME: INTEL$ DRIVER FILE: A:\M16BNDIS.EXE PROTOCOL.INI STUB: A:\DEC\PROTOCOL.INI DRIVER FILE: A:\M16BNDIS.EXE PROTOCOL.INI STUB: A:\DEC\PROTOCOL.INI IN THE NON-SUPPORTED NETWORK ADAPTER WINDOW DRIVER FILE: A:\M16BNDIS.EXE PROTOCOL.INI STUB: A:\DEC\PROTOCOL.INI...
Page 47 ;NI_IRQ = [IRQ VALUE FROM STEP 5 OF THE FIRST PROCEDURE ABOVE] NI_IRQ = [IRQ VALUE FROM STEP 5 OF THE FIRST PROCEDURE ABOVE] [M16BNDIS] DRIVERNAME=INTEL$ FTP Software LANWatch Packet and NDIS 2.0 Drivers FTP Software LANWatch Packet Driver Installation...
Page 48 4-10 PRO/100 LAN+Modem PC Card User’s Guide DEVICE = [ PATH ]IFCUST.SYS FTP Software LANWatch NDIS 2.0 Driver Installation DEVICE = C:\NDIS\PROTMAN.SYS /I:C:\NDIS DEVICE = C:\NDIS\FTPSOFT.DOS DEVICE = C:\NDIS\M16BNDIS.EXE DEVICE = C:\NDIS\DIS_PKT.GUP...
Page 49 Windows 3.x/MS-DOS Installation 4-11 DEVICE = C:\LW\IFCUST.SYS MD NDIS FTP Software PC/TCP Packet, NDIS 2.0, and ODI Drivers FTP PC/TCP 3.X with OnNet 1.1 and Windows for Workgroups 3.11...
Page 50 4-12 PRO/100 LAN+Modem PC Card User’s Guide Additional Steps for ODI Installation INTERFACE-TYPE=NDIS INTERFACE-TYPE=PKTDRV SET PCTCP=C:\PCTCP\PCTCP.INI C:\PCTCP\ODIPKT PCTCP=C:\PCTCP\PCTCP.INI...
Page 51 Windows 3.x/MS-DOS Installation 4-13 FTP PC/TCP 3.X with OnNet 1.1 with Windows 3.1 Additional Steps for ODI Installation INTERFACE-TYPE=NDIS INTERFACE-TYPE=PKTDRV SET PCTCP=C:\PCTCP\PCTCP.INI C:\PCTCP\ODIPKT PCTCP=C:\PCTCP\PCTCP.INI...
Page 52 4-14 PRO/100 LAN+Modem PC Card User’s Guide FTP Software PC/TCP Packet Driver Installation with OnNet 1.1 C:\PCTCP\M16BPD.COM C:\PCTCP\ETHDRV.EXE DEVICE=[ PATH ]IPCUST.SYS DEVICE=[ PATH ]IFCUST.SYS M16BPD...
Page 53 Windows 3.x/MS-DOS Installation 4-15 ODI with FTP Software PC/TCP and NetWare DEVICE=[ PATH ]IPCUST.SYS DEVICE=[ PATH ]IFCUST.SYS M16BODI IPXODI ODIPKT ETHDRV...
Page 54 4-16 PRO/100 LAN+Modem PC Card User’s Guide Generic Installation HP LAN Manager NDIS 2.0 Driver IBM Local Area Network Support Program IBM Local Area Network Support Program (version 1.36) NDIS 2.0 Driver A:\NDIS...
Page 55 Windows 3.x/MS-DOS Installation 4-17 DEVICE=\LSP\M16BNDIS.EXE IBM Local Area Network Support Program (version 1.2) NDIS 2.0 Driver...
Page 56 4-18 PRO/100 LAN+Modem PC Card User’s Guide DEVICE=\XX.DOS DEVICE=\M16BNDIS.EXE DEVICE=\DXMT0MOD.SYS DEVICE=\DXMT0MOD.SYS O=N BINDINGS = TCMAC2 BINDINGS = INTELNET [INTELNET] DRIVERNAME = INTEL$ IBM PC LAN and IBM DOS LAN Requester...
Page 57: Manual Installation
Windows 3.x/MS-DOS Installation 4-19 Manual Installation Note DCOMPVLM [ PATH ]...
Page 58 4-20 PRO/100 LAN+Modem PC Card User’s Guide Microsoft LAN Manager Microsoft LAN Manager (version 2.1) NDIS 2.0 Driver Microsoft LAN Manager (version 2.1) with Windows for Workgroups 3.11...
Page 59 Windows 3.x/MS-DOS Installation 4-21 Windows for Workgroups NDIS 2.01 and ODI Drivers...
Page 60 4-22 PRO/100 LAN+Modem PC Card User’s Guide Windows for Workgroups Version 3.11 and NetWare (Using the ODI driver)
Page 61 Windows 3.x/MS-DOS Installation 4-23 Note...
Page 62 4-24 PRO/100 LAN+Modem PC Card User’s Guide C:\WINDOWS\NET START C:\WINDOWS\ODIHLP.EXE Windows for Workgroups 3.11 Using the NDIS 2.0 Driver...
Page 63 Windows 3.x/MS-DOS Installation 4-25 How to Remove an Existing Windows for Workgroups Installation CD \WINDOWS\SYSTEM MKDIR OEM DIR OEM?.INF...
Page 64 4-26 PRO/100 LAN+Modem PC Card User’s Guide Novell NetWare ODI Driver NetWare Note DCOMPVLM [ PATH ]...
Page 65 Windows 3.x/MS-DOS Installation 4-27 SunSoft PC-NFS (version 3.5) NDIS 2.0 Driver [YOUR-MAC-MODULE] DRIVERNAME = YOURMAC$ OPTION1 = VALUE1 ETC. [NFS-NDIS] DRIVERNAME = NFSLINK1 BINDINGS = YOUR-MAC-MODULE [INTELNET] DRIVERNAME = INTEL$ [NFS-NDIS] DRIVERNAME = NFSLINK$ BINDINGS = INTELNET...
Page 66 4-28 PRO/100 LAN+Modem PC Card User’s Guide DEVICE=C:\LANMAN\M16BNDIS.EXE DEVICE=C:\LANMAN\PROTMAN.SYS DEVICE=C:\LANMAN\NFS-NDIS.SYS DEVICE=C:\LANMAN\PROTMAN.SYS DEVICE=C:\LANMAN\M16BNDIS.EXE DEVICE=C:\LANMAN\NFS-NDIS.SYS C:\LANMAN\NETBIND NET INIT Ungermann-Bass Net/One for DOS NDIS 2.0 Driver Ungermann-Bass Net/One LAN Manager version 2.1 Installation...
Page 67 Windows 3.x/MS-DOS Installation 4-29 DEVICE = [ PATH ]M16BNDIS.EXE BINDINGS = UBLOOP [UBLOOP] DRIVERNAME = UBLOOP$ BINDINGS = INTELNET ;INTEL ADAPTER [INTELNET] DRIVERNAME = INTEL$ Wollongong PathWay Access for DOS NDIS and ODI Drivers Wollongong PathWay NDIS Installation...
Page 68 4-30 PRO/100 LAN+Modem PC Card User’s Guide DEVICE=C:\PATHWAY\PWTCP.SYS DEVICE=\PATHWAY\[PROTMAN FILE] /I:C:\PATHWAY DEVICE=\PATHWAY\M16BNDIS.EXE Wollongong PathWay ODI Installation DCOMPVLM PATHWAY...
Page 69 Windows 3.x/MS-DOS Installation 4-31 M16BODI IPXODI (ONLY IF USING NOVELL NETWARE) (ONLY IF USING NOVELL NETWARE) Windows 3.x Modem Configuration Notes Note...
Page 70 4-32 PRO/100 LAN+Modem PC Card User’s Guide Using Network or Modem Communications under Windows 3.x Using Modem Communications Only under Windows IMENABLE Installing Communications and Fax Software Running Windows Communications and Fax Software Running DOS Communications and Fax Software...
Page 71 Windows 3.x/MS-DOS Installation 4-33 COM Ports, IRQs, and I/O Base Addresses Automatic COM Port Detection Manually Setting COM Port, Interrupt, and I/O Address Values Note...
Page 72 Sample NET.CFG File (ODI Driver) with COM Port Setting LINK DRIVER M16BODI INT 10 PORT 280 MEM D2000 COM3 Sample PROTOCOL.INI (NDIS Driver) with COM Port Setting [INTELNET] DRIVERNAME=INTEL$ IRQ=10 IOADDRESS=0X320 MEM=0XD2000 MODE=IO COM4 Sample Packet Driver Command Line with COM Port Setting M16BPD COM3 MEM=D8000 Sample IMENABLE.COM Command Line...
Page 73 Windows 3.x/MS-DOS Installation 4-35 Changing Interrupt or I/O Address Settings Preventing Memory Conflicts Memory Manager Exclusions DEVICE=C:\PATH\EMM386.EXE NOEMS X=CC00-CDFF...
Page 74: Windows 3.X Modem Driver Settings
4-36 PRO/100 LAN+Modem PC Card User’s Guide Notes Windows and EMM386 Windows 3.x Modem Driver Settings Modem Driver Configuration Notes...
Page 75: Windows 3.X Network Driver Parameters
Windows 3.x/MS-DOS Installation 4-37 IMENABLE.COM Keywords COMX AUTO (X = 1, 2, 3, OR 4) COMIRQ NOT USED (3 TO 15) COMBASE NOT USED (0X248 TO 0X3F8) IOWAITSTATES= AUTO (1, 2, OR 3) MEMORY= 0XD2000 (0XC0000 TO 0XE0000) MEMWAITSTATES= AUTO (1, 2, OR 3) SLOT= AUTO...
Page 76: Odi Settings (For M16Bodi.com)
4-38 PRO/100 LAN+Modem PC Card User’s Guide ODI Settings (for driver M16BODI.COM) DOS ODI Driver Configuration Notes (M16BODI.COM) LINK DRIVER M16BODI NET.CFG Example LINK DRIVER M16BODI INT 5 PORT 280 MEM D2000...
Page 77 Windows 3.x/MS-DOS Installation 4-39 M16BODI.COM Keywords COMX AUTO (X = 1, 2, 3, OR 4) COMIRQ= AUTO (3 TO 15) COMBASE= AUTO (0X248 TO 0X3F8) INTERRUPT AUTO (3 - 15) IOADDRESS AUTO (240 - 380) IOWAITSTATES (1 - 3) LINESPEED AUTO (10 OR 100) LINKDISABLE...
Page 78 4-40 PRO/100 LAN+Modem PC Card User’s Guide NDIS 2.0.1 Settings (for driver M16BNDIS.EXE) NDIS 2.0.1 DOS Driver Configuration Notes PROTOCOL.INI Example [INTELNET] DRIVERNAME=INTEL MEM=0XD2000 MODE=IO...
Page 79 COMX AUTO (X = 1, 2, 3, OR 4) COMIRQ= AUTO (3 TO 15) COMBASE= AUTO (0X248 TO 0X3F8) DRIVERNAME=INTEL$ (REQUIRED FIRST ITEM IN PROTOCOL.INI) INTERRUPT= AUTO (3 - 15) IOADDRESS= AUTO (240 - 380) IOWAITSTATES= (1 - 3) LINESPEED=...
Page 80 4-42 PRO/100 LAN+Modem PC Card User’s Guide Packet Driver Keywords COMX AUTO (X = 1, 2, 3, OR 4) COMIRQ= AUTO (3 TO 15) COMBASE= AUTO (0X248 TO 0X3F8) INTERRUPT= AUTO (3 - 15) IOADDRESS= AUTO (240 - 380) IOWAITSTATES= (1 - 3) LINESPEED= AUTO...
Page 81 Windows 3.x/MS-DOS Installation 4-43 M16BPD IOADDRESS=320 INT=7 ETHDRV Driver Keyword Alphabetical Reference...
Page 82 4-44 PRO/100 LAN+Modem PC Card User’s Guide...
Page 83 Windows 3.x/MS-DOS Installation 4-45...
Page 84 4-46 PRO/100 LAN+Modem PC Card User’s Guide...
Page 85: Error Messages For Windows 3.X And Ms-Dos Drivers
Windows 3.x/MS-DOS Installation 4-47 Error Messages for Windows 3.x and MS-DOS drivers...
Page 86: Pro/100 Lan+Modem Pc Card User's Guide
4-48 PRO/100 LAN+Modem PC Card User’s Guide...
Page 87 Windows 3.x/MS-DOS Installation 4-49...
Page 88 4-50 PRO/100 LAN+Modem PC Card User’s Guide...
Page 89: Windows 3.X Troubleshooting
Windows 3.x/MS-DOS Installation 4-51 Windows 3.x Troubleshooting Important A driver failed to load, and I’m using Card and Socket Services Recommendations for Use of Card and Socket Ser- vices with the PRO/100 PC Card. DEVICE=C:\PATH\EMM386.EXE NOEMS X=C000-DFFF...
Page 90 4-52 PRO/100 LAN+Modem PC Card User’s Guide DEVICE=C:\THINKPAD\IBMDSS01.SYS /S0=2 DEVICE=C:\THINKPAD\IBMDOSCS.SYS DEVICE=C:\THINKPAD\DICRMU01.SYS /MA=C800-CFFF (/MA SHOULD MATCH THE EMM386 EXCLUSION) DEVICE=C:\THINKPAD\AUTODRV.SYS C:\THINKPAD\AUTODRV.INI (CALLED A “GENERIC” CARD DRIVER)
Page 91 Windows 3.x/MS-DOS Installation 4-53 ETHERNET. CARDID=ETHER,CREDI ;OPTION=IGNORE (THE SEMICOLON IS REQUIRED) PORT1=320, IRQ=5, MEMORY1=C800, WAITSTATE=1 Phoenix DEVICE=C:\PCMPLUS3\PCMSS.EXE DEVICE=C:\PCMPLUS3\PCMCS.EXE DEVICE=C:\PCMPLUS3\PCMRMAN.SYS DEVICE=C:\PMCPLUS3\PCMSCD.EXE (CALLED A “GENERIC” CARD DRIVER) SystemSoft DEVICE=C:\CARDSOFT\SOCKET_SERVICES_DRIVER (THIS FILE VARIES BY MACHINE TYPE) DEVICE=C:\CARDSOFT\CS.EXE DEVICE=C:\CARDSOFT\CSALLOC.EXE C:\CARDSOFT\CSALLOC.INI DEVICE=C:\CARDSOFT\CARDID.EXE (CALLED A “GENERIC” CARD DRIVER)
Page 92 4-54 PRO/100 LAN+Modem PC Card User’s Guide A driver failed to load, and I’m NOT using Card and Socket Services DEVICE=C:\PATH\EMM386.EXE NOEMS X=D200-D3FF...
Page 93 Windows 3.x/MS-DOS Installation 4-55...
Page 94 4-56 PRO/100 LAN+Modem PC Card User’s Guide The driver loaded successfully, but I can’t get on the network...
Page 95 Windows 3.x/MS-DOS Installation 4-57 The driver loaded, but my DOS modem software won’t work...
Page 96 4-58 PRO/100 LAN+Modem PC Card User’s Guide ECHO ATDTNNNNNNN > COMX: The modem works in DOS, but not in Windows [VIPX] VIRTUALIZE IRQX = OFF...
Page 97 Windows 3.x/MS-DOS Installation 4-59 BOOT. COMM.DRV=COMM.DRV 386ENH. DEVICE=*VCD...
Page 98: Computer-Specific Application Notes (Windows 3.X)
4-60 PRO/100 LAN+Modem PC Card User’s Guide I can't hear the modem ATM1 Computer-Specific Application Notes (Windows 3.x) Ambra DEVICE=C:\DOS\EMM386.EXE NOEMS X=D000-DCFF DEVICE=C:\PCM3\CNFIGNAM.EXE /DEFAULT DEVICE=C:\PCM3\PCMSS.EXE DEVICE=C:\PCM3\PCMCS.EXE DEVICE=C:\PCM3\PCMRMAN.SYS DEVICE=C:\PCM3\PCMSCD.EXE REM DEVICE=C:\PCM3\PCMATA.SYS REM DEVICE=C:\PCM3\PCMFFCS.EXE...
Page 99 Windows 3.x/MS-DOS Installation 4-61 REM DEVICE=C:\PCM3\DBLFALSH.EXE REM DEVICE=C:\PCM3\MS-FLASH.SYS AST Power Exec DEVICE=C:\DOS\EMM386.EXE NOEMS X=D000-DFFF DEVICE=C:\CARDSOFT\SS365SL.EXE DEVICE=C:\CARDOSFT\CS.EXE DEVICE=C:\CARDSOFT\CSALLOC.EXE REM DEVICE=C:\CARDSOFT\ATADRV.EXE REM DEVICE=C:\CARDSOFT\MTSRAM.EXE REM DEVICE=C:\CARDSOFT\MTDDRV.EXE DEVICE=C:\CARDSOFT\CARDID.EXE Austin Notebooks series DEVICE=C:\DOS\EMM386.EXE X=D000-D7FF DEVICE=C:\PCMCIA\CARDSOCK.SYS /IO:240 DEVICE=C:\PCMCIA\CTALKCS.EXE DEVICE=C:\PCMCIA\CARDTALK.SYS /A /IOW=320-31F /MEMW=D000-D7FF Compaq Contura Aero DEVICE=C:\DOS\EMM386.EXE NOEMS X=D000-D5FF DEVICE=C:\CPQDOS\SSVLSI.EXE DEVICE=C:\CPQDOS\CS.EXE DEVICE=C:\CPQDOS\CSALLOC.EXE C:\CPQDOS\CSALLOC.INI...
Page 100 4-62 PRO/100 LAN+Modem PC Card User’s Guide REM DEVICE=C:\CPQDOS\MS-FLASH.SYS Compaq LTE Elite models DEVICE=C:\DOS\EMM386.EXE NOEMS X=D000-DFFF DEVICE=C:\CPQDOS\SSVLSI.EXE DEVICE=C:\CPQDOS\CS.EXE DEVICE=C:\CPQDOS\CSALLOC.EXE C:\CPQDOS\CSALLOC.INI DEVICE=C:\CPQDOS\ATADRV.EXE DEVICE=C:\CPQDOS\CARDID.EXE C:\CPQDOS\CARDID.INI DEVICE=C:\CPQDOS\MEMDRV.EXE DEVICE=C:\CPQDOS\DBLFLASH.EXE DEVICE=C:\CPQDOS\MS-FLASH.SYS Dell Latitude XP series DEVICE=C:\DOS\EMM386.EXE NOEMS X=D000-DBFF DEVICE=C:\CARDSOFT\SSVADEM.EXE DEVICE=C:\CARDOSFT\CS.EXE DEVICE=C:\CARDSOFT\CSALLOC.EXE REM DEVICE=C:\CARDSOFT\ATADRV.EXE REM DEVICE=C:\CARDSOFT\MTSRAM.EXE REM DEVICE=C:\CARDSOFT\MTDDRV.EXE DEVICE=C:\CARDSOFT\CARDID.EXE INSTALL=C:\CARDSOFT\CS_APM.EXE...
Page 101 Windows 3.x/MS-DOS Installation 4-63 Gateway ColorBook series DEVICE=C:\DOS\EMM386.EXE NOEMS X=D000-DFFF DEVICE=C:\CARDSOFT\SSCIRRUS.EXE DEVICE=C:\CARDOSFT\CS.EXE DEVICE=C:\CARDSOFT\CSALLOC.EXE REM DEVICE=C:\CARDSOFT\ATADRV.EXE REM DEVICE=C:\CARDSOFT\MTSRAM.EXE REM DEVICE=C:\CARDSOFT\MTDDRV.EXE DEVICE=C:\CARDSOFT\CARDID.EXE IBM ThinkPad 350, 755CS DEVICE=C:\DOS\EMM386.EXE X=C800-CFFF DEVICE=C:\THINKPAD\IBMDSS01.SYS DEVICE=C:\THINKPAD\IBMDOSCS.SYS DEVICE=C:\THINKPAD\DICRMU01.SYS /MA=C800-CFFF DEVICE=C:\THINKPAD\$ICPMDOS.SYS REM DEVICE=C:\THINKPAD\AUTODRV.SYS C:\THINKPAD\AUTODRV.INI IBM ThinkPad 360CS DEVICE=C:\DOS\EMM386.EXE X=C800-CFFF DEVICE=C:\THINKPAD\IBMDSS01.SYS DEVICE=C:\THINKPAD\IBMDOSCS.SYS DEVICE=C:\THINKPAD\DICRMU01.SYS /MA=C800-CFFF DEVICE=C:\THINKPAD\$ICPMDOS.SYS...
Page 102 4-64 PRO/100 LAN+Modem PC Card User’s Guide IBM ThinkPad 750CS DEVICE=C:\DOS\EMM386.EXE X=B000-BFFF X=C800-CFFF DEVICE=C:\THINKPAD\IBMDSS01.SYS /S0=2 DEVICE=C:\THINKPAD\IBMDOSCS.SYS DEVICE=C:\THINKPAD\DICRMU01.SYS /MA=C800-CFFF DEVICE=C:\THINKPAD\$ICPMDOS.SYS DEVICE=C:\THINKPAD\AUTODRV.SYS C:\THINKPAD\AUTODRV.INI REM DEVICE=C:\IBMAUDIO\AUDIODD\TPAUDDD.SYS NEC Versa models DEVICE=C:\DOS\EMM386.EXE NOEMS X=D000-DFFF DEVICE=C:\CARDSOFT\SSCIRRUS.EXE DEVICE=C:\CARDSOFT\CS.EXE DEVICE=C:\CARDSOFT\CSALLOC.EXE C:\CARDSOFT\CSALLOC.INI REM DEVICE=C:\CARDSOFT\ATADRV.EXE REM DEVICE=C:\CARDSOFT\CARDID.EXE C:\CARDSOFT\CARDID.INI REM DEVICE=C:\CARDSOFT\MEMDRV.EXE REM DEVICE=C:\CARDSOFT\DBLFLASH.EXE REM DEVICE=C:\CARDSOFT\MS-FLASH.SYS Sharp 8650...
Page 103 Windows 3.x/MS-DOS Installation 4-65 Toshiba 19xx, 47xx, 48xx series DEVICE=C:\DOS\EMM386.EXE NOEMS X=C800-CFFF DEVICE=C:\PCMPLUS3\CNFIGNAM.EXE /DEFAULT DEVICE=C:\PCMPLUS3\PCMSS.EXE DEVICE=C:\PCMPLUS3\PCMCS.EXE DEVICE=C:\PCMPLUS3\PCMRMAN.SYS DEVICE=C:\PCMPLUS3\PCMSCD.EXE...
Page 104 4-66 PRO/100 LAN+Modem PC Card User’s Guide...
Page 105: Utilities And Applications
CHAPTER 5 Utilities and Applications UTILITIES Country Identifier Utility...
Page 106: Modem Test Utility
PRO/100 LAN+Modem PC Card User’s Guide How to Use Country Identifier Modem Test Utility...
Page 107: Diagnostic Test Utility (M16Btest.exe)
Utilities and Applications Diagnostic Test Utility (M16BTEST.EXE) Executing the Self Test Note Note...
Page 108 PRO/100 LAN+Modem PC Card User’s Guide Main Screen TEST CONFIGURE SOFTWARE...
Page 109: Com Port Monitor (Windows 3.X Only)
Utilities and Applications HARDWARE NETWORK RESOURCES ADVANCED ABOUT HELP EXIT COM port monitor (Windows 3.x only)
Page 110: Communications Application Notes And Modem Script Files
PRO/100 LAN+Modem PC Card User’s Guide How to Use the COM port monitor Communications Application Notes and Modem Script Files Note...
Page 111 Utilities and Applications Introduction Modem Setup with a Communications Program...
Page 112 PRO/100 LAN+Modem PC Card User’s Guide Modem Setup After Windows 95 Installation America Online version 3.0...
Page 113 Utilities and Applications America Online version 3.0 with Windows 95...
Page 114 5-10 PRO/100 LAN+Modem PC Card User’s Guide CompuServe WINCIM version 2.5.1 with Internet Ex- plorer version 2.1 CompuServe WINCIM version 3.02 with Windows 95...
Page 115 5-11 Utilities and Applications Note LapLink version 6.0...
Page 116 5-12 PRO/100 LAN+Modem PC Card User’s Guide LapLink version 6.0 with Windows 95...
Page 117 5-13 Utilities and Applications Lotus cc:Mail Mobile version 2.22 with Windows 3.1...
Page 118 5-14 PRO/100 LAN+Modem PC Card User’s Guide Lotus cc:Mail Mobile version 2.22 with Windows 95 Lotus Notes version 4.11A with Windows...
Page 119 5-15 Utilities and Applications Lotus Notes version 4.11A with Windows 95 and NT...
Page 120 5-16 PRO/100 LAN+Modem PC Card User’s Guide Microsoft Dial-Up Adapter Network Setup for Windows...
Page 121 5-17 Utilities and Applications Microsoft Remote Access Server (RAS)
Page 122 5-18 PRO/100 LAN+Modem PC Card User’s Guide COPY MODEM.INF MODEM.BAK COPY MODEM.INF+M16BRAS1.INF MODEM.NEW COPY MODEM.NEW MODEM.INF MAXCARRIERBPS= 56000 MAXCONNECTBPS= 56000...
Page 123 5-19 Utilities and Applications Prodigy Internet version 1.1.6 with Windows 95...
Page 124 5-20 PRO/100 LAN+Modem PC Card User’s Guide...
Page 125: Modem Reference
CHAPTER 6 Modem Reference Result Codes...
Page 126 PRO/100 LAN+Modem PC Card User’s Guide...
Page 127 Modem Reference...
Page 128: At Command Reference
PRO/100 LAN+Modem PC Card User’s Guide AT Command Reference Special Commands +++ Online Escape Sequence Repeat Last Command...
Page 129 Modem Reference AT Command Reference Answer Select Communications Standard Note Break (Escape) command...
Page 130 PRO/100 LAN+Modem PC Card User’s Guide Carrier Control Dial A Telephone Number Dial Modifiers...
Page 131 Modem Reference Dial Modifiers (continued)
Page 132 PRO/100 LAN+Modem PC Card User’s Guide Dial Modifiers (continued) Echo Command...
Page 133 Modem Reference Online Data Character Echo command Switch Hook Options Request ID Information...
Page 134 6-10 PRO/100 LAN+Modem PC Card User’s Guide Monitor Speaker Volume Speaker On/Off Selection Negotiation of Handshaking Options Online Command...
Page 135 6-11 Modem Reference Select Pulse Dialing Result Code Display Options Repeat command Select Tone Dialing Result Code Format Options...
Page 136 6-12 PRO/100 LAN+Modem PC Card User’s Guide Negotiation Progress Message Selection Result Code Set/Call Progress Option...
Page 137 6-13 Modem Reference Note Long Space Disconnect Option Recall Stored Profile &Bn V.32 Automatic Retrain Options...
Page 138 6-14 PRO/100 LAN+Modem PC Card User’s Guide &Cn Data Carrier Detect (DCD) &Dn Data Terminal Ready (DTR) Options...
Page 139 6-15 Modem Reference &Fn Load Factory Settings Local Factory Settings &Gn V.22bis Guard Tone Selection &Jn Auxiliary Relay Option...
Page 140 6-16 PRO/100 LAN+Modem PC Card User’s Guide &Kn Local Flow Control Options &Mn Asynchronous Communications Mode &Pn Pulse Dial Make-to-Break Ratio Selec- tion (Japan only)
Page 141 6-17 Modem Reference &Qn Asynchronous Communications Mode &Sn Data Set Ready (DSR) Options &Tn Self-Test Commands...
Page 142 6-18 PRO/100 LAN+Modem PC Card User’s Guide &V View Configuration Profile &Wn Write Active Profile to Memory &Yn Select Stored Profile for Hard Reset &Zn=x Store Telephone Number \Gn Modem Port Flow Control Adjust BPS Rate Control...
Page 143 6-19 Modem Reference Break Control \Nn Error Mode Control Selection \Qn Local Flow Control Selection...
Page 144 6-20 PRO/100 LAN+Modem PC Card User’s Guide Inactivity Timer Limit XON/XOFF Pass Through %B View Numbers in Blacklist %Cn Data Compression Control -Cn Data Calling Tone...
Page 145 6-21 Modem Reference Note +GCAPRequest Complete Capabilities List +GCI Country of Installation...
Page 146 6-22 PRO/100 LAN+Modem PC Card User’s Guide...
Page 147 6-23 Modem Reference +GMI Request Manufacturer Identification +GMM Request Model Identification +GMR Request Revision Identification +MS Modulation Selection...
Page 148 6-24 PRO/100 LAN+Modem PC Card User’s Guide...
Page 149: S-Register Reference
6-25 Modem Reference S-Register Reference Introduction to S-Registers...
Page 150 6-26 PRO/100 LAN+Modem PC Card User’s Guide S-Register Reference Ring to Answer After Ring Counter AT Escape Character Command Line Termination Character...
Page 151 6-27 Modem Reference Response Formatting Character Command Line Editing Character Wait Before Blind Dialing Connection Completion Time-Out...
Page 152 6-28 PRO/100 LAN+Modem PC Card User’s Guide Duration of Pause for Comma Dial Modi- fier S10 Delay Between Lost Carrier/Hang Up S11 DTMF Tone Duration S12 Escape Guard Time S28 V.34 Modulation Enable/Disable S30 Inactivity Timer...
Page 153 6-29 Modem Reference S34 DTE Throughput Limit S35 Data Calling Tone S36 Negotiation Fallback S37 Dial Line Rate...
Page 154 6-30 PRO/100 LAN+Modem PC Card User’s Guide S40 ETC Startup Autorating S42 Auto Rate S43 Auto Mode...
Page 155 6-31 Modem Reference S46 Data Compression Selection S48 LAPM Error Control and Feature Nego- tiation S89 Timer to Control Sleep Mode...
Page 156 6-32 PRO/100 LAN+Modem PC Card User’s Guide S91 Line Transmit Level S92 Direct Connect Transmit Level S95 Negotiation Message Options S98 Cable Detection Options...
Page 157: Automated Customer Support
APPENDIX A Automated Customer Support You can reach Intel’s automated support services 24 hours a day, every day at no charge. The services contain the most up-to-date information about Intel products. You can access installation instructions, troubleshooting information, and general product information.
Page 158 Worldwide access: Intel has technical support centers worldwide. Many of the centers are staffed by technicians who speak the local languages. For a list of all Intel support centers, the telephone numbers, and the times they are open, download document 9089 from one of the automated services.
Page 159: Specifications
APPENDIX B Specifications General Specifications Size: 3.37 in x 2.13 in x 0.197 in (85.6 mm x 54.0 mm x 5.0 mm) Weight: 1.47 oz (42.1 g) Temperature range: Operating: 32°F to 131°F (0°C to 55°C) Storage: -4°F to 149°F (-20°C to 65°C) Humidity: 95% maximum noncondensing Memory size:...
Page 160: Modem Specifications
PRO/100 LAN+Modem PC Card User’s Guide Modem Specifications Data modulation: V.34 from 33,600 down to 2400 bps, V.32terbo with trellis coding at 19200 and 16800 bps; V.32bis (with trellis coding at 14400, 12000, 9600, and 7200 bps; uncoded at 4800 bps); V.32 (with trellis coding at 9600 bps, uncoded at 4800 bps);...
Page 161: Limited Warranty
APPENDIX C Limited Lifetime Warranty Returning a defective product...
Page 162 PRO/100 LAN+Modem PC Card User’s Guide Limitation of Liability and Remedies...
Page 163: Agency Notices
APPENDIX D Agency Notices FCC Compliance Statement FCC Rules and Regulations - Part 15...
Page 164 PRO/100 LAN+Modem PC Card User’s Guide FCC Rules and Regulations - Part 68...
Page 165 Agency Notices Canadian compliance (Industry Canada)
Page 166 PRO/100 LAN+Modem PC Card User’s Guide Manufacturer declaration...
Page 167: Software License Agreement
PROMPTLY RETURN THE SOFTWARE PACKAGE AND ANY ACCOMPANYING ITEMS. LICENSE: Intel Corporation (“Intel”) grants you the non-exclusive right to use the enclosed software program (the “Software”). You will not use, copy, modify, rent, sell or transfer the Software or any portion thereof except as provided in this Agreement.
Page 168 Software terminates your right to use the Software. OWNERSHIP AND COPYRIGHT OF SOFTWARE: Title to the Software and all copies thereof remain with Intel or its vendors. The Software is copyrighted and is protected by United States and international copyright laws. You will not remove the copyright notice from the Software.
Page 169 Software License Agreement U.S. GOVERNMENT RESTRICTED RIGHTS: The Software and documentation were developed at private expense and are provided with “RESTRICTED RIGHTS.” Use, duplication, or disclosure by the Government is subject to restrictions as set forth in FAR 52.227-14 and DFAR 252.227-7013 et seq.
Page 170 PRO/100 LAN+Modem PC Card User’s Guide...
Page 171: Index
Index Symbols...
Page 172 Index-2...
Page 173 Index-3...
Page 174 Index-4...
Page 175 Index-5...
Page 176 Index-6...
Page 177 Index-7...
Page 178 Index-8...

This manual is also suitable for:

Etherexpress pro/100 mbla1656

Intel EtherExpress PRO/100 User Manual

Hardware Installation

Windows 95 Installation

Windows NT Installation

Windows 3.X/Dos Installation

Utilities and Applications

Modem Reference

Automated Customer Support

Specifications

Limited Warranty

Agency Notices

Software License Agreement

Index

Quick Links

Troubleshooting

Related Manuals for Intel EtherExpress PRO/100

Summary of Contents for Intel EtherExpress PRO/100

This manual is also suitable for:

Table of Contents
