In the Mirrored Channel mode, both sockets must simultaneously satisfy the DIMM
matching rules on their respective adjacent channels. If the DDR3 DIMMs on
adjacent channels of a socket are not identical, the BIOS configures both the
processor sockets to default to the Independent Channel mode. If DIMM_D1 and
DIMM_E1 are not identical, then the compute module switches to the Independent
Channel Mode.
Installing DIMMs
DIMM slots are numbered as follows:
®
Intel
Compute Module MFS5520VI User Guide
DIMM B2
DIMM A1
DIMM A2
DIMM F1
DIMM D2
DIMM F2
DIMM D1
DIMM E1
DIMM E2

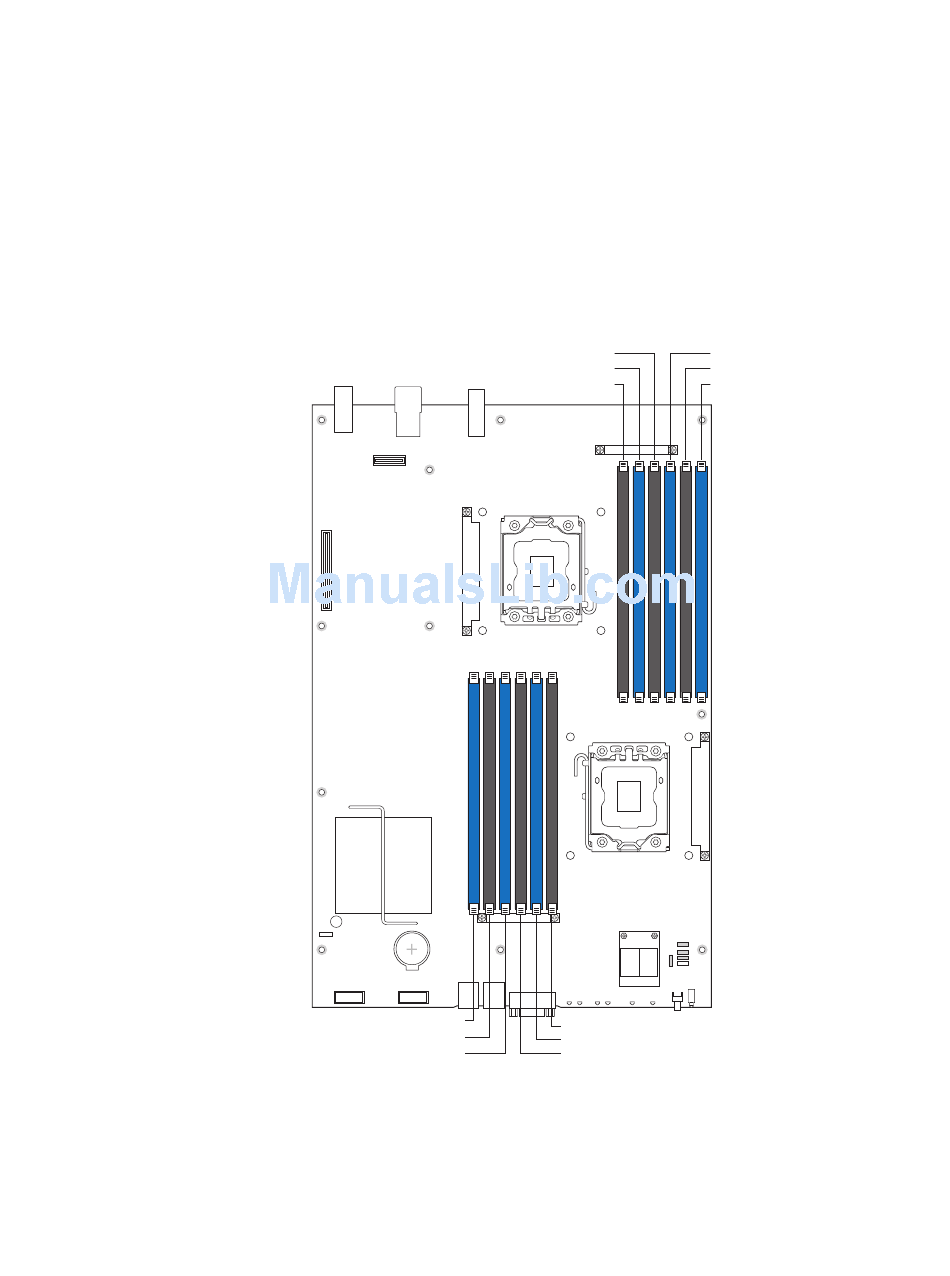

Figure 29. DIMM Slot Order
DIMM B1
DIMM C2
DIMM C1
AF003098
35
