Reinstalling Components
21. Reinstall the processor air duct.
1
I/ O
2
1
2
ID
AF003080

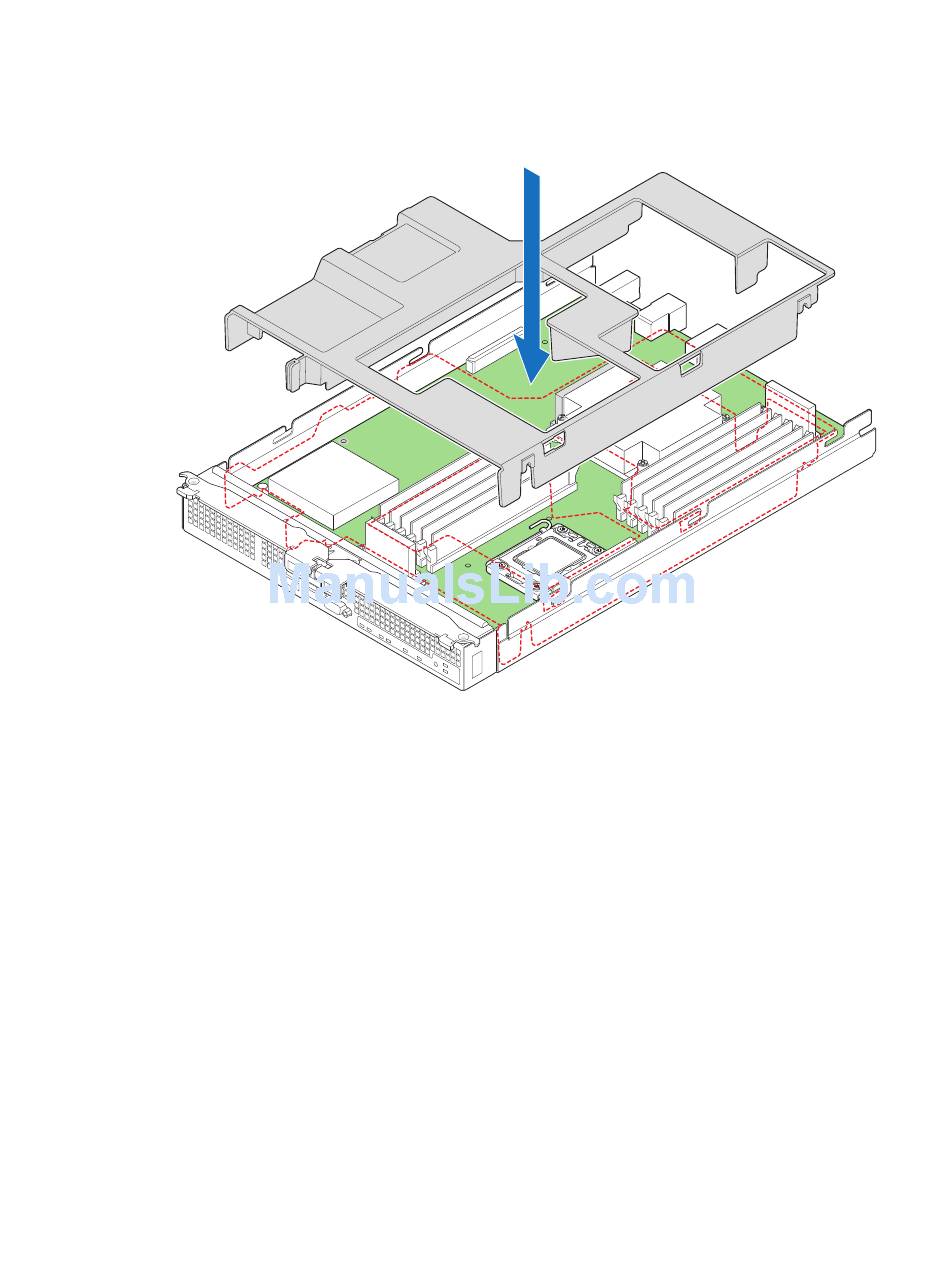

Figure 27. Reinstalling Processor Air Duct

22. Reinstall the top cover. For instructions, see "Installing the Top Cover" on page 16.
23. Reinstall the server compute module in the chassis. For instructions, see "Installing
a Compute Module into the Chassis" on page 14.
®
32 Intel Compute Module MFS5520VI User Guide
