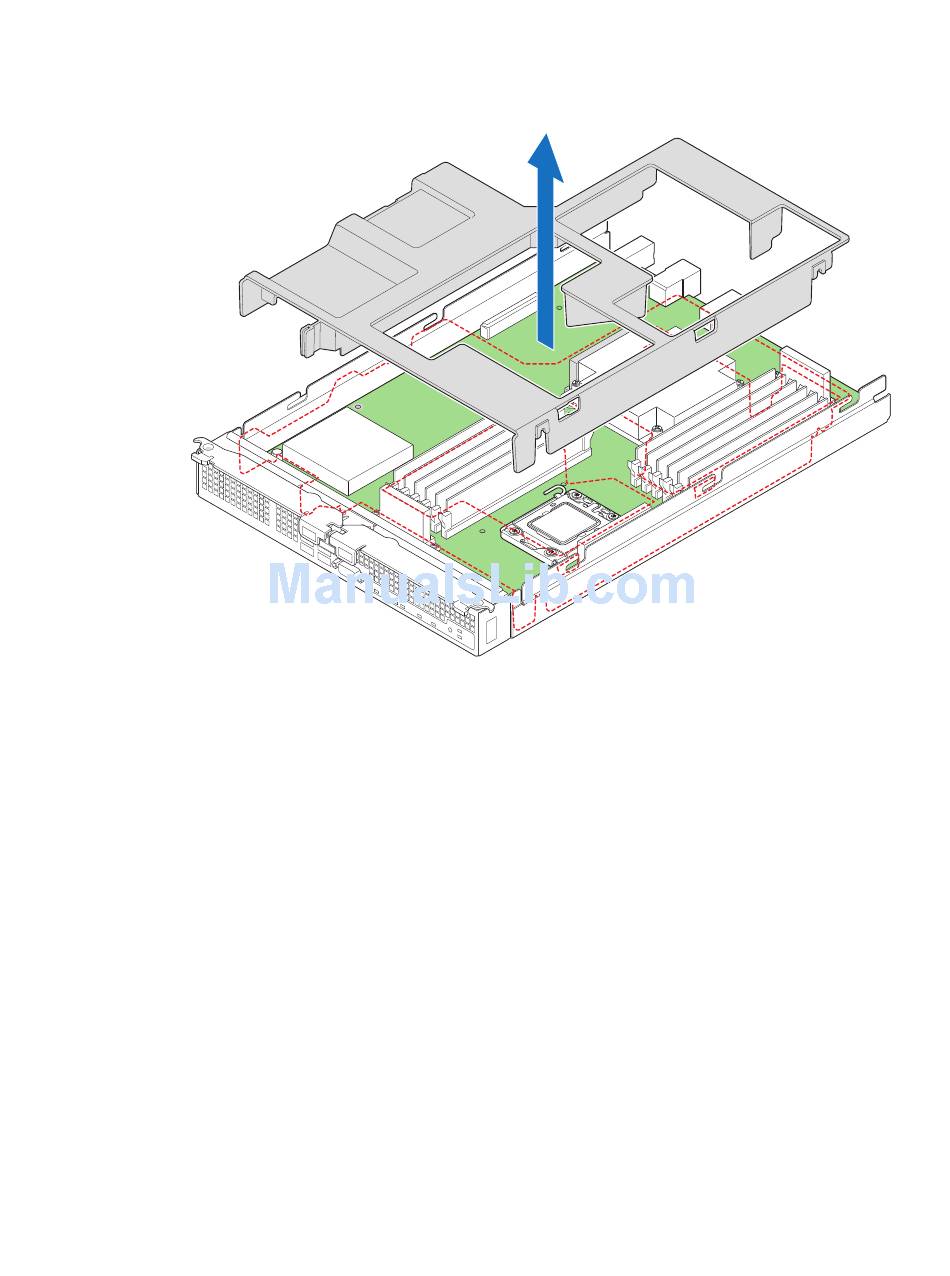

Figure 33. Removing Processor Air Duct - Intel MFS5520VI - Multi-Flex Server Compute Module User Manual

4. Remove the processor air duct (see
5. Locate the DIMM socket.
6. Gently open the retaining clips at each end of the socket (see letter "A" in
This slightly lifts the DIMM from its socket.
7. Holding the DIMM by the edges, remove it from the socket (see letter "B" in
Figure
®
Intel Compute Module MFS5520VI User Guide
1
I/ O
2
1
2
ID

Figure 33. Removing Processor Air Duct

34).
Figure 33).
AF003080
Figure 34).
