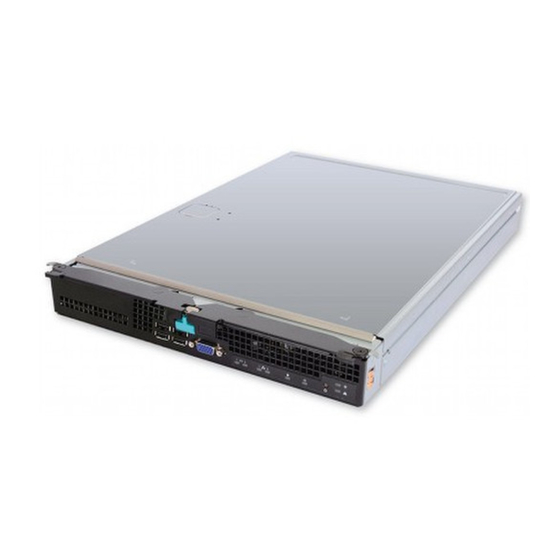

Intel MFS5520VI - Multi-Flex Server Compute Module User Manual

Compute module
Hide thumbs

Advertisement

Quick Links

®
Intel
Compute Module MFS5520VI User Guide
®
A Guide for Technically Qualified Assemblers of Intel
Identified Subassemblies/
Products
Intel Order Number E60459-006

Advertisement

loading

  Also See for Intel MFS5520VI - Multi-Flex Server Compute Module

  Related Manuals for Intel MFS5520VI - Multi-Flex Server Compute Module

  Summary of Contents for Intel MFS5520VI - Multi-Flex Server Compute Module

  • Page 1 ® Intel Compute Module MFS5520VI User Guide ® A Guide for Technically Qualified Assemblers of Intel Identified Subassemblies/ Products Intel Order Number E60459-006...
  • Page 2 Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for any other application in which the failure of the Intel product could create a situation where personal injury or death may occur.
  • Page 3: Preface

    Chapter 3 provides information regarding the BIOS Setup Utility and how to update the compute module BIOS. This section includes information on how to access and use the ® BIOS Setup Utility as well as update the compute module firmware using the Intel ® Modular Server Control UI and the latest Intel Modular Server System MFSYS25/ MFSYS35 Unified Firmware Update (UFU).
  • Page 4 ® Intel Compute Module MFS5520VI User Guide...
  • Page 5: Safety Information

    Server Boards and Server Chassis Safety Information at http://support.intel.com/support/motherboards/server/sb/cs-010770.htm. Wichtige Sicherheitshinweise Lesen Sie zunächst sämtliche Warn- und Sicherheitshinweise in diesem Dokument, bevor ® Sie eine der Anweisungen ausführen. Beachten Sie hierzu auch die Intel Server Boards and Server Chassis Safety Information unter http://support.intel.com/support/motherboards/server/sb/cs-010770.htm. Consignes de sécurité...
  • Page 6: Warnings

    Reinstalling enclosure cover: To protect internal components and for proper cooling and airflow, the compute module should not be inserted into the chassis with the cover removed; operating it without the enclosure cover in place can damage compute module parts. ® Intel Compute Module MFS5520VI User Guide...
  • Page 7: Table Of Contents

    Before You Begin .........................13 Tools and Supplies Needed ...................... 13 Installation Guidelines ....................... 13 ® Removing and Installing an Intel Compute Module MFS5520VI ........13 Removing a Compute Module from the Chassis ..............13 Installing a Compute Module into the Chassis ................14 Removing or Installing the Top Cover .................14...
  • Page 8 World Wide Web ....................... 101 Telephone ......................... 101 U.S. and Canada ........................101 Europe ............................ 101 In Asia-Pacific region ......................102 Japan ............................ 102 Latin America .......................... 102 B Product Regulatory Requirements ..............105 ® viii Intel Compute Module MFS5520VI User Guide...
  • Page 9 Selección de la ubicación ....................... 121 Manipulación del equipo ......................122 Advertencias de alimentación y eléctricas ................122 Advertencias el acceso al sistema ..................122 Descarga electrostática (ESD) ....................123 Otros peligros ......................... 124 ® Intel Compute Module MFS5520VI User Guide...
  • Page 10 D Installation/Assembly Safety Instructions ............131 English ..........................131 Deutsch ..........................133 Français ..........................136 Español ..........................138 Italiano ..........................140 ® Intel Compute Module MFS5520VI User Guide...
  • Page 11 List of Figures ® Figure 1. Intel Compute Module MFS5520VI ................1 Figure 2. Server Board ....................... 2 Figure 3. Component and Connector Locations................. 4 Figure 4. Configuration Jumper Locations ................. 5 Figure 5. Front Panel Connectors and Indicators............... 7 Figure 6.
  • Page 12 Figure 60. Error Manager Screen .................... 85 Figure 61. Exit Screen ......................86 Figure 62. Password Clear Jumper ..................90 Figure 63. CMOS Clear Jumper ....................92 Figure 64. BIOS Recover Jumper.................... 94 ® Intel Compute Module MFS5520VI User Guide...
  • Page 13 Table 10. Security Screen Details .................... 75 Table 11. Server Management Screen Details ................ 77 Table 12. Server Management Console Redirection Details ........... 80 Table 13. Boot Options Details....................83 Table 14. Exit Screen Details ....................86 ® Intel Compute Module MFS5520VI User Guide xiii...
  • Page 14 ® Intel Compute Module MFS5520VI User Guide...
  • Page 15: Compute Module Features

    Compute Module Features ® This chapter briefly describes the main features of the Intel Compute Module MFS5520VI, as well as provides illustrations showing the location of important components and connections on the compute module. ® The Intel Compute Module MFS5520VI is shown in the following pictures.
  • Page 16: Figure 2. Server Board

    Figure 2. Server Board ® Intel Compute Module MFS5520VI User Guide...
  • Page 17: Feature Overview

    Intel Xeon Processor 5600 Series in FC-LGA 1366 Socket B package with up to 95 W Thermal Design Power (TDP) • ® 4.8 GT/s, 5.86 GT/s and 6.4 GT/s Intel QuickPath Interconnect ® (Intel QPI) • Enterprise Voltage Regulator-Down (EVRD) 11.1 •...
  • Page 18: Connector And Component Locations

    Connector and Component Locations AF003077 ® Intel 5520 Chipset I/O Hub CPU 2 Socket CPU2 DIMM Slots Power/Fault LEDs Mezzanine Card Connector 1 Power Switch CPU 1 with Heatsink Activity and ID LEDs Mezzanine Card Connector 2 Video Connector Midplane Power Connector...
  • Page 19: Configuration Jumpers

    BIOS Recover Boot from Emergency BIOS Image Default J9B9 PASSWORD Clear Clear Default Password J9A3 CMOS Clear Default Clear CMOS J9A4 BMC Force Update Default Enabled Disabled J9A5 AF003078 Figure 4. Configuration Jumper Locations ® Intel Compute Module MFS5520VI User Guide...
  • Page 20: Table 2. Configuration Jumper Description

    2-3 . You must then move the jumper back to the default position 1-2 and reinstall the compute module into the chassis. J9A5: BMC Force BMC Firmware Force Update Mode - Disabled (Default) Update BMC Firmware Force Update Mode - Enabled ® Intel Compute Module MFS5520VI User Guide...
  • Page 21: Front Panel Connectors And Indicators

    Figure 5. Front Panel Connectors and Indicators Front Panel Indicators ® The Intel Compute Module MFS5520VI includes a number of diagnostic LEDs on the front of the compute module to aid in troubleshooting. The following table lists these LEDs along with a usage description of each LED.
  • Page 22: Hardware Requirements

    To avoid integration difficulties and possible board damage, your server compute module must meet the requirements outlined below. Processor ® ® ® The Intel Compute Module MFS5520VI supports up to two Intel Xeon Processors ® ® 5500 series or two Intel Xeon...
  • Page 23: Power Supply

    Three power supplies support four to six compute modules (in any slot) plus all other modules in the chassis. Any additional power supplies above the minimum required (based on configuration) provide redundancy. ® Intel Compute Module MFS5520VI User Guide...
  • Page 24: Additional Information And Software

    Available at: system, including subsystem overviews http://www.intel.com/support/motherboards/server/mfsys25/ and mechanical drawings Accessories or other Spares, Parts List, and Configuration Guide Intel server products Available at: http://www.intel.com/support/motherboards/server/mfs5520vi/ or by using the Server Configurator Tool Available at: http://serverconfigurator.intel.com/default.aspx ® Intel Compute Module MFS5520VI User Guide...
  • Page 25 Intel ® The Intel Management Module integrated management Modular Server interface for the modular server system. For instructions and System information refer to the Intel® Modular Server System MFSYS25/MFSYS35 User Guide Available at: http://www.intel.com/support/motherboards/server/mfsys25/ ® Intel System Management Software Available at: http://www.intel.com/go/servermanagement/...
  • Page 26 ® Intel Compute Module MFS5520VI User Guide...
  • Page 27: Hardware Installations And Upgrades

    ® Removing and Installing an Intel Compute Module MFS5520VI Removing a Compute Module from the Chassis To remove a compute module from the chassis, follow these steps: 1.
  • Page 28: Installing A Compute Module Into The Chassis

    If the compute module is installed in a chassis, remove it. For instructions, see “Removing a Compute Module from the Chassis” on page Carefully lay the compute module down on a flat, non-conductive surface, with the cover side up. ® Intel Compute Module MFS5520VI User Guide...
  • Page 29: Figure 6. Removing Top Cover

    5. Lift the top cover up and off the compute module (see letter “C” in Figure 6) . Caution: Always install the top cover before installing the compute module into a chassis. I/ O AF003088 Figure 6. Removing Top Cover ® Intel Compute Module MFS5520VI User Guide...
  • Page 30: Installing The Top Cover

    Slide the top cover forward to the closed position until the retention latch fully engages (see letter “B” in Figure I/ O AF003089 Figure 7. Installing Top Cover ® Intel Compute Module MFS5520VI User Guide...
  • Page 31: Installing Or Replacing A Processor

    If the compute module is installed in a chassis, remove it. For instructions, see “Removing a Compute Module from the Chassis” on page Remove the top cover. For instructions, see “Removing the Top Cover” on page ® Intel Compute Module MFS5520VI User Guide...
  • Page 32: Figure 8. Removing Processor Air Duct

    Remove the processor air duct (see Figure I/ O AF003080 Figure 8. Removing Processor Air Duct ® Intel Compute Module MFS5520VI User Guide...
  • Page 33: Figure 9. Removing The Heatsink

    Note: The system is shipped with a spacer installed between the heatsink and the processor socket to protect the socket protective cover. This spacer will need to be removed and discarded before installing the processor. AF003161 Figure 9. Removing the Heatsink ® Intel Compute Module MFS5520VI User Guide...
  • Page 34: Figure 10. Lifting The Processor Socket Lever

    Figure 12). Note: Do not touch the socket pins; they are very sensitive and easily damaged. Note: Retain the protective socket cover for use when removing a processor that will not be replaced. ® Intel Compute Module MFS5520VI User Guide...
  • Page 35: Figure 12. Removing The Protective Socket Cover

    Figure 13. Removing the Processor Protective Cover 15. Orient the processor with the socket so that the processor cutouts match the two socket pins, and insert the processor into the socket (see Figure 14). ® Intel Compute Module MFS5520VI User Guide...
  • Page 36: Figure 14. Installing The Processor

    19. Orient the heatsink over the processor as shown in Figure 16. The heatsink fins must be positioned as shown to provide correct airflow through the system. Airflow goes from front-to-back of the compute module. ® Intel Compute Module MFS5520VI User Guide...
  • Page 37: Figure 16. Installing The Heatsink

    Repeat steps 21a through 21c by giving each screw two rotations each time until all screws are lightly tightened upto a maximum of 8 inch-lbs torque. AF003122 Figure 16. Installing the Heatsink Reinstalling components 22. Reinstall the processor air duct. ® Intel Compute Module MFS5520VI User Guide...
  • Page 38: Figure 17. Reinstalling Processor Air Duct

    23. Reinstall the top cover. For instructions, see “Installing the Top Cover” on page 24. Reinstall the server compute module in the chassis. For instructions, see “Installing a Compute Module into the Chassis” on page ® Intel Compute Module MFS5520VI User Guide...
  • Page 39: Replacing A Processor

    “Removing a Compute Module from the Chassis” on page Remove the top cover. For instructions, see “Removing the Top Cover” on page Remove the processor air duct (see Figure 18). I/ O AF003080 Figure 18. Removing Processor Air Duct ® Intel Compute Module MFS5520VI User Guide...
  • Page 40: Figure 19. Removing The Heatsink

    Removing the Old Processor Push the lever handle down and away from the socket to release it (see letter “A” in Figure 20). Rotate the lever open all the way (see letter “B” in Figure 20). ® Intel Compute Module MFS5520VI User Guide...
  • Page 41: Figure 20. Lifting Processor Socket Handle

    11. Open the load plate (see letter “B” in Figure 21). AF003096 Figure 21. Opening the Load Plate 12. Remove the processor. Note: Do not touch the socket pins; they are very sensitive and easily damaged. ® Intel Compute Module MFS5520VI User Guide...
  • Page 42: Figure 22. Removing The Processor

    AF003097 Figure 22. Removing the Processor ® Intel Compute Module MFS5520VI User Guide...
  • Page 43: Figure 23. Removing Protective Shipping Cover

    15. Close the processor load plate (see letter “A” in Figure 25). 16. Close the socket lever completely and ensure that the load plate tab engages under the socket lever when fully closed (see letter “B” in Figure 25). ® Intel Compute Module MFS5520VI User Guide...
  • Page 44: Figure 25. Closing The Load Plate And Socket Lever

    Engage screws at locations 3 and 4 by giving each screw two rotations and then stop. d. Repeat steps 20a through 20c by giving each screw two rotations each time until all screws are lightly tightened upto a maximum of 8 inch-lbs torque. ® Intel Compute Module MFS5520VI User Guide...
  • Page 45: Figure 26. Reinstalling Heatsink

    AF002841 Figure 26. Reinstalling Heatsink ® Intel Compute Module MFS5520VI User Guide...
  • Page 46: Figure 27. Reinstalling Processor Air Duct

    22. Reinstall the top cover. For instructions, see “Installing the Top Cover” on page 23. Reinstall the server compute module in the chassis. For instructions, see “Installing a Compute Module into the Chassis” on page ® Intel Compute Module MFS5520VI User Guide...
  • Page 47: Installing And Removing Memory Modules

    DIMMs must be populated in pairs across consecutive channels starting with the lowest numbered slot in each channel. Memory Map and Population Rules ® The nomenclature for DIMM sockets implemented on the Intel Compute Module MFS5520VI is detailed in the following figure. Processor Socket 1...
  • Page 48 ® ® • The memory slots of each DDR3 channel from the Intel Xeon processor 5500 ® ® series or Intel Xeon Processor 5600 series are populated on a farthest first fashion. This holds true even for the Independent Channel mode. Therefore, if A1 is empty, A2 cannot be populated or used.
  • Page 49: Installing Dimms

    DIMM slots are numbered as follows: DIMM B2 DIMM B1 DIMM A1 DIMM C2 DIMM A2 DIMM C1 DIMM F1 DIMM D2 DIMM F2 DIMM D1 DIMM E1 DIMM E2 AF003098 Figure 29. DIMM Slot Order ® Intel Compute Module MFS5520VI User Guide...
  • Page 50: Figure 30. Removing Processor Air Duct

    10. Insert the bottom edge of the DIMM into the socket. 11. When the DIMM is correctly positioned, push down on the top edge of the DIMM until the retaining clips snap into place (see letter “C” in Figure 31). ® Intel Compute Module MFS5520VI User Guide...
  • Page 51: Figure 31. Installing Dimms

    DIMM A1 DIMM C2 DIMM A2 DIMM C1 DIMM F1 DIMM D2 DIMM F2 DIMM D1 DIMM E1 DIMM E2 AF003099 Figure 31. Installing DIMMs 13. Reinstall the processor air duct (see Figure 32). ® Intel Compute Module MFS5520VI User Guide...
  • Page 52: Removing Dimms

    If the compute module is installed in a chassis, remove it. For instructions, see “Removing a Compute Module from the Chassis” on page Remove the top cover. For instructions, see “Removing the Top Cover” on page ® Intel Compute Module MFS5520VI User Guide...
  • Page 53: Figure 33. Removing Processor Air Duct

    6. Gently open the retaining clips at each end of the socket (see letter “A” in Figure 34). This slightly lifts the DIMM from its socket. 7. Holding the DIMM by the edges, remove it from the socket (see letter “B” in Figure 34). ® Intel Compute Module MFS5520VI User Guide...
  • Page 54: Figure 34. Removing Dimms

    Important: Store the removed DIMM in an anti-static package. DIMM B2 DIMM B1 DIMM A1 DIMM C2 DIMM A2 DIMM C1 DIMM F1 DIMM D2 DIMM F2 DIMM D1 DIMM E1 DIMM E2 AF003100 Figure 34. Removing DIMMs ® Intel Compute Module MFS5520VI User Guide...
  • Page 55: Figure 35. Reinstalling Processor Air Duct

    Reinstall the top cover. For instructions, see “Installing the Top Cover” on page 10. Reinstall the server compute module in the chassis. For instructions, see “Installing a Compute Module into the Chassis” on page ® Intel Compute Module MFS5520VI User Guide...
  • Page 56: Installing And Removing Mezzanine Card

    “Removing the Top Cover” on page Holding the mezzanine card by its edges, remove it from the packaging. Remove the protective connector cover from the mezzanine card. Locate the mezzanine card connectors on the server board. ® Intel Compute Module MFS5520VI User Guide...
  • Page 57: Figure 36. Removing Screws From Server Board

    Using a Phillips* screwdriver, remove four screws from the server board (see Figure 36). I/ O AF003090 Figure 36. Removing Screws from Server Board ® Intel Compute Module MFS5520VI User Guide...
  • Page 58: Figure 37. Installing Standoffs For Mezzanine Card

    8. Using a 1/4-inch nut driver, install the four standoffs that shipped with the mezzanine card (see Figure 37). I/ O AF003082 Figure 37. Installing Standoffs for Mezzanine Card ® Intel Compute Module MFS5520VI User Guide...
  • Page 59: Figure 38. Installing And Securing The Mezzanine Card

    12. Reinstall the top cover. For instructions, see “Installing the Top Cover” on page 13. Reinstall the server compute module in the chassis. For instructions, see “Installing a Compute Module into the Chassis” on page ® Intel Compute Module MFS5520VI User Guide...
  • Page 60: Removing A Mezzanine Card

    Locate the mezzanine card. 5. Using a Phillips* screwdriver, remove the four screws securing the mezzanine card to the standoffs (see Figure 39). I/ O AF003091 Figure 39. Removing Screws from Mezzanine Card ® Intel Compute Module MFS5520VI User Guide...
  • Page 61: Figure 40. Removing Mezzanine Card

    6. Holding the mezzanine card by its edges, gently lift it from the connectors and store it in an anti-static package (see Figure 40). I/ O AF003092 Figure 40. Removing Mezzanine Card ® Intel Compute Module MFS5520VI User Guide...
  • Page 62: Figure 41. Removing Standoffs

    Reinstall the top cover. For instructions, see “Installing the Top Cover” on page 10. Reinstall the server compute module in the chassis. For instructions, see “Installing a Compute Module into the Chassis” on page ® Intel Compute Module MFS5520VI User Guide...
  • Page 63: Replacing The Cmos Battery

    If the compute module is installed in a chassis, remove it. For instructions, see “Removing a Compute Module from the Chassis” on page Remove the top cover. For instructions, see “Removing the Top Cover” on page ® Intel Compute Module MFS5520VI User Guide...
  • Page 64: Figure 42. Cmos Battery Location

    Reinstall the top cover. For instructions, see “Installing the Top Cover” on page 10. Reinstall the server compute module in the chassis. For instructions, see “Installing a Compute Module into the Chassis” on page 14 ® Intel Compute Module MFS5520VI User Guide...
  • Page 65 11. Run the BIOS setup to restore the configuration settings to the RTC. ® Intel Compute Module MFS5520VI User Guide...
  • Page 66 ® Intel Compute Module MFS5520VI User Guide...
  • Page 67: Bios Setup Utility

    Server Control UI. b. Or, connect a keyboard and monitor directly to the target compute module. ® 2. Power on or reboot the compute module using either the Intel Modular Server Control UI or by manually pressing the compute module power button.
  • Page 68: Figure 43. Setup Layout

    Keyboard Command Bar The Keyboard Command Bar is located at the bottom right of the screen and continuously displays help for keyboard special keys and navigation keys. Figure 43. Setup Layout ® Intel Compute Module MFS5520VI User Guide...
  • Page 69: Table 4. Keyboard Commands

    If “No” is selected and the Enter key is pressed, or if the ESC key is pressed, the user is returned to where they were before F9 was pressed without affecting any existing field values. ® Intel Compute Module MFS5520VI User Guide...
  • Page 70 Setup is exited. If “No” is selected and the Enter key is pressed, or the ESC key is pressed, the user is returned to where they were before F10 was pressed without affecting any existing values. ® Intel Compute Module MFS5520VI User Guide...
  • Page 71: Setup Menus

    BIOS Setup screen. The bold text in this document is to serve as a reference point. • Changes (except Date and Time) made in the Setup Utility are not applied until they have been saved and the compute module has been rebooted. ® Intel Compute Module MFS5520VI User Guide...
  • Page 72: Main

    The Main screen is the first screen that appears when the BIOS Setup is entered, unless an error has occurred. If an error has occurred, the Error Manager screen is displayed instead. Figure 44. Main Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 73: Table 5. Main Screen Details

    System Time has configurable fields for Hours, Minutes, and Seconds. Hours are in 24-hour format. Use the [Enter] or [Tab] key to select the next field. Use the [+] or [-] key to modify the selected field. ® Intel Compute Module MFS5520VI User Guide...
  • Page 74: Advanced

    Advanced menu. Processor Configuration The Processor Configuration screen allows you to view detailed information for each installed processor as well as configure several processor options. ® Intel Compute Module MFS5520VI User Guide...
  • Page 75: Figure 46. Advanced Processor Configuration Screen

    To access this screen from the Main screen, press the right arrow key until the Advanced menu option is selected then select Processor Configuration from the Advanced menu.. Figure 46. Advanced Processor Configuration Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 76: Table 6. Advanced Processor Configuration Details

    Disabled Technology below power, temperature, and current specifications. ® Enhanced Intel Enabled Enhanced Intel SpeedStep Technology allows the ® SpeedStep system to dynamically adjust processor voltage and Disabled chnology core frequency, which can result in decreased average power consumption and decreased average heat production.
  • Page 77: Memory Configuration

    Virtualization Technology allows a platform to Virtualization run multiple operating systems and applications in Disabled Technology independent partitions. ® ® Intel Enabled Enable/Disable Intel Virtualization Technology for Virtualization Directed I/O. Disabled Technology for Directed I/O Hardware Enabled Hardware Prefetcher is a speculative prefetch unit Prefetcher within the processor(s).
  • Page 78: Figure 47. Advanced Memory Configuration Screen

    Figure 47. Advanced Memory Configuration Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 79: Table 7. Advanced Memory Configuration Screen Details

    The Memory RAS (Reliability, Availability, and Serviceability) and Performance Configuration screen displays current memory performance information and settings. Under capabilities, this screen displays whether memory mirroring is possible (Yes / No) and allows the user to enable or disable NUMA optimization. ® Intel Compute Module MFS5520VI User Guide...
  • Page 80: Figure 48. Memory Ras And Performance Configuration Screen

    SAS controller. By default, the SAS controller is set to [Enabled]. This enables the compute module to access the system storage. If the SAS controller is set to [Disabled], the compute module will not be able to access storage. ® Intel Compute Module MFS5520VI User Guide...
  • Page 81: Figure 49. Advanced Mass Storage Controller Configuration Screen

    Debug Serial Port, the user can modify the following settings: • Enable or Disable the serial port (Network Serial Console or Debug Serial Port) • Select the base I/O address • Select the interrupt request (IRQ) line ® Intel Compute Module MFS5520VI User Guide...
  • Page 82: Figure 50. Advanced Serial Port Configuration Screen

    Serial Port Configuration is highlighted and press <Enter>.. Figure 50. Advanced Serial Port Configuration Screen USB Configuration The USB Configuration screen allows you to configure the USB controller options. ® Intel Compute Module MFS5520VI User Guide...
  • Page 83: Figure 51. Advanced Usb Configuration Screen

    To access this screen from the Main screen press the right arrow key until the Advanced menu is selected then press the down or up arrow key until USB Configuration is highlighted and press <Enter>. Figure 51. Advanced USB Configuration Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 84: Table 8. Usb Configuration Details

    USB 2.0 mode. Disabled Contact your OS vendor regarding OS support of this feature. PCI Configuration The PCI Configuration Screen allows you to configure the memory usage and on-board NIC controllers. ® Intel Compute Module MFS5520VI User Guide...
  • Page 85: Figure 52. Advanced Pci Configuration Screen

    To access this screen from the Main screen press the right arrow key until the Advanced menu is selected then press the down or up arrow key to highlight PCI Configuration and press <Enter>.. Figure 52. Advanced PCI Configuration Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 86: Table 9. Advanced Pci Configuration Details

    System Acoustics and Performance Configuration The System Acoustic and Performance Configuration screen allows the user to configure the DIMM thermal management option for the Intel® Compute Module MFS5520VI. Specifically the System Acoustics and Performance Configuration screen allows the user to set the DIMM throttling mode to Auto (default), Static Closed Loop Thermal Throttling (CLTT) or Static Open Loop Thermal Throttling (OLTT).
  • Page 87: Security

    Figure 53. Advanced System Acoustics and Performance Configuration Screen Security The Security screen allows you to enable and set the user and administrative passwords. This screen also allows you to enable and activate the Trusted Platform Module (TPM) security settings. ® Intel Compute Module MFS5520VI User Guide...
  • Page 88: Figure 54. Security Screen

    To access this screen from the Main screen, press the right arrow key until the Security menu option is selected. Figure 54. Security Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 89: Table 10. Security Screen Details

    TPM, except that setting of the Deactivated TPM ownership is allowed if it is not present already. An enabled and activated TPM executes all commands that use the TPM functions and TPM security operations are also available. ® Intel Compute Module MFS5520VI User Guide...
  • Page 90: Server Management

    This screen also provides an access point to the screens for configuring console redirection and displaying system information. To access this screen from the Main screen, press the right arrow key until the Server Management menu option is selected. Figure 55. Server Management Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 91: Table 11. Server Management Screen Details

    If the OS does not complete booting Disabled Timer before the timer expires, the BMC resets the compute module and an error is logged. ® Requires OS support or Intel Management Software. O/S Boot Power Off If the OS watchdog timer is enabled, this is the...
  • Page 92: Console Redirection

    Baud Rate, Terminal Type, and Legacy OS Redirection are displayed on the Console Redirection Setup screen. Enabling console redirection sets the BIOS option Quiet Boot to [Disable]. The BIOS logo screen is not displayed during POST while console redirection is enabled. ® Intel Compute Module MFS5520VI User Guide...
  • Page 93: Figure 56. Server Management - Console Redirection Enabled Screen

    To access this screen from the Main screen, press the right arrow key until the Server Management menu option is selected then select Console Redirection. Figure 56. Server Management - Console Redirection Enabled Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 94: Table 12. Server Management Console Redirection Details

    System Information The System Information screen provides the following information for the compute module: • Board part number • Board serial number • Asset tag • BMC firmware revision • SDR revision • UUID ® Intel Compute Module MFS5520VI User Guide...
  • Page 95: Boot Options

    The Boot Options screen displays any bootable media encountered during POST, and allows you to configure the desired order in which boot devices are to be tried. The first boot device in the specified boot order will be used to boot the compute module. ® Intel Compute Module MFS5520VI User Guide...
  • Page 96: Figure 58. Boot Options Screen

    To access this screen from the Main screen, press the right arrow key until the Boot Options menu option is selected. Figure 58. Boot Options Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 97: Table 13. Boot Options Details

    If enabled, newly discovered USB devices will be Priority put to the top of their boot device category. Disabled If disabled, newly discovered USB devices will be put at the bottom of their boot device catergory. ® Intel Compute Module MFS5520VI User Guide...
  • Page 98: Boot Manager

    To access this screen from the Main screen, press the right arrow key until the Boot Manager menu option is selected. Figure 59. Boot Manager Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 99: Error Manager

    The Error Manager screen displays any errors encountered during POST. To access this screen from the Main screen, press the right arrow key until the Error Manager menu option is selected. Figure 60. Error Manager Screen ® Intel Compute Module MFS5520VI User Guide...
  • Page 100: Exit

    After saving changes and exiting the BIOS Setup Utility the compute module will be rebooted if required. The <F10> key can also be used. ® Intel Compute Module MFS5520VI User Guide...
  • Page 101 Load User Default Values If Load User Default Values is selected, the BIOS settings are restored to a previously saved user-defined set of default values. ® Intel Compute Module MFS5520VI User Guide...
  • Page 102: Upgrading The Bios

    Compute Module MFS5520VI BIOS and firmware update is performed as a ® part of the Intel Modular Server System MFSYS25/MFSYS35 Unified Firmware Update process. The Unified Firmware Update process is started from within the Intel® Modular Server Control UI. Refer to the Intel® Modular Server System MFSYS25/MFSYS35 ®...
  • Page 103: Clearing The Password

    J9A3. 1. Power down the compute module. ® 2. Remove the compute module from the Intel Modular Server System. 3. Remove the compute module cover. For instructions, refer to Section , “Removing the Top Cover”...
  • Page 104: Figure 62. Password Clear Jumper

    PASSWORD Clear Clear Default Password J9A3 AF003231 Figure 62. Password Clear Jumper ® Intel Compute Module MFS5520VI User Guide...
  • Page 105 5. Replace the compute module cover. ® 6. Insert the compute module into the Intel Modular Server System. 7. Power on the compute module and then press <F2> to enter the BIOS Setup Utility menu to check if the password is cleared.
  • Page 106: Clearing The Cmos

    RAM. The CMOS Clear jumper is located on jumper block J9A4. 1. Power down the compute module. 2. Remove the compute module from the Intel® Modular Server System. 3. Remove the compute module cover. For instructions, refer to Section , “Removing the...
  • Page 107: Bios Recovery Procedure

    6. Move the jumper back to default position, covering pins 1 and 2. 7. Replace the compute module cover ® 8. Insert the compute module into the Intel Modular Server System. 9. Power on the compute module. The CMOS is now cleared and you can reset it by going into the BIOS setup.
  • Page 108: Figure 64. Bios Recover Jumper

    Caution: DO NOT interrupt the BIOS POST during the first boot after recovery! BIOS Recover Boot from Emergency BIOS Image Default J9B9 AF003230 Figure 64. BIOS Recover Jumper ® Intel Compute Module MFS5520VI User Guide...
  • Page 109: Troubleshooting

    • Are all device drivers properly installed? ® • Are all installed components and the installed operating system listed in the Intel ® Modular Server System MFSYS25/MFSYS35 and Intel Compute Module MFS5000SI/MFS5520VI Tested Hardware and Operating System List? ®...
  • Page 110: Hardware Diagnostic Testing

    Characters on the screen appear distorted or incorrect • No available storage • Network problems Try the solutions in the order given. If you cannot correct the problem, contact your service representative or authorized dealer for additional help. ® Intel Compute Module MFS5520VI User Guide...
  • Page 111: Power Led Does Not Light

    Is the compute module operating normally? If so, the power LED might be defective. ® • Is the chassis power LED lit? If not, refer to the troubleshooting section of the Intel Modular Server System MFSYS25/MFSYS35 User Guide for additional guidance. •...
  • Page 112: Cannot Connect To A Compute Module

    • Verify in the Intel® Modular Server Control GUI that virtual drive(s) are assigned to the compute module. • Ensure drive(s) assigned to the compute module are installed and operating properly. ® • Make sure the installed drives are validated for use with the Intel Modular Server ®...
  • Page 113: Problems With Application Software That Previously Functioned Properly

    Devices are Not Recognized within the Operating System Operating systems include a limited set of device drivers by default. Ensure that you install all necessary drivers at the time you install the operating system. ® Intel Compute Module MFS5520VI User Guide...
  • Page 114 ® Intel Compute Module MFS5520VI User Guide...
  • Page 115: A Getting Help

    Telephone All calls are billed US $25.00 per incident, levied in local currency at the applicable credit card exchange rate plus applicable taxes. (Intel reserves the right to change the pricing for telephone support at any time without notice). For an updated support contact list, see http://www.intel.com/support/9089.htm/...
  • Page 116: In Asia-Pacific Region

    Easter Island....Contact AT&T USA at 800 800 311. Once connected, dial 800 843 4481 Mainland and Juan .. Contact AT&T USA at 800 225 288. Once connected, dial 800 843 4481 ® Intel Compute Module MFS5520VI User Guide...
  • Page 117 Panama..Contact AT&T USA at 00 800 001 0109. Once connected, dial 800 843 4481 Paraguay ... 001 916 377 0114 Peru ... 001 916 377 0114 Uruguay..001 916 377 0114 Venezuela... Contact AT&T USA at 0 800 2255 288. Once connected, dial 800 843 4481 ® Intel Compute Module MFS5520VI User Guide...
  • Page 118 ® Intel Compute Module MFS5520VI User Guide...
  • Page 119: B Product Regulatory Requirements

    Server System MFSYS25/MFSYS35, which requires meeting all applicable system component environmental and ecology requirements. For a complete listing of all system ® and component environment and ecology requirements and markings, refer to the Intel Modular Server System MFSYS25/MFSYS35 User Guide. Product Environmental/Ecology Markings ®...
  • Page 120 ® Intel Compute Module MFS5520VI User Guide...
  • Page 121: C Safety Information

    English Server Safety Information ® ® This document applies to Intel server boards, Intel server chassis and installed peripherals. To reduce the risk of bodily injury, electrical shock, fire, and equipment damage, read this document and observe all warnings and precautions in this guide before ®...
  • Page 122: Intended Application Uses

    AC power, 5V standby power is active whenever the compute module is plugged in. To remove power from compute module, you must unplug the AC power cord from the wall outlet. Your compute module may use more than one AC power ® Intel Compute Module MFS5520VI User Guide...
  • Page 123: Access Warnings

    Do not attempt to modify or use an AC power cord if it is not the exact type required. A separate AC cord is required for each compute module power supply. ® Some power supplies in Intel servers use Neutral Pole Fusing. To avoid risk of shock use caution when working with power supplies that use Neutral Pole Fusing.
  • Page 124: Electrostatic Discharge (Esd)

    Laser Peripherals or Devices Caution: To avoid risk of radiation exposure and/or personal injury: • Do not open the enclosure of any laser peripheral or device • Laser peripherals or devices have are not user serviceable ® Intel Compute Module MFS5520VI User Guide...
  • Page 125: Deutsch

    Return to manufacturer for servicing Deutsch Sicherheitshinweise für den Server ® ® Das vorliegende Dokument bezieht sich auf Intel Serverplatinen, Intel Servergehäuse (Standfuß und Rack) sowie installierte Peripheriegeräte. Es enthält Warnungen und Vorsichtsmaßnahmen zur Vermeidung von Gefahren durch Verletzung, Stromschlag, Feuer und Beschädigungen von Geräten.
  • Page 126: Zielbenutzer Der Anwendung

    Verwenden Sie mechanische oder andere geeignete Hilfsmittel zum Transportieren oder Anheben von Geräten. • Entfernen Sie alle Komponenten, die sich leicht abnehmen lassen, um das Gewicht zu reduzieren und die Handhabung zu erleichtern. ® Intel Compute Module MFS5520VI User Guide...
  • Page 127: Warnungen Zu Netzspannung Und Elektrizität

    Typ entspricht. Jedes Netzteil im System muß über ein eigenes Netzkabel angeschlossen werden. Einige Netzteile von Intel Servern verwenden Nullleitersicherungen. Vorsicht ist geboten im Umgang mit Netzteilen, welche Nullleitersicherungen verwenden, um das Risiko eines elektrischen Schlages zu vermeiden Das Netzteil in diesem Produkt enthält keine Teile, die vom Benutzer gewartet werden...
  • Page 128: Elektrostatische Entladungen (Esd)

    Ausbau aus dem Server mit der Bauelementseite nach oben auf eine geerdete, statisch entladene Unterlage.Verwenden Sie dazu, sofern verfügbar, eine leitfahige Schaumstoffunterlage, aber niche die Schutzhülle der Platine. Ziehen Sie die Platine nicht über eine Fläche. ® Intel Compute Module MFS5520VI User Guide...
  • Page 129: Andere Gefahren

    • Öffnen Sie keinesfalls das Gehäuse von Laser-Peripheriegeräten oder Laser- Komponenten. • Laser-Peripheriegeräte oder -Komponenten besitzen keine für den Benutzer wartungsbedürftigen Teile. • Schicken Sie das Gerät für Wartungsarbeiten an den Hersteller zurück. ® Intel Compute Module MFS5520VI User Guide...
  • Page 130: Français

    ® d’installer ou de mettre à jour votre produit serveur Intel En cas de conflit entre les informations fournies dans ce document et celles livrées avec le produit ou publiées sur le site Web pour un produit particulier, la documentation du produit prime.
  • Page 131: Domaines D'utilisation Prévus

    • Utilisez l’assistance mécanique ou toute autre assistance appropriée lorsque vous déplacez et soulevez le matériel. • Pour réduire le poids en vue de faciliter la manipulation, retirez tout composant amovible. ® Intel Compute Module MFS5520VI User Guide...
  • Page 132: Alimentation Et Avertissements En Matière D'électricité

    Vous devez les débrancher avant d’ouvrir le châssis, d’ajouter ou de supprimer un composant non connectable à chaud. Les alimentations de certains serveurs Intel sont munies de doubles fusibles pôle/neutre: veuillez observer les précautions d'usage afin d'éviter tout risque d'eléctrocution.
  • Page 133: Décharges Électrostatiques (Esd)

    Afin de permettre une ventilation et un refroidissement corrects, ne mettez le système en marche que lorsque les panneaux du châssis sont en place. L’utilisation du système sans les panneaux peut endommager les composants système. Pour installer les panneaux : ® Intel Compute Module MFS5520VI User Guide...
  • Page 134: Español

    Retournez-les au fabricant en cas de problème. Español Información de seguridad del servidor ® Este documento se aplica a las tarjetas de servidor de Intel , los gabinetes de servidor de ® Intel (montaje en rack y en pedestal) y los dispositivos periféricos. Para reducir el riesgo de daños corporales, descargas eléctricas, fuego y en el equipo, lea este documento y...
  • Page 135: Aplicaciones Y Usos Previstos

    Provista de una toma de corriente alterna correctamente conectada a tierra. • Provista de espacio suficiente para acceder a los cables de la fuente de alimentación ya que constituyen la desconexión principal de la alimentación. ® Intel Compute Module MFS5520VI User Guide...
  • Page 136: Manipulación Del Equipo

    CA estén desenchufado antes de abrir le gabinete, agregar o extraer cualquier componente que no es de conexión en funcionamiento. Algunas fuentes de alimentación de electricidad de los servidores de Intel utilizan el polo neutral del fuselaje. Para evitar riesgos de choques eléctricos use precauciones al trabajar con las fuentes de alimentación que utilizan el polo neutral de fuselaje.
  • Page 137: Descarga Electrostática (Esd)

    Sujételas sólo por los bordes. Una vez extraída la tarjeta de su envoltorio de protección o del servidor, colóquela con el lado de los componentes hacia arriba sobre una superficie con toma de tierra y sin carga estática. Utilice una ® Intel Compute Module MFS5520VI User Guide...
  • Page 138: Otros Peligros

    Precaución: Para evitar el riesgo de la exposición a radiaciones o de daños personales: • No abra la caja de ningún periférico o dispositivo láser • Los periféricos o dispositivos láser no pueden ser reparados por el usuario • Haga que el fabricante los repare. ® Intel Compute Module MFS5520VI User Guide...
  • Page 139 简体中文 服务器安全信息 本文档适用于 Intel® 服务器主板、Intel® 服务器机箱(基座和机架固定件)和已安装的外设。为减少人身伤害、电击、火灾 以及设备毁坏的危险,请在安装或维护 Intel® 服务器产品之前阅读本文档并遵循本指南中的所有警告和预防措施。 如果本文档中的信息与特定产品的随附信息或 Web 站点信息之间存在不一致,请以产品文档为准。 服务器须由合格的技术人员进行集成和维护。 必须遵守本指南的规定和服务器手册的装配指导,以确保符合现有的产品认证和审 批。仅使用本指南中描述和规定的指定组件。使用其他产品 / 组件将使产品的 UL 认证和其他管理审批无效,并可能导致产品不符合销售地的产品法规。 安全警告与注意事项 为避免人身伤害与财产损失,安装本产品之前,请阅读以下所有安全指导和信息。 下面所列的安全符号可能在整个文档中使用并可能标注于产品和 / 或产品包装之上。 注意 表示如果无视此“? ? ? 项”? ? ? ? ? ? ? 轻微人身伤害或财产损失的危险。 警告 表示如果无视此“? ? ”? ? ? ? ? ? ? 严重人身伤害的危险。...
  • Page 140 • 远离振动源或物理震动。 • 与电气设备产生的强大电磁场隔离。 • 在易受闪电袭击的地区,我们建议将系统插入电涌抑制器并在闪电期间断开通信 线路与调制解调器之间的连接。 • 提供正确接地的墙壁插座。 • 提供足够的空间,以便拿取电源供应线,因为这是本产品的主要电源断开器。 设备操作规范 减少人身伤害或设备受损的危险: • 移举设备时遵守当地的职业健康与安全要求。 • 借助机械手段或其他合适的手段移举设备。 • 拆除一切易分离组件,以降低重量并方便操作。 电源与电气警告 注意事项 电源按钮(如待机电源标记所示)并不能完全关闭系统的交流电源,只要系统已接 通电源,就存在 5V 待机电源。要从系统切断电源,须从墙壁电源插座中拔下交流电线。您的系统可能 不止使用一根交流电线。请确保所有的交流电线都已拔下。打开机箱或增加或去除 任何热插拔组件之前,确保交流电线已拔下。 若非所需的确切类型,请勿尝试修改或使用交流电线。系统的每个电源供应设备都 需要一根单独的交流电线。 本产品的电源供应设备包含非用户维修部件。请勿打开电源供应设备。电源供应设 备包含非常危险的电压级、电流级和能量级。请与生产商联系维修事宜。 替换热插拔电源供应设备时,请先拔下需替换的电源供应设备上的电源线,再将其 从服务器上移除。 ® Intel Compute Module MFS5520VI User Guide...
  • Page 141 ® Intel Compute Module MFS5520VI User Guide...
  • Page 142 ® Intel Compute Module MFS5520VI User Guide...
  • Page 143 ® Intel Compute Module MFS5520VI User Guide...
  • Page 144 ® Intel Compute Module MFS5520VI User Guide...
  • Page 145: D Installation/Assembly Safety Instructions

    To do this: 1. Unlock and remove the padlock from the back of the system if a padlock has been installed. 2. Remove and save all screws from the covers. 3. Remove the cover(s). ® Intel Compute Module MFS5520VI User Guide...
  • Page 146 • Provided with a properly grounded wall outlet. • Provided with sufficient space to access the power supply cord(s), because they serve as the product's main power disconnect. ® Intel Compute Module MFS5520VI User Guide...
  • Page 147: Deutsch

    Anschlußkabel von den I/O Anschlüssen oder Ports ab. 5. Tragen Sie ein geerdetes Antistatik Gelenkband, um elektrostatische Ladungen (ESD) über blanke Metallstellen bei der Handhabung der Komponenten zu vermeiden. 6. Schalten Sie das System niemals ohne ordnungsgemäß montiertes Gehäuse ein. ® Intel Compute Module MFS5520VI User Guide...
  • Page 148 Schutzhandschuhe tragen. Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend. ® Intel Compute Module MFS5520VI User Guide...
  • Page 149 Telekommunikationsleitungen mit dem Modem bestehen; • "mit einer geerdeten Wechselstromsteckdose ausgerüstet sein; • "über ausreichend Platz verfügen, um Zugang zu den Netzkabeln zu gewährleisten, da der Stromanschluß des Produkts hauptsächlich über die Kabel unterbrochen wird ® Intel Compute Module MFS5520VI User Guide...
  • Page 150: Français

    Procédez comme suit: 1. Si un cadenas a été installé sur à l'arrière du système, déverrouillez-le et retirez-le. 2. Retirez toutes les vis des panneaux et mettez-les dans un endroit sûr. 3. Retirez les panneaux. ® Intel Compute Module MFS5520VI User Guide...
  • Page 151 • "Muni d'une prise murale correctement mise à la terre. • "Suffisamment spacieux pour vous permettre d'accéder aux câbles d'alimentation (ceux-ci étant le seul moyen de mettre le système hors tension). ® Intel Compute Module MFS5520VI User Guide...
  • Page 152: Español

    Para ello: 1. Desbloquee y extraiga el bloqueo de seguridad de la parte posterior del sistema, si se ha instalado uno. 2. Extraiga y guarde todos los tornillos de las tapas.Extraiga las tapas. ® Intel Compute Module MFS5520VI User Guide...
  • Page 153 • "Provisto de una toma de tierra correctamente instalada. • "Provisto de espacio suficiente como para acceder a los cables de alimentación, ya que éstos hacen de medio principal de desconexión del sistema. ® Intel Compute Module MFS5520VI User Guide...
  • Page 154: Italiano

    1. Aprire e rimuovere il lucchetto dal retro del sistema qualora ve ne fosse uno installato. 2. Togliere e mettere in un posto sicuro tutte le viti delle coperture. 3. Togliere le coperture. ® Intel Compute Module MFS5520VI User Guide...
  • Page 155 • "Dotata di una presa a muro correttamente installata. • "Dotata di spazio sufficiente ad accedere ai cavi di alimentazione, i quali rappresentano il mezzo principale di scollegamento del sistema. ® Intel Compute Module MFS5520VI User Guide...
  • Page 156 ® Intel Compute Module MFS5520VI User Guide...
