Click Maintain Server.
5.
Click Array Configuration Utility.
6.
ACU opens, scans the local server, and detects controllers. This process can last up to 2 minutes.
When controller detection is complete, the controllers are available on the Controller/Device menu.
Select a controller from the Controller/Device menu.
7.

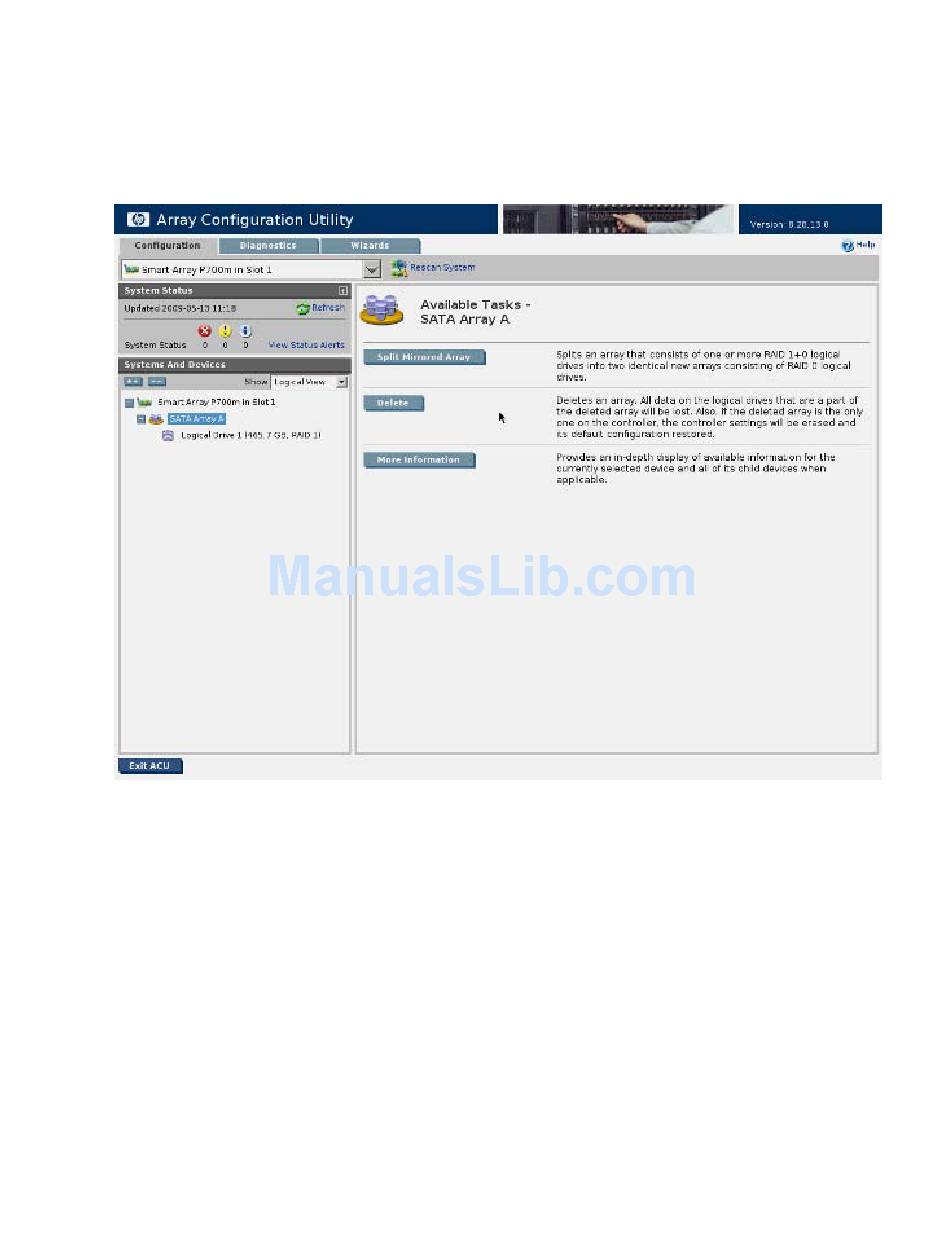

The Configuration screen appears.
Configure the controller:
8.
To configure manually, see "Performing a Configuration task (on page 42)."
o
To configure with a wizard, see "Using Wizards (on page 51)" or "Using Express Configuration
o
(on page 52)."
When prompted, save the configuration.
9.
Do one of the following:
10.
To configure an additional controller, repeat steps 7 through 9.
o
Click Exit ACU.
o
Close SmartStart.
11.
Remove the SmartStart CD from the CD-ROM drive.
12.
Reboot the server.
13.
(Optional) To make newly created logical drives available for data storage, use the operating system
14.
disk management tools to create partitions and format the drives.
